10.4 Inch LQ104V1DG21 Industrial Lcd Display For Industrial Devices
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ104V1DG21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ104V1DG21 | Screen Size: | 10.4 Inches |
|---|---|---|---|
| Pixel Number: | 640(RGB)×480, VGA, 76PPI | Display Area: | 211.2(W)×158.4(H) Mm |
| Outline Size: | 265(W)×195(H) ×11.5(D) Mm | Bezel Opening: | 214.6(W)×162.4(H) Mm |
| Luminance: | 350 Cd/m² (Typ.) | Contrast Ratio: | 300:1 (Typ.) (TM) |
| Highlight: | Industrial Lcd Display 10.4 Inch,LQ104V1DG21 Industrial Lcd Panel |
||
Product Description

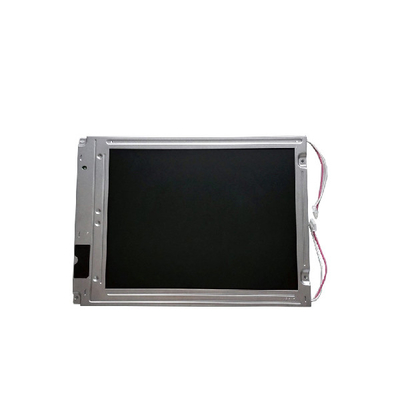

10.4 inch LQ104V1DG21 industrial lcd display for industrial devices
Product details :
LQ104V1DG21 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 265(W)×195(H)×11.5(D) mm, viewing area size of 214.6(W)×162.4(H) mm, with surface treament of Antiglare, Hard coating (3H), Antireflection, net weight of 700g (Max.). As a TN, Normally White, Transmissive LCM product, LQ104V1DG21 can provides 350 cd/m² display brightness 300:1 transimissive contrast ratio, 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20/40 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed. LQ104V1DG21 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 31 pins Connector with power supply voltage of 3.3/5.0V (Typ.)(VCC). It's typical vertical frame rate (Fv) is 60Hz.

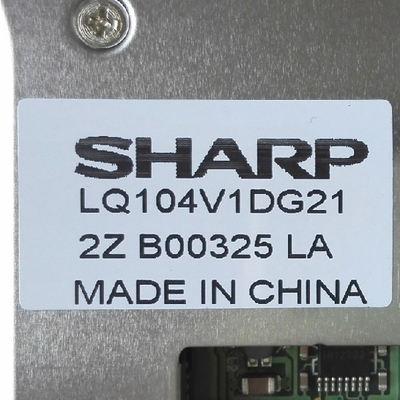

| Sharp LCD SCREEN LQ104V1DG21 | |
| Panel Brand | Sharp |
| Panel Model | LQ104V1DG21 |
| Panel Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA, 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 214.6(W)×162.4(H) mm |
| Outline Size | 265(W)×195(H) ×11.5(D) mm |
| Surface | Antiglare, Hard coating (3H), Antireflection |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Viewing Angle | 70/70/40/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 20/40 (Typ.)(Tr/Td) |
| Display Colors | 262K |
| Lamp Type | 20/40 (Typ.)(Tr/Td) |
| Touch Screen | Without |
| Panel Weight | 700g (Max.) |

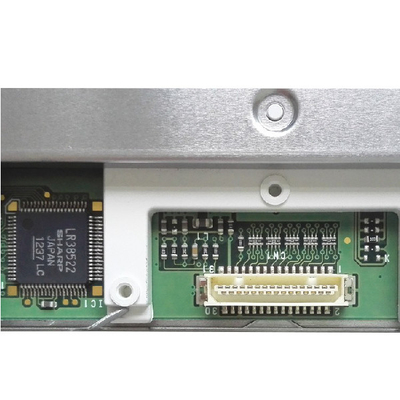

| Signal Interface | Parallel RGB (1 ch, 6-bit) , 31 pins Connector |
| Input Voltage | 3.3/5.0V (Typ.)(VCC) |
| Environment | Operating Temp.: -10 ~ 65 °C ; Storage Temp.: -30 ~ 70 °C |
| 10.4 inch LQ104V1DG21 industrial lcd display for industrial devices | |

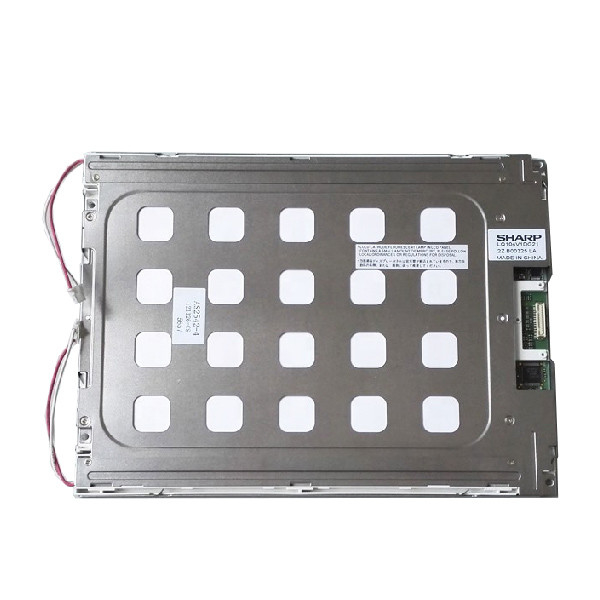

Sharp LQ104V1DG21 Mechanical Details
| Pixel Features : | |
|---|---|
| Mechanical Size : | |
| Outline Features : | |
| Holes & Brackets : | |
| Other Features : |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of LQ104V1DG21?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long will I receive my goods LQ104V1DG21 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can I pay my order of LQ104V1DG21 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
