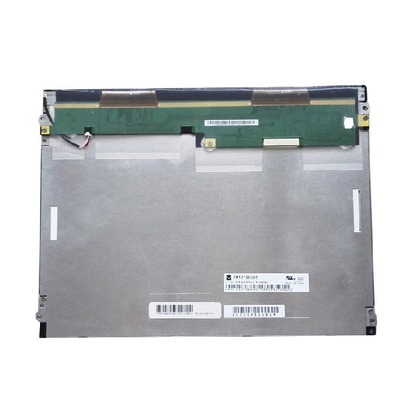

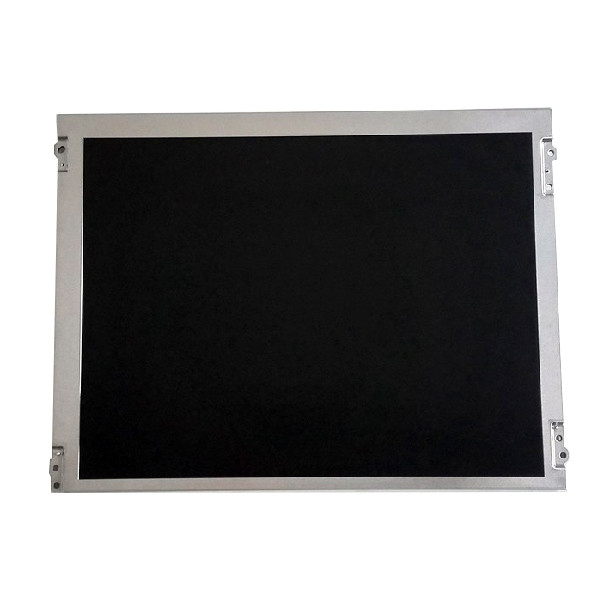

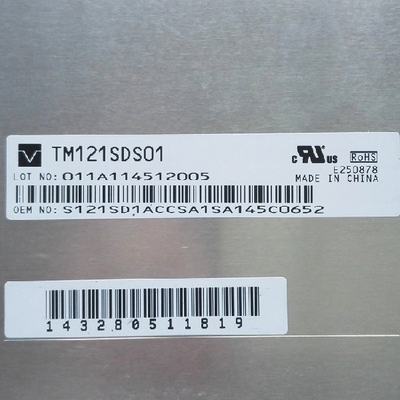

12.1 Inch Industrial LCD Display Screen TM121SDS01 Antiglare Surface
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM121SDS01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM121SDS01 | Screen Size: | 12.1 Inches |
|---|---|---|---|
| Pixel Number: | 800(RGB)×600, SVGA, 82PPI | Display Area: | 246(W)×184.5(H) Mm |
| Outline Size: | 279(W)×209(H) ×9.3(D) Mm | Bezel Opening: | 249.05(W)×188.3(H) Mm |
| Luminance: | 450 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (TM) |
| High Light: | 12.1 inches LCD Display Screen,TM121SDS01 LCD Display Screen |
||
Product Description
The 12.1 inch Industrial LCD Panel Display New original TM121SDS01
Product details :
| TIANMA LCD SCREEN TM121SDS01 | |
| Panel Brand | TIANMA |
| Panel Model | TM121SDS01 |
| Panel Size | 12.1" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×600, SVGA, 82PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 246(W)×184.5(H) mm |
| Bezel Opening | 249.05(W)×188.3(H) mm |
| Outline Size | 279(W)×209(H) ×9.3(D) mm |
| Surface | Antiglare |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 10/25 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.2M 55% NTSC |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | TBD |
| Signal Interface | LVDS (1 ch, 8-bit) , 20 pins FPC |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| The 12.1 inch Industrial LCD Panel Display New original TM121SDS01 | |
