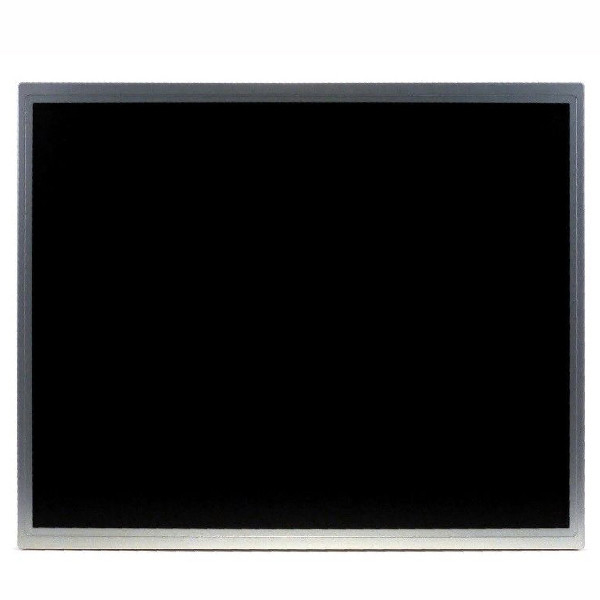

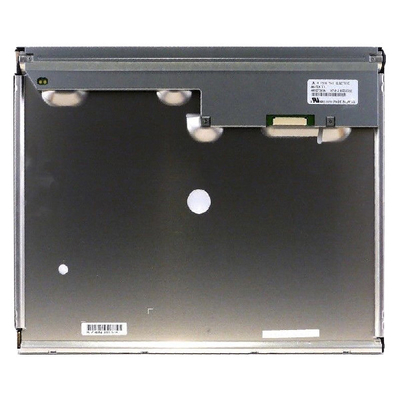

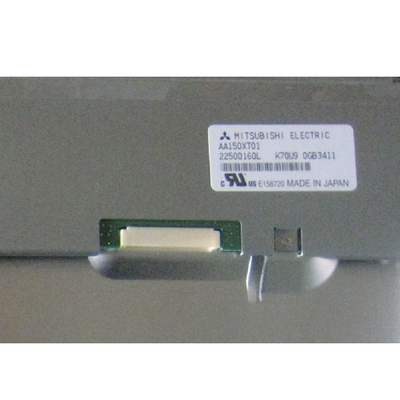

AA150XT01 LCD SCREEN Display Panel 15 Inch
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA150XT01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AA150XT01 | Screen Size: | 15.0 Inches |
|---|---|---|---|
| Pixel Number: | 1024(RGB)×768, XGA, 85PPI | Display Area: | 304.128(W)×228.096(H) Mm |
| Outline Size: | 326(W)×255(H) ×17.1(D) Mm | Bezel Opening: | 308.1(W)×232.1(H) Mm |
| Luminance: | 800 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
| High Light: | 15.0 inches lcd display panel,Lcd Display Screen AA150XT01,800 cd/m2 LCD SCREEN Panel |
||
Product Description
AA150XT01 LCD SCREEN display panel 15 inch
Product details :
| Mitsubishi LCD SCREEN AA150XT01 | |
| Panel Brand | Mitsubishi |
| Panel Model | AA150XT01 |
| Panel Size | 15.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768, XGA, 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 308.1(W)×232.1(H) mm |
| Outline Size | 326(W)×255(H) ×17.1(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 800 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 6/19 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.7M 50% NTSC |
| Lamp Type | 7S4P WLED , 100K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.27Kgs (Typ.) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C |
| AA150XT01 LCD SCREEN display panel 15 inch | |
Mitsubishi AA150XT01 Mechanical Details
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.099×0.297 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297×0.297 (H×V) [85PPI] | |
| Mechanical Size : | Active Area(mm) | 304.128(H) × 228.096(V) | Bezel Area(mm) | 308.1(H) × 232.1(V) |
| Outline Dim.(mm) | 326(H) × 255(V) | Depth(mm) | 12.6/17.1 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 1.27Kgs (Typ.) | Treatment | Antiglare, Hard coating (3H) |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty of AA150XT01 ?
A: 90days warranty .
Q: How can I trace my order of Mitsubishi AA150XT01 ?
A: we will give you tracking number then you can trace your order from website.
Q: If I order AA150XT01 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for AA150XT01 ?
A: Of course!sample order is welcome !
