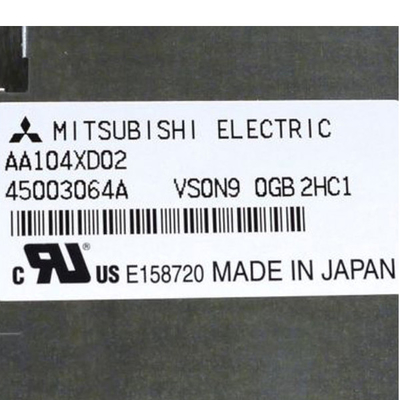

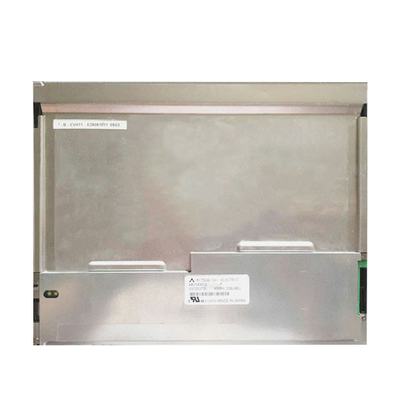

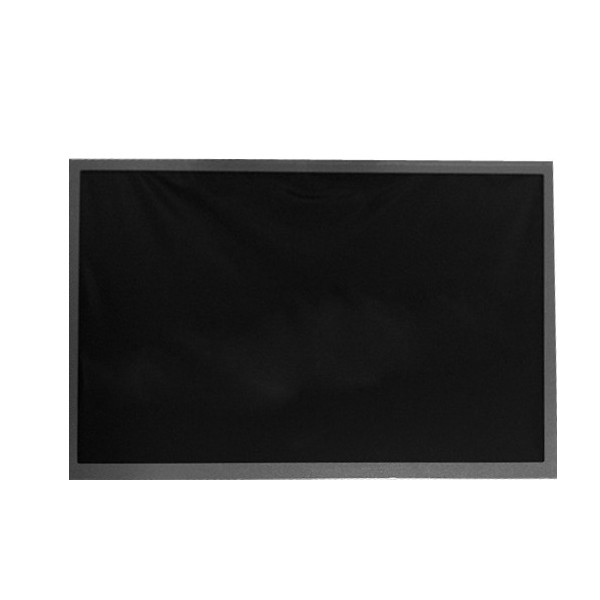

AA104XD02 10.4 Inch Industrial LCD Panel Display 123PPI
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA104XD02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AA104XD02 | Screen Size: | 10.4 Inches |
|---|---|---|---|
| Pixel Number: | 1024(RGB)×768, XGA, 123PPI | Display Area: | 210.4(W)×157.8(H) Mm |
| Outline Size: | 230(W)×180.2(H) ×11(D) Mm | Bezel Opening: | 215.4(W)×161.8(H) Mm |
| Luminance: | 600 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (transmission) |
| High Light: | 600 cd/m2 LCD Panel Display,AA104XD02 1 LCD Panel Display,123PPI Industrial LCD Panel Display |
||
Product Description
AA104XD02 10.4 inch Industrial LCD Panel Display
Product details :
AA104XD02 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 210.4(W)×157.8(H) mm, outline size of 230(W)×180.2(H)×11(D) mm, viewing area size of 215.4(W)×161.8(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 520g (Typ.). As a TN, Normally White, Transmissive LCM product, AA104XD02 can provides 600 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/65/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 100K hours, external backlight driver is additionally needed. AA104XD02 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
| Mitsubishi LCD SCREEN AA104XD02 | |
| Panel Brand | Mitsubishi |
| Panel Model | AA104XD02 |
| Panel Size | 10.4" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768, XGA, 123PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 210.4(W)×157.8(H) mm |
| Bezel Opening | 215.4(W)×161.8(H) mm |
| Outline Size | 230(W)×180.2(H) ×11(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 600 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/65/65 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | Symmetry |
| Response Time | 4/12 (Typ.)(Tr/Tf) |
| Display Colors | 262K/16.7M 40% NTSC |
| Lamp Type | 2 strings WLED , 100K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 520g (Typ.) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| AA104XD02 10.4 inch Industrial LCD Panel Display | |
Mitsubishi AA104XD02 Mechanical Details
| Pixel Features : | |
|---|---|
| Physical Size : | |
| Outline Features : | |
| Fixation : | |
| Other Detail : |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty of AA104XD02 ?
A: 90 days warranty .
Q: How can I trace my order of Mitsubishi AA104XD02 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods AA104XD02 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods AA104XD02 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
