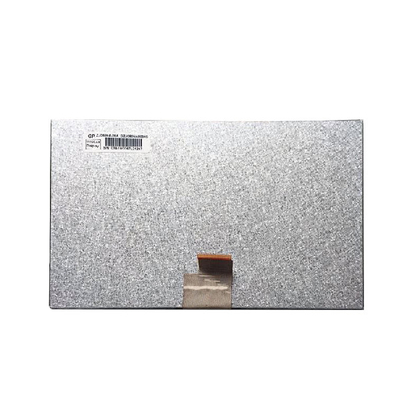

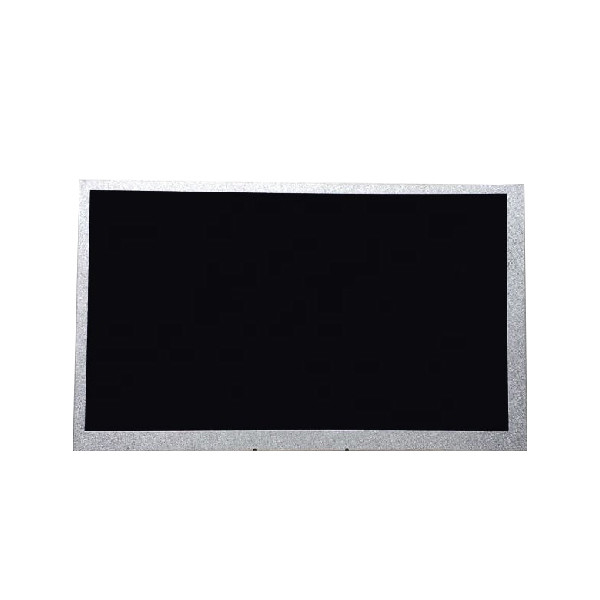

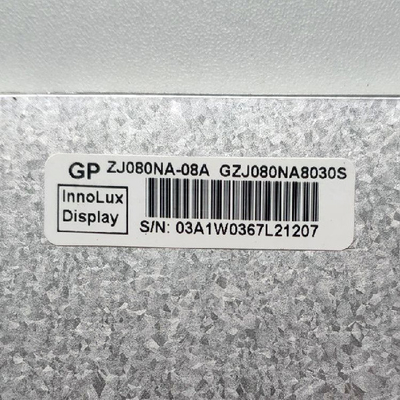

1024x600 8 Inch Original LCD Panel ZJ080NA-08A LCD Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | ZJ080NA-08A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | ZJ080NA-08A | Screen Size: | 8.0 Inches |
|---|---|---|---|
| Pixel Number: | 1024(RGB)×600, WSVGA, 148PPI | Display Area: | 176.64(W)×99.36(H) Mm |
| Outline Size: | 192.8(W)×116.9(H) ×6.7(D) Mm | Bezel Opening: | 179.84(W)×103.16(H) Mm |
| Luminance: | 500 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (transmission) |
| High Light: | ZJ080NA-08A LCD Panel Display,1024x600 8 Inch LCD Screen Panel,148PPI LCD Panel Display |
||
Product Description
1024x600 8 inch Original LCD Panel ZJ080NA-08A LCD Panel Display
Product details :
| Chimei Innolux LCD SCREEN ZJ080NA-08A | |
| Panel Brand | Chimei Innolux |
| Panel Model | ZJ080NA-08A |
| Panel Size | 8.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×600, WSVGA, 148PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 176.64(W)×99.36(H) mm |
| Bezel Opening | 179.84(W)×103.16(H) mm |
| Outline Size | 192.8(W)×116.9(H) ×6.7(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 75/75/70/75 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 10/20 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 70% NTSC |
| Lamp Type | WLED , 20K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 0.23Kgs (Typ.) |
| Signal Interface | LVDS (1 ch, 8-bit) , 40 pins FPC |
| Input Voltage | 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VHL) |
| Environment | Operating Temp.: -20 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| 1024x600 8 inch Original LCD Panel ZJ080NA-08A LCD Panel Display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long will I receive my goods ZJ080NA-08A ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90 days warranty .
Q: Can You declare my order of ZJ080NA-08A to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of ZJ080NA-08A via credit card ?
A: Yes!you can use your credit card through your Paypal account.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
