LCD Screen Display Panel

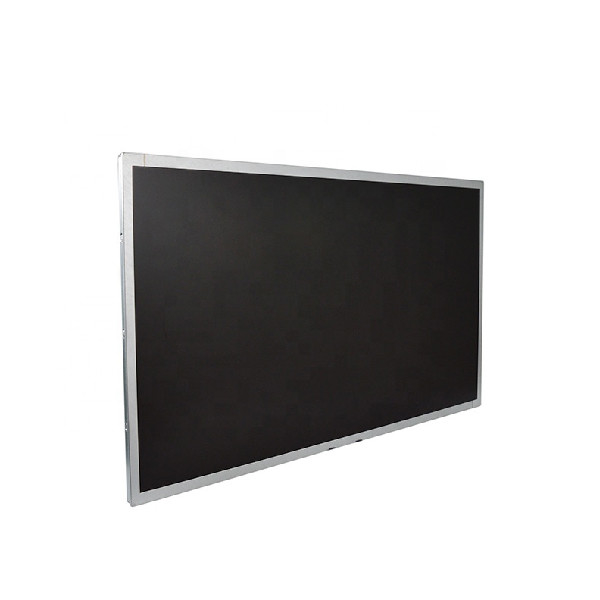

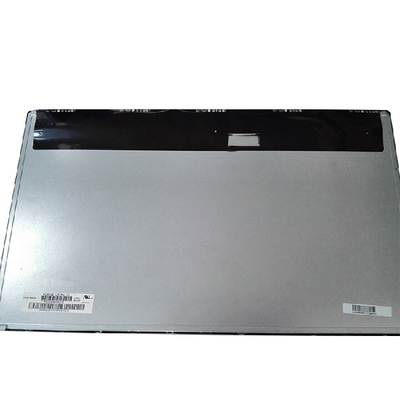

23.6 inch LCD screen module M236HGE-L20 LCD Panel Display

All Category

Floor Standing Digital Signage

23.6 inch LCD screen module M236HGE-L20 LCD Panel Display

Brand Name:	Chimei Innolux
Model Number:	M236HGE-L20
MOQ:	2 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model Name:

M236HGE-L20

Screen Size:

22.0 Inches

Pixel Number:

1680(RGB)×1050 [WSXGA+] 90PPI

Display Area:

521.28(W)×293.22(H) Mm

Outline Size:

544.8(W)×320.5(H) Mm

Bezel Opening:

525.22(W)×297.22(H) Mm

Luminance:

300 Cd/m² (Typ.)

Contrast Ratio:

1000:1 (Typ.) (transmission)

Supply Ability:

100000 Unit/Units per Month

Product Description

23.6 inch LCD screen module M236HGE-L20 LCD Panel Display

Product details :

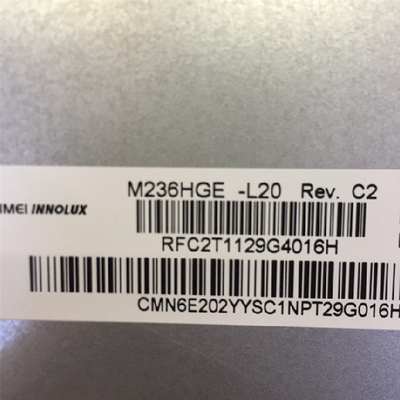

Chimei Innolux LCD SCREEN M236HGE-L20
Panel Brand	Chimei Innolux
Panel Model	M236HGE-L20
Panel Size	23.6"
Panel Type	a-Si TFT-LCD , LCM
Resolution	1920(RGB)×1080, FHD, 93PPI
Pixel Format	RGB Vertical Stripe
Display Area	521.28(W)×293.22(H) mm
Bezel Opening	525.22(W)×297.22(H) mm
Outline Size	544.8(W)×320.5(H) mm
Surface	Antiglare (Haze 25%), Hard coating (3H)
Brightness	300 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	1.5/3.5 (Typ.)(Tr/Td)
Display Colors	16.7M 72% NTSC
Lamp Type	4 strings WLED , 40K hours , Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	2.31/2.41Kgs (Typ./Max.)
Signal Interface	LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
23.6 inch LCD screen module M236HGE-L20 LCD Panel Display

Chimei Innolux M236HGE-L20 Mechanical Details

Pixel Features :	Resolution	1920(RGB)×1080, FHD	Dot Pitch(mm)	0.0905×0.2715 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.2715×0.2715 (H×V) [93PPI]
Mechanical Size :	Active Area(mm)	521.28(H) × 293.22(V)	Bezel Area(mm)	525.22(H) × 297.22(V)
Mechanical Size :	Outline Dim.(mm)	544.8(H) × 320.5(V)	Depth(mm)	11.0±0.5
Outline Features :	Form Style	Flat Rectangle	Outline Shape	Normal bezel
Outline Features :	Aspect Ratio	16:9 (H:V)	Orientation	Landscape type
Mounting :	Side mounting holes (4-M3) on up, down bezel
Other Spec :	Weight	2.31/2.41Kgs (Typ./Max.)	Treatment	Antiglare (Haze 25%), Hard coating (3H)

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

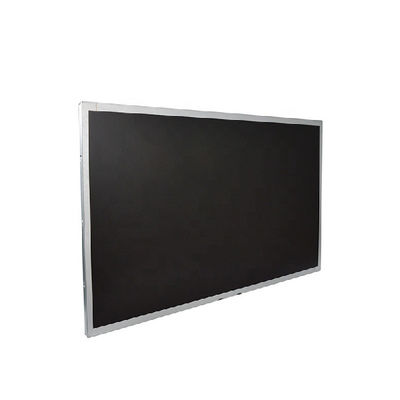

23.6 inch LCD screen module M236HGE-L20 LCD Panel Display 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: How long will I receive my goods M236HGE-L20 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Do you accept sample orders of M236HGE-L20 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of M236HGE-L20 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
