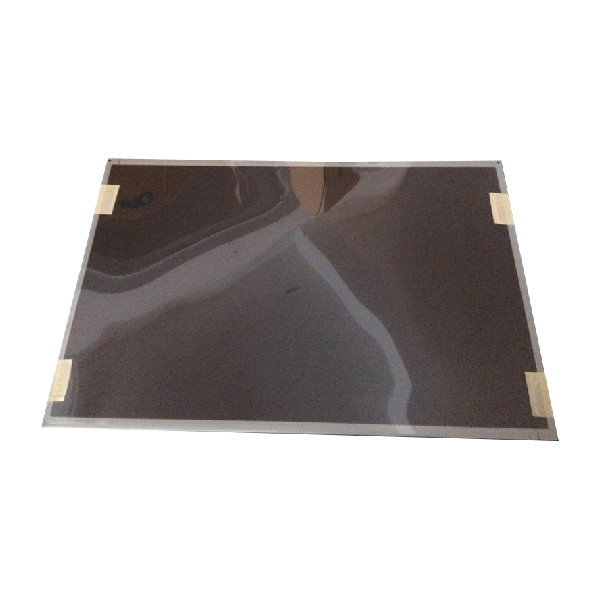

22 Inch LCD Panel Display M220ZGE-L20 LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | M220ZGE-L20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M220ZGE-L20 | Screen Size: | 22.0 Inches |
|---|---|---|---|
| Pixel Number: | 1680(RGB)×1050, WSXGA+, 90PPI | Display Area: | 473.76(W)×296.1(H) Mm |
| Outline Size: | 493.7(W)×320.1(H) Mm | Bezel Opening: | 477.7(W)×300.1(H) Mm |
| Luminance: | 250 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (transmission) |
| High Light: | 250 cd/m2 22 Inch LCD Panel Display,22.0 inches M220ZGE-L20 LCD Display |
||
Product Description
22 inch LCD Panel Display M220ZGE-L20 LCD display
Product details :
| Chimei Innolux LCD SCREEN M220ZGE-L20 | |
| Panel Brand | Chimei Innolux |
| Panel Model | M220ZGE-L20 |
| Panel Size | 22.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1680(RGB)×1050, WSXGA+, 90PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 473.76(W)×296.1(H) mm |
| Bezel Opening | 477.7(W)×300.1(H) mm |
| Outline Size | 493.7(W)×320.1(H) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 1.3/3.7 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | 12S4P WLED , 40K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 2.10/2.25Kgs (Typ./Max.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 22 inch LCD Panel Display M220ZGE-L20 LCD display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
When receiving the products from the express company, please check the package is fine by face to face. If the package was broken or the product was broken, please refuse receiving and require taking photos as the evidence. The photos take two parts and separate into two parts. One to customer self for evidence, another to the express company who as the third part. Then when we receive the photos from the express company who give us the damaged product, we will finger out the case who take the responsibility for the damaged product.
We can`t compensation without the third party evidence
Peace of mind with 100% satisifaction Guarantee.
Good quality,competitive price and 5 years trading business experience
If the product is not defective, the buyer is responsible for returning shipping costs and insurance. There will be a 25% restocking fee for returning an item what is not defective.
FAQ:
Q: How long is the warranty of M220ZGE-L20 ?
A: 90 days warranty .
Q: Can you give me a discount if I need a large quantity of M220ZGE-L20 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of Chimei Innolux M220ZGE-L20 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods M220ZGE-L20 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
