Name: 18.5 Inch G185BGE-L01 Industrial LCD Panel Display 1366×768
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: G185BGE-L01
Availability: InStock

Brand Name:	Chimei Innolux
Model Number:	G185BGE-L01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

G185BGE-L01

Screen Size:

18.5 Inches

Pixel Number:

1366(RGB)×768, WXGA, 84PPI

Display Area:

409.8(W)×230.4(H) Mm

Outline Size:

430.37(W)×254.6(H) ×16.6(D) Mm

Bezel Opening:

413.4(W)×234.0(H) Mm

Luminance:

300 Cd/m² (Typ.)

Contrast Ratio:

1000:1 (Typ.) (transmission)

Supply Ability:

100000 Unit/Units per Month

Highlight:

G185BGE-L01 LCD Panel Display

60Hz 1366×768 Industrial Lcd Display

Product Description

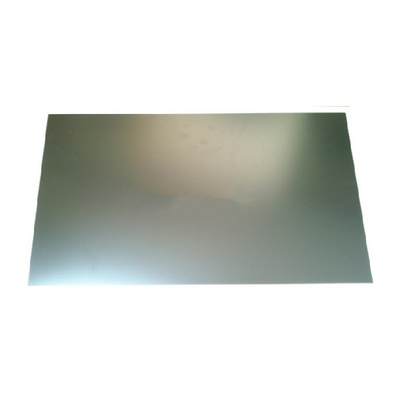

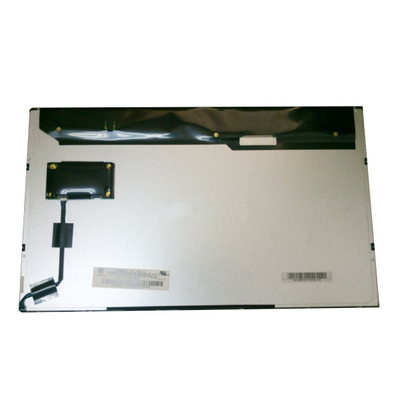

18.5 inch G185BGE-L01 Industrial LCD Panel Display

Product details :

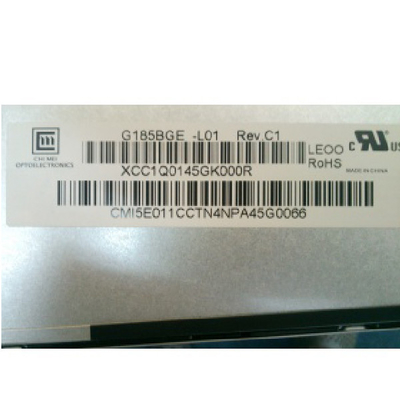

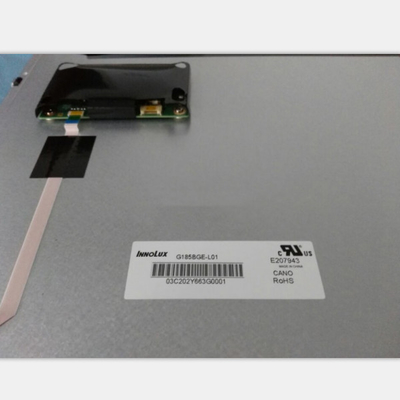

Chimei Innolux LCD SCREEN G185BGE-L01
Panel Brand	Chimei Innolux
Panel Model	G185BGE-L01
Panel Size	18.5"
Panel Type	a-Si TFT-LCD , LCM
Resolution	1366(RGB)×768, WXGA, 84PPI
Pixel Format	RGB Vertical Stripe
Display Area	409.8(W)×230.4(H) mm
Bezel Opening	413.4(W)×234.0(H) mm
Outline Size	430.37(W)×254.6(H) ×16.6(D) mm
Surface	Antiglare (Haze 25%), Hard coating (3H)
Brightness	300 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	1.5/3.5 (Typ.)(Tr/Td)
Display Colors	262K/16.2M 56% NTSC
Lamp Type	WLED , 50K hours , With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	1.58/1.65Kgs (Typ./Max.)
Signal Interface	LVDS (1 ch, 8-bit) , 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C
18.5 inch G185BGE-L01 Industrial LCD Panel Display

Chimei Innolux G185BGE-L01 Mechanical Features

Panel Size :	18.5 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	1366(RGB)×768, WXGA	RGB Vertical Stripe	0.100×0.300 mm	0.300×0.300 mm [84PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	409.8×230.4 mm	413.4×234.0 mm	430.37×254.6 mm	16.6 (Max.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9 (W : H)	Landscape type
Fixation :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	1.58/1.65Kgs (Typ./Max.)	Antiglare (Haze 25%), Hard coating (3H)

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

18.5 Inch G185BGE-L01 Industrial LCD Panel Display 1366×768 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How long will I receive my goods G185BGE-L01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: If I place order now,when will you ship the goods of G185BGE-L01 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of G185BGE-L01 ?

A: Of course!sample order is welcome !

Q: How long is the warranty ?

A: We offer 90days warranty .

*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
