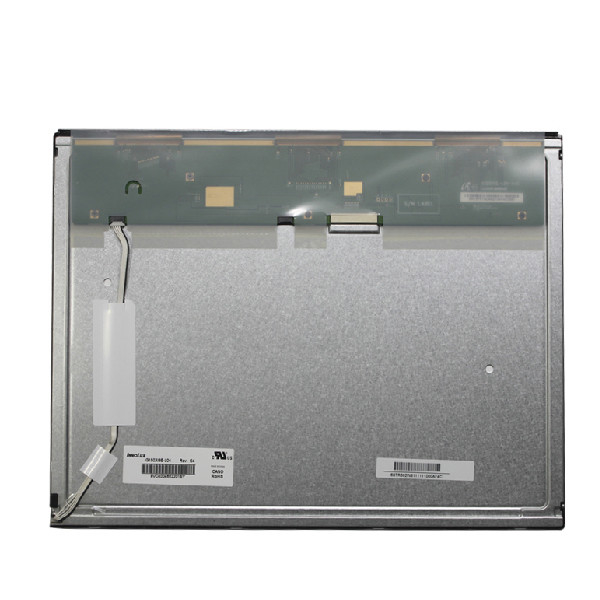

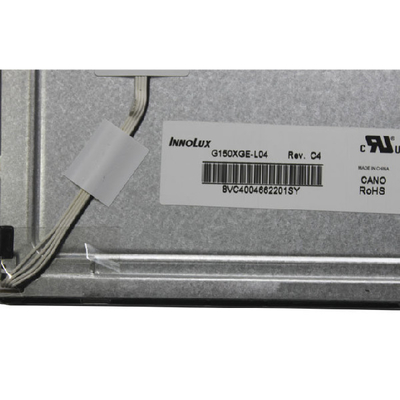

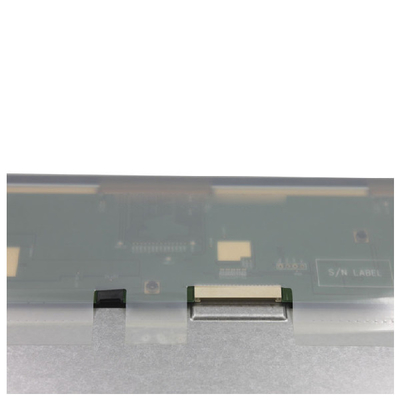

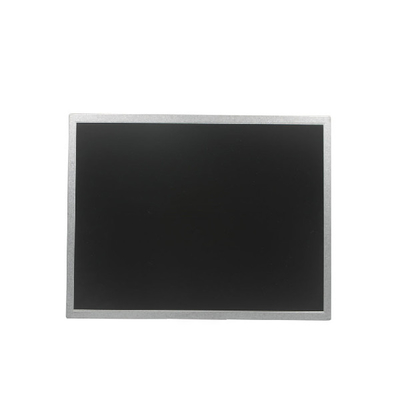

G150XGE-L04 15 Inch LCD Display For Industrial Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | G150XGE-L04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G150XGE-L04 | Screen Size: | 15.0 Inches |
|---|---|---|---|
| Pixel Number: | 1024(RGB)×768, XGA, 85PPI | Display Area: | 304.128(W)×228.096(H) Mm |
| Outline Size: | 326.5(W)×253.5(H) ×12(D) Mm | Bezel Opening: | 307.4(W)×231.3(H) Mm |
| Luminance: | 400 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (transmission) |
| Highlight: | 15 Inch Industrial Equipment LCD Display,G150XGE-L04 Lcd Display Screen |
||
Product Description
G150XGE-L04 15 inch LCD Display for Industrial Equipment
Product details :
| Chimei Innolux LCD SCREEN G150XGE-L04 | |
| Panel Brand | Chimei Innolux |
| Panel Model | G150XGE-L04 |
| Panel Size | 15.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768, XGA, 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.4(W)×231.3(H) mm |
| Outline Size | 326.5(W)×253.5(H) ×12(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8/17 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.2M 55% NTSC |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 835g (Typ.) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 85 °C |
| G150XGE-L04 15 inch LCD Display for Industrial Equipment | |
Chimei Innolux G150XGE-L04 Mechanical Details
| Pixel Features : | |
|---|---|
| Mechanical Size : | |
| Outline Features : | |
| Holes & Brackets : | |
| Other Features : |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty of G150XGE-L04 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of G150XGE-L04 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders for G150XGE-L04 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of G150XGE-L04 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
