11.6 Inch Ips Edp Lcd Laptop Screen Panel N116BCA-EA1
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | N116BCA-EA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | N116BCA-EA1 | Screen Size: | 11.6 Inches |
|---|---|---|---|
| Pixel Number: | 1366(RGB)×768, WXGA, 135PPI | Active Area(mm): | 256.125(W)×144(H) Mm |
| Outline(mm): | 278(W)×168(H)×3(D) Mm | Shape Style: | Thin Screen (PCBA Straight, Thickness≤3.2mm) |
| Luminance: | 250 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (transmission) |
| Highlight: | 11.6 Inch Lcd Laptop Screen Panel,N116BCA-EA1 LCD Panel Display,WXGA 135PPI Laptop Screen Panel |
||
Product Description

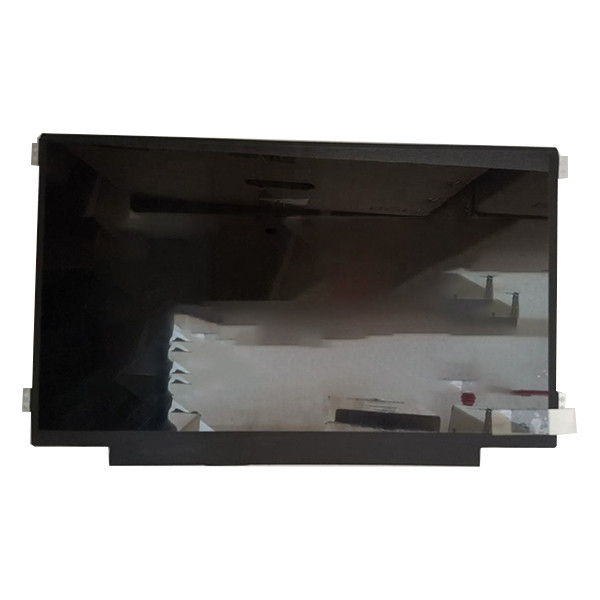

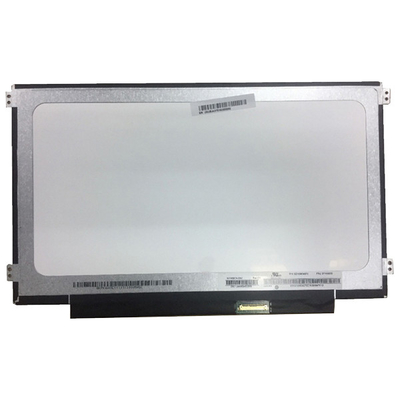

11.6 inch ips edp lcd laptop screen panel N116BCA-EA1
Product details :

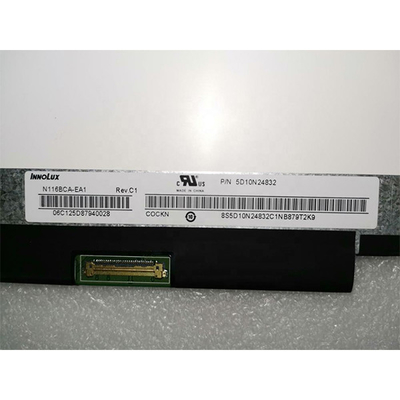

| Innolux LCD SCREEN N116BCA-EA1 (CMN1138) | |
| manufacturer | Innolux |
| Model Name | N116BCA-EA1 (CMN1138) |
| screen size | 11.6 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768, WXGA, 135PPI |
| Pixel configuration | RGB vertical bars |
| Display size | 256.125(W)×144(H) mm |
| physical dimension | 278(W)×168(H)×3(D) mm |
| surface treatment | Matte, Hard coating (3H) |
| Brightness | 250cd/m² (Typ.) |
| Contrast | 800:1 (Typ.) (TM) |
| Best angle | Full view |
| Optical mode | AAS, Normally Black, Transmissive |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| Responding time | 14/11 (Typ.)(Tr/Td) ms |
| Number of color | 262K , 45% NTSC |
| Backlight type | 10S2P WLED , 15K hours, with LED driver |
| Shape Style | Thin screen (PCBA straight, thickness≤3.2mm) |
| Apply to | notebook / industry |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | eDP (1 Lane) , eDP1.2 , 30 pins , terminal |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| 11.6 inch ips edp lcd laptop screen panel N116BCA-EA1 | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How can I trace my order of N116BCA-EA1 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of N116BCA-EA1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of N116BCA-EA1 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of N116BCA-EA1 ?
A: Of course!If you make a large order, we will give you a discount.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
