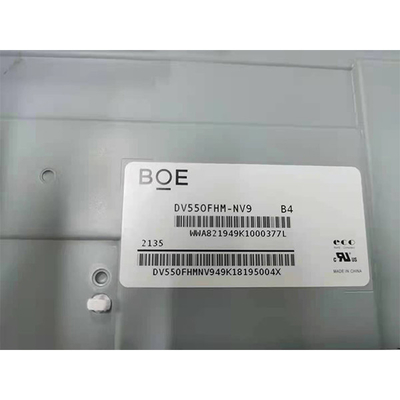

DV550FHM-NV9 LCD Video Wall Lcd Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | DV550FHM-NV9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | DV550FHM-NV9 | Screen Size: | 55 Inches |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080[FHD] 40PPI | Active Area(mm): | 1209.6 × 680.4 Mm (H×V) |
| Outline(mm): | 1211.3 × 682.1 × 56.44 Mm (H×V×D) | Patchwork: | 1.7 Mm (active To Active Seam) |
| Luminance: | 500 Cd/m² (Typ.) | Contrast Ratio: | 1200:1 (Typ.) (transmission) |
| High Light: | DV550FHM-NV9 Lcd Screen Display Panel,55 inches DV550FHM-NV9,LCD Video Wall 40PPI 500 cd/m2 |
||
Product Description
DV550FHM-NV9 LCD Video Wall lcd screen display panel
Product details :
DV550FHM-NV9 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1209.6(W)×680.4(H) mm, outline size of 1211.3(W)×682.1(H)×56.44(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of TBD, active_to_active splicing seam 1.7 mm. As a ADS, Normally Black, Transmissive LCM product, DV550FHM-NV9 can provides 500 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Direct light type and have a working life time of 50K hours, With LED Driver. DV550FHM-NV9 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
| BOE LCD SCREEN DV550FHM-NV9 | |
| manufacturer | BOE |
| Model Name | DV550FHM-NV9 |
| screen size | 55 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1920(RGB)×1080[FHD] 40PPI |
| Pixel configuration | RGB vertical bars |
| Display size | 1209.6 × 680.4 mm (H×V) |
| physical dimension | 1211.3 × 682.1 × 56.44 mm (H×V×D) |
| surface treatment | Matte (Haze 25%), Hard coating (3H) |
| Brightness | 500 (Typ.) |
| Contrast | 1200 : 1 (Typ.) [Transmission] |
| Best angle | Full view |
| Optical mode | ADS, Normally Black, Transmissive |
| Viewing angle | 89/89/89/89 (Typ.) (CR≥10) |
| Responding time | 8 (Typ.)(G to G) ms |
| Number of color | 16.7M , 72% NTSC |
| Backlight type | WLED , 50K hours, with LED driver |
| Patchwork | 1.7 mm (active to active seam) |

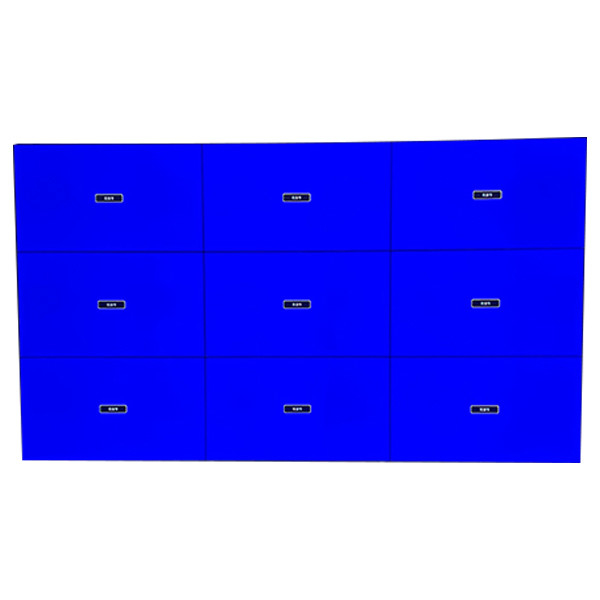

| Apply to | multi-screen |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (2 ch, 8-bit) , terminal, 51 pins |
| Supply voltage | 12.0V (Typ.) |
| Maximum rating | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| DV550FHM-NV9 LCD Video Wall lcd screen display panel | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long will I receive my goods DV550FHM-NV9 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of DV550FHM-NV9 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of DV550FHM-NV9 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
