BOE 55 inch LCD Video Wall DV550FHM-NV2 40PPI

BOE 55 inch LCD Video Wall DV550FHM-NV2 40PPI

Product Details:

Place of Origin: China
Brand Name: BOE
Model Number: DV550FHM-NV2

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model Name: DV550FHM-NV2 Screen Size: 55 Inches
Pixel Number: 1920(RGB)×1080[FHD] 40PPI Active Area(mm): 1209.6 × 680.4 Mm (H×V)
Outline(mm): 1213.7 × 684.5 × 60.39 Mm (H×V×D) Visual Size: 1209.8 × 680.6 Mm (H×V)
Luminance: 500 Cd/m² (Typ.) Contrast Ratio: 1200:1 (Typ.) (transmission)
High Light:

500 cd/m2 55 inch LCD Video Wall


40PPI Lcd Video Wall Display

Product Description

BOE 55 inch LCD Video Wall DV550FHM-NV2



Product details :

manufacturer BOE
Model Name DV550FHM-NV2
screen size 55.0 inches
Screen type LCM, a-Si TFT-LCD
Resolution 1920(RGB)×1080[FHD] 40PPI
Pixel configuration RGB vertical bars
Display size 1209.6 × 680.4 mm (H×V)
physical dimension 1213.7 × 684.5 × 60.39 mm (H×V×D)
Visual size 1209.8 × 680.6 mm (H×V)
surface treatment Matte (Haze 25%), Hard coating (3H)
Brightness 500cd/m² (Typ.)
Contrast 1200 : 1 (Typ.) [Transmission]
Best angle Full view
Optical mode ADS, Normally Black, Transmissive
Viewing angle 89/89/89/89 (Typ.)(CR≥10)
Responding time 8 (Typ.)(G to G) ms
Number of color 16.7M , 72% NTSC
Backlight type WLED , with LED driver
Patchwork 4.1 mm (active to active seam)
Apply to multi-screen
Refresh rate 60Hz
Touch function No touch
signal system LVDS (2 ch, 10-bit) , terminal, 51 pins
Supply voltage 12.0V (Typ.)
Maximum rating Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C
BOE 55 inch LCD Video Wall DV550FHM-NV2

BOE DV550FHM-NV2 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
500 cd/m² (Typ.) ADS, Normally Black, Transmissive 1200:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
89/89/89/89 (Typ.)(CR≥10) Symmetry 8 (Typ.)(G to G) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
9969K 16.7M (8-bit) X:0.280; Y:0.290
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
74% 97% 77%
DCI-P3 Coverage Rec.2020 Coverage Remarks
77% 55% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation : 1.33 (Typ.)(9 points)

Why Choose Us :


According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

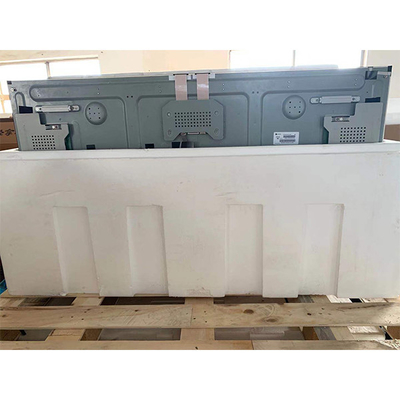

Shipping and Package :


BOE 55 inch LCD Video Wall DV550FHM-NV2 40PPI 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products


2) All Panels are packed with new and firm carton, capable of long distance transportation.




4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.



Q: How long is the warranty of DV550FHM-NV2 ?

A: 90 days warranty .


Q: Can you give me a discount if I need a large quantity of DV550FHM-NV2 ?

A: Of course!If you make a large order, we will give you a discount.


Q: How can I trace my order of DV550FHM-NV2 ?

A: we will give you tracking number then you can trace your order from website.


Q: If I order DV550FHM-NV2 now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.



*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
