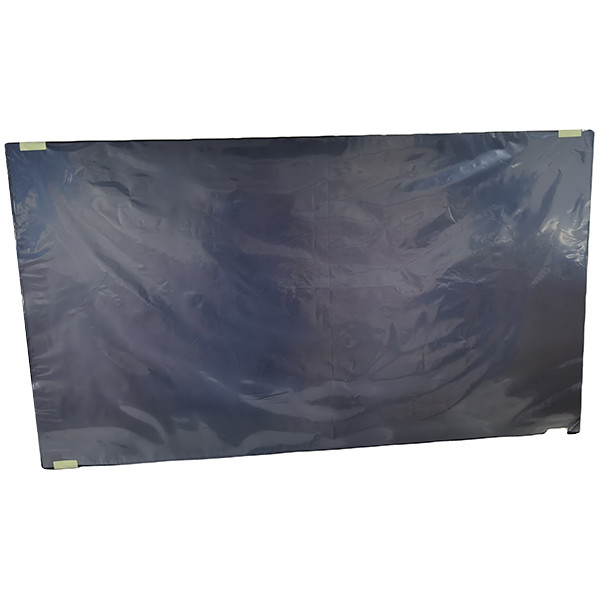

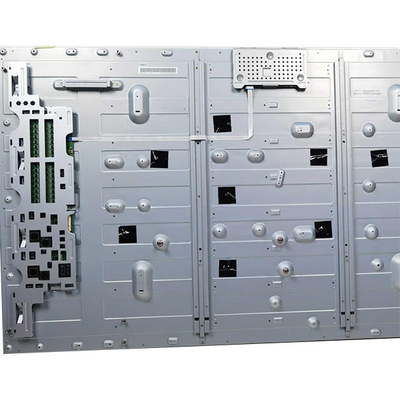

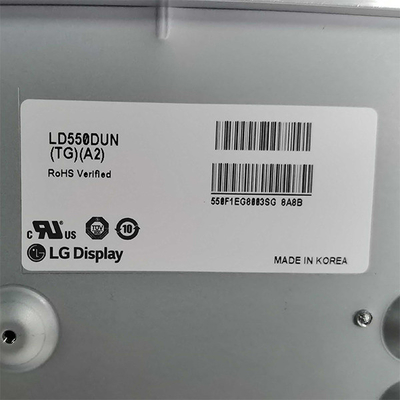

LG LCD Video Wall LD550DUN-TGA2 TFT Lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LD550DUN-TGA2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LD550DUN-TGA2 | Screen Size: | 55 Inches |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 FHD 40PPI | Active Area(mm): | 1209.6(horizontal)×680.4(vertical) Mm |
| Outline(mm): | 1213.4 (horizontal) × 684.2 (vertical) × 51.3 (thickness) Mm | Visual Size: | 1209.9(horizontal)×680.7(vertical) Mm |
| Luminance: | 700 Cd/m² (Typ.) | Contrast Ratio: | 1200:1 (Typ.) (transmission) |
Product Description
LG LCD Video Wall LD550DUN-TGA2 TFT Lcd screen
Product details :
LD550DUN-TGA2 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1209.6(W)×680.4(H) mm, outline size of 1213.4(W)×684.2(H)×51.3(D) mm, viewing area size of 1209.9(W)×680.7(H) mm, with surface treament of Antiglare (Haze 44%), Hard coating (3H), net weight of 18.1/19.0Kgs (Typ./Max.), active_to_active splicing seam 3.8 mm. As a S-IPS, Normally Black, Transmissive LCM product, LD550DUN-TGA2 can provides 700 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Dithering gray scale signal for each dot, thus presenting a palette of 1.06B colors, also with performance of color gamut 99% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Direct light type and have a working life time of 60K hours, With LED Driver. LD550DUN-TGA2 utilizes LVDS (2 ch, 10-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.).
| LG Display LCD SCREEN LD550DUN-TGA2 | |
| manufacturer | LG Display |
| Model Name | LD550DUN-TGA2 |
| screen size | 55 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080 FHD 40PPI |
| Pixel configuration | RGB vertical bars |
| Display size | 1209.6(horizontal)×680.4(vertical) mm |
| physical dimension | 1213.4 (horizontal) × 684.2 (vertical) × 51.3 (thickness) mm |
| Visual size | 1209.9(horizontal)×680.7(vertical) mm |
| surface treatment | Matte (Haze 44%), Hard coating (3H) |
| Brightness | 700cd/m² (Typ.) |
| Contrast | 1200:1 (Typ.) (TM) |
| Best angle | Full view |
| Optical mode | S-IPS, Normally Black, Transmissive |
| Viewing angle | 89/89/89/89 (Min.)(CR≥10) |
| Responding time | 12 (Typ.)(G to G) ms |
| Number of color | 1.06B , 99% sRGB |
| Backlight type | WLED , 60K hours, with LED driver |
| Patchwork | 3.8 mm (active to active seam) |
| Apply to | multi-screen |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | 51 pins LVDS (2 ch, 10-bit) , terminal |
| Supply voltage | 12.0V (Typ.) |
| Maximum rating | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| LG LCD Video Wall LD550DUN-TGA2 TFT Lcd screen | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty of LD550DUN-TGA2 ?
A: 90 days warranty .
Q: Can you give me a discount if I need a large quantity of LD550DUN-TGA2 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of LD550DUN-TGA2 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods LD550DUN-TGA2 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
