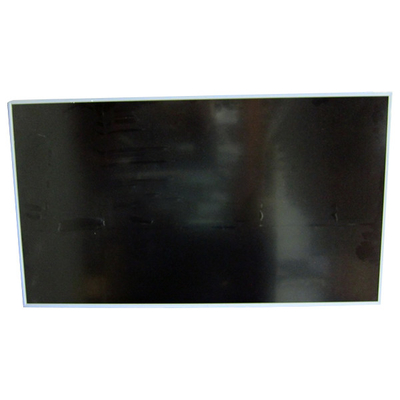

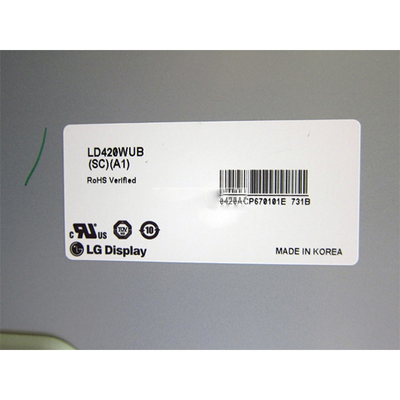

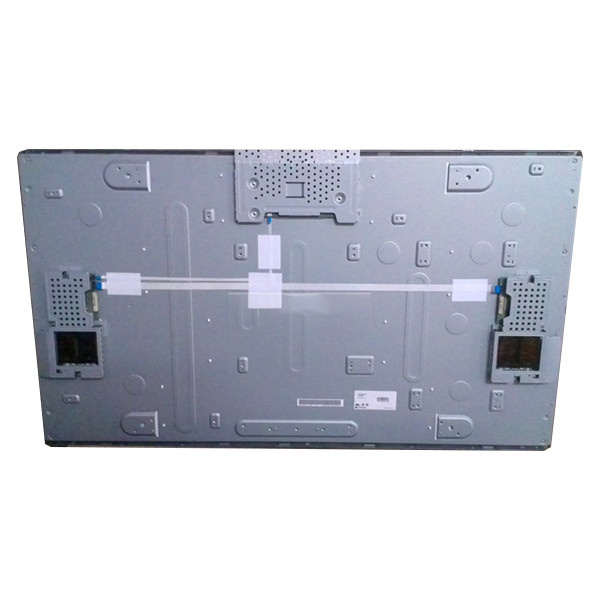

LG 42 inch LCD Video Wall LD420WUB-SCA1

LG 42 inch LCD Video Wall LD420WUB-SCA1

Product Details:

Place of Origin: China
Brand Name: LG Display
Model Number: LD420WUB-SCA1

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model Name: LD420WUB-SCA1 Screen Size: 42.0 Inches
Pixel Number: 1920(RGB)×1080, FHD, 52PPI Active Area(mm): 930.24(W)×523.26(H) Mm
Outline(mm): 956.4(W)×549.4(H)×54.5(D) Mm Bezel Area(mm): 936.2(W)×529.2(H) Mm
Luminance: 700 (Typ.) Contrast Ratio: 1200 : 1 (Typ.) [Transmission]

Product Description

LG 42 inch LCD Video Wall LD420WUB-SCA1



Product details :

manufacturer LG Display
Model Name LD420WUB-SCA1
screen size 42.0 inch
Screen type a-Si TFT-LCD, LCM
Resolution 1920(RGB)×1080, FHD, 52PPI
Pixel configuration RGB vertical bars
Display size 930.24(W)×523.26(H) mm
physical dimension 956.4(W)×549.4(H)×54.5(D) mm
Visual size 936.2(W)×529.2(H) mm
surface treatment Matte (Haze 10%), Hard coating (3H)
Brightness 700 cd/m² (Typ.)
Contrast 1200:1 (Typ.) (TM)
Best angle Full view
Optical mode S-IPS, Normally Black, Transmissive
Viewing angle 89/89/89/89 (Min.)(CR≥10)
Responding time 9 (Typ.)(G to G) ms
Number of color 16.7M/1.06B , 71% NTSC
Backlight type CCFL , 50K hours, with inverter
Patchwork 26.2 mm (active to active seam)
Apply to digital signage / multi-screen
Refresh rate 60Hz
Touch function No touch
signal system LVDS (2 ch, 8/10-bit) , 51 pins , terminal
Supply voltage 12.0V (Typ.)
Maximum rating Operating: 0 ~ 50 °C ; Storage: -20 ~ 60 °C
LG 42 inch LCD Video Wall LD420WUB-SCA1

LG Display LD420WUB-SCA1 Mechanical Details

Pixel Features : Number of Pixel 1920(RGB)×1080 [FHD] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.1615×0.4845 mm Pixel Pitch(W×H) 0.4845×0.4845 mm [52PPI]
Physical Size : Active Viewing 930.24(W)×523.26(H) mm Overall Dim. 956.4(W)×549.4(H) mm
Bezel Opening 936.2(W)×529.2(H) mm Overall Depth 35.5/54.5 (Typ./Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape / Portrait
Aspect Ratio(W:H) 16:9 Videowall Seam 26.2 mm (Active to Active)
Fixation : Side mounting holes (8-M4); Rear mounting holes (8-M4)
Other Detail : Mass 10.5/11.5Kgs (Typ./Max.) Surface Antiglare (Haze 10%), Hard coating (3H)
