13.3 Inch Industrial LCD Panel Display G133IGE-L03 1280×800 IPS
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Chimei Innolux |
| Model Number: | G133IGE-L03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Brand: | Chimei Innolux | Model Name: | G133IGE-L03 |
|---|---|---|---|
| Screen Size: | 13.3 Inch | Resolution: | 1280(RGB)×800, WXGA, 113PPI |
| Display Size: | 286.08(W)×178.8(H) Mm | Physical Dimension: | 308.7(W)×195(H) ×8.2(D) Mm |
| Bezel Opening: | 289.1(W)×181.8(H) Mm | Brightness(cd/m²): | 500 Cd/m² (Typ.) |
| Contrast: | 800:1 (Typ.) (TM) | Apply To: | Industry |
| High Light: | 13.3'' Industrial LCD Panel Display,G133IGE-L03 Industrial LCD Panel Display,800 IPS 13.3 inch lcd panel |
||
Product Description

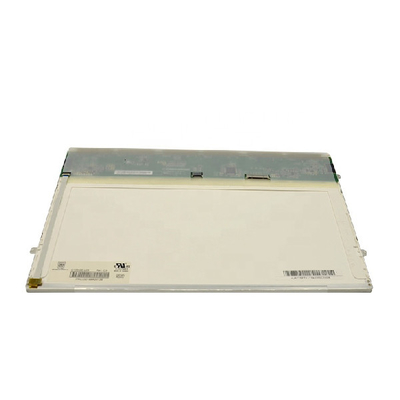

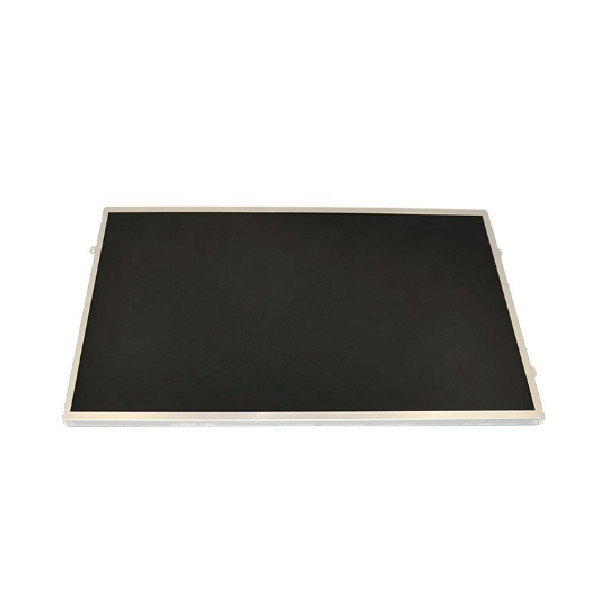

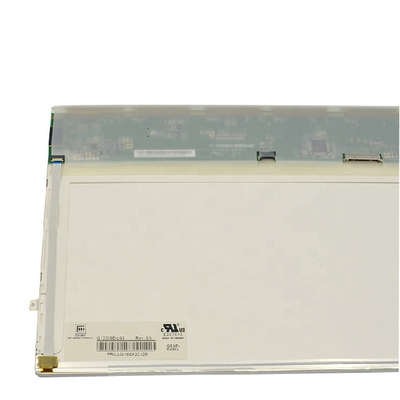

Original 13.3 inch G133IGE-L03 Industrial LCD Panel Display
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| Chimei Innolux LCD SCREEN G133IGE-L03 | |
| Panel Brand | Chimei Innolux |
| Panel Model | G133IGE-L03 |
| Panel Size | 13.3" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×800, WXGA, 113PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 286.08(W)×178.8(H) mm |
| Bezel Opening | 289.1(W)×181.8(H) mm |
| Outline Size | 308.7(W)×195(H) ×8.2(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 6/10 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.2M 43% NTSC |
| Lamp Type | WLED , 30K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 382/397g (Typ./Max.) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Original 13.3 inch G133IGE-L03 Industrial LCD Panel Display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q:How can I trace my order of G133IGE-L03 ?
A:we will give you tracking number then you can trace your order from website.
Q:How to make payment of G133IGE-L03 ?
A:We accept T/T , Paypal , western union .
Q:Can you give me a discount if I need a large quantity of G133IGE-L03?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order of G133IGE-L03 via credit card ?
A:Yes!you can use your credit card through your Paypal account.
We are one of the professional and experienced suppliers of Original 13.3 inch G133IGE-L03 Industrial LCD Panel Display , offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
