10.4 Inch G104S1-L01 LCD Display Screen Panel 800×600 iPS
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Chimei Innolux |
| Model Number: | G104S1-L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Brand: | Chimei Innolux | Model Name: | G104S1-L01 |
|---|---|---|---|
| Screen Size: | 10.4 Inch | Resolution: | 800(RGB)×600 [SVGA] 96PPI |
| Display Size: | 211.2(H)×158.4(V) Mm | Physical Dimension: | 243(H)×184(V) ×7.3(D) Mm |
| Bezel Opening: | 214.8(H)×162.7(V) Mm | Brightness(cd/m²): | 400 Cd/m² (Typ.) |
| Contrast: | 7600:1 (Typ.) (TM) | Apply To: | Industry |
| High Light: | 10.4'' lcd display screen panel,G104S1-L01 lcd display screen panel,600 IPS lcd display screen |
||
Product Description

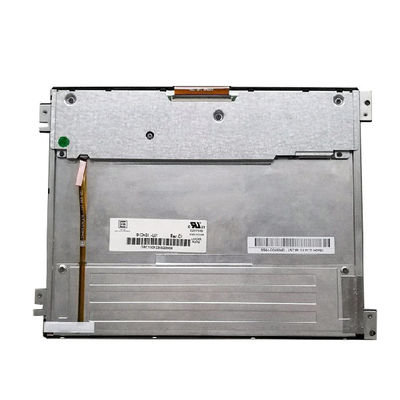

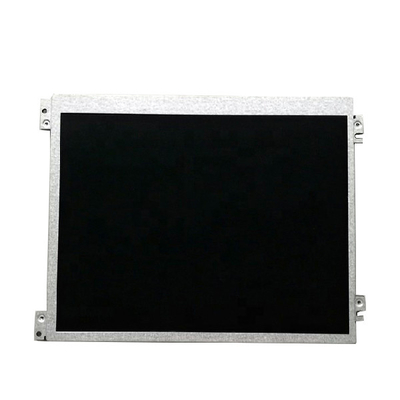

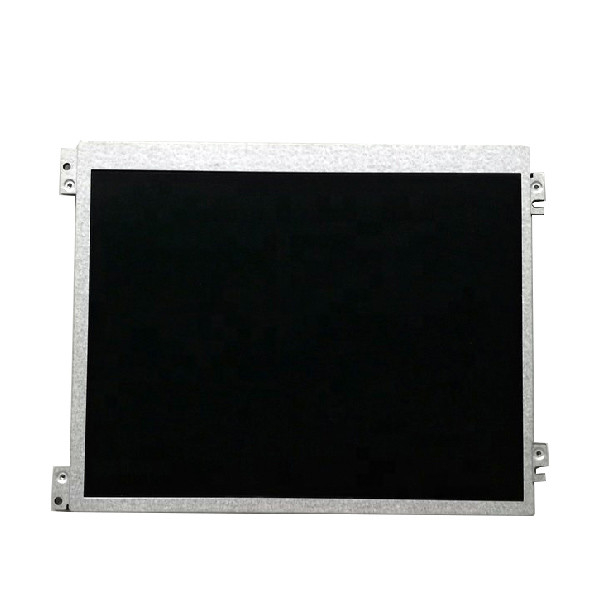

Industrial LCD Panel Display G104S1-L01 display lcd screen G104S1-L01
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| Chimei Innolux LCD SCREEN G104S1-L01 | |
| Panel Brand | Chimei Innolux |
| Panel Model | G104S1-L01 |
| Panel Size | 10.4" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×600 [SVGA] 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 211.2(H)×158.4(V) mm |
| Bezel Opening | 214.8(H)×162.7(V) mm |
| Outline Size | 243(H)×184(V) ×7.3(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 5/11 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.2M 53% NTSC |
| Lamp Type | WLED , 30K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 355g (Typ.) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C |
| Industrial LCD Panel Display G104S1-L01 display lcd screen G104S1-L01 | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Do you accept sample orders for G104S1-L01 ?
A: Of course!sample order is welcome !
Q: How can I trace my order of Chimei Innolux G104S1-L01 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods G104S1-L01 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods G104S1-L01 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
We are one of the professional and experienced suppliers of Industrial LCD Panel Display G104S1-L01 display lcd screen G104S1-L01 , offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
