LCD Screen Display Panel

AT065TN14 LCD Screen Display Panel 6.5 inches graphic lcd module

All Category

Floor Standing Digital Signage

AT065TN14 LCD Screen Display Panel 6.5 inches graphic lcd module

Brand Name:	Chimei Innolux
Model Number:	AT065TN14
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Brand:

Chimei Innolux

Model Name:

AT065TN14

Screen Size:

6.5 Inch

Resolution:

640(RGB)×480, VGA, 143PPI

Display Size:

143.4(W)×76.704(H) Mm

Physical Dimension:

155.2(W)×89.4(H) ×5.7(D) Mm

Bezel Opening:

146.2(W)×78.7(H) Mm

Brightness(cd/m²):

400 Cd/m² (Typ.)

Contrast:

500:1 (Typ.) (TM)

Apply To:

Car Display

Supply Ability:

100000 Unit/Units per Month

Product Description

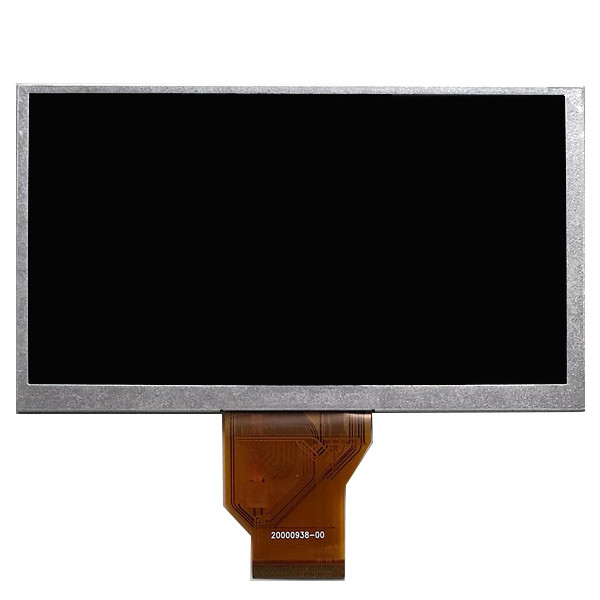

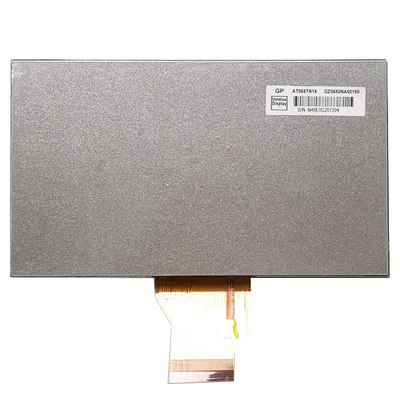

AT065TN14 LCD Screen Display Panel 6.5 inches graphic lcd module

Product details :

TFT LCD Panel, LCD/LED backlight

A Grade , 100% New Original

In Stock

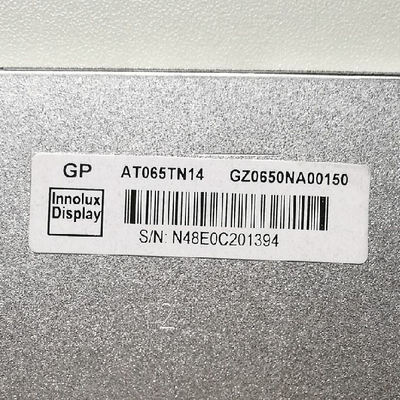

Chimei Innolux LCD SCREEN AT065TN14
Panel Brand	Chimei Innolux
Panel Model	AT065TN14
Panel Size	6.5"
Panel Type	a-Si TFT-LCD , LCM
Resolution	640(RGB)×480, VGA, 143PPI
Pixel Format	RGB Vertical Stripe
Display Area	143.4(W)×76.704(H) mm
Bezel Opening	146.2(W)×78.7(H) mm
Outline Size	155.2(W)×89.4(H) ×5.7(D) mm
Surface	Antiglare,
Brightness	400 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	10/15 (Typ.)(Tr/Td)
Display Colors	262K/16.7M 50% NTSC
Lamp Type	3S8P WLED , 20K hours , Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	127g (Typ.)
Signal Interface	Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC
Input Voltage	3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C
AT065TN14 LCD Screen Display Panel 6.5 inches graphic lcd module

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

AT065TN14 LCD Screen Display Panel 6.5 inches graphic lcd module 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ :

Q: Do you accept sample orders for AT065TN14 ?

A: Of course!sample order is welcome !

Q: I do not find the LCD I am looking for in the website, what should I do ?

A: You can give us some pictures,we have a lot of LCD out of shelves.

Q: How long is the warranty of Chimei Innolux AT065TN14 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of AT065TN14 ?

A: Of course!If you make a large order, we will give you a discount.

We are one of the professional and experienced suppliers of AT065TN14 LCD Screen Display Panel 6.5 inches graphic lcd module , offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.

*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
