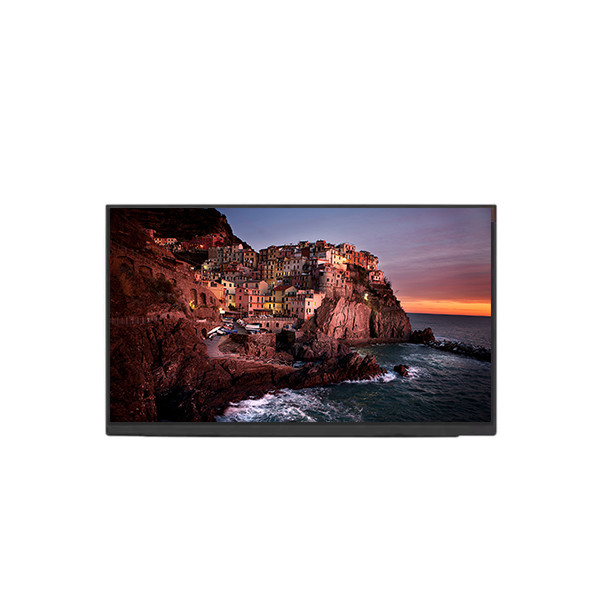

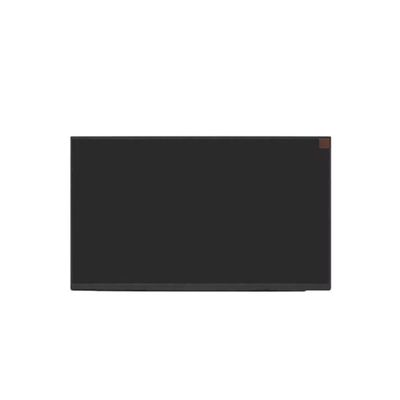

NT116WHQ-N00 lcd screen panel 11.6 inch LCD Display TFT Module
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | BOE |
| Model Number: | NT116WHQ-N00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Brand: | BOE | Model Name: | NT116WHQ-N00 |
|---|---|---|---|
| Screen Size: | 11.6" | Resolution: | 1366(RGB)×768, WXGA 135PPI |
| Active Area: | 256.125(W)×144(H) Mm | Outline Size: | 265.3(W)×153.9(H)×1(D) Mm |
| Display Mode: | TN, Normally White, Transmissive | Brightness(cd/m²): | 0 Cd/m² |
| Response Time: | 12 (Typ.)(Tr+Td) | Apply To: | Laptop |
Product Description
NT116WHQ-N00 lcd screen panel 11.6 inch LCD Display TFT Module
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| Brand | BOE |
| Model P/N | NT116WHQ-N00 |
| Diagonal Size | 11.6" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 256.125(W)×144(H) mm |
| Bezel Opening | - |
| Outline Size | 265.3(W)×153.9(H)×1(D) mm |
| Surface | - |
| Brightness | 0 cd/m² |
| Contrast Ratio | - |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | - |
| Response Time | 12 (Typ.)(Tr+Td) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 5.5% (Typ.)(with Polarizer) |
| Display Colors | 262K 45%NTSC |
| Lamp Type | No B/L |
| Frequency | - |
| Touch Screen | Without |
| Driver IC | COG Built-in 2 source chips |
| Shape Style | - |
| Application | Laptop |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Can I pay my order of NT116WHQ-N00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of NT116WHQ-N00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of NT116WHQ-N00 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90 days warranty .
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
