Industrial 10.1 Inch LCD Panel 1280x800 IPS N101ICG-L11
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Innolux |
| Model Number: | N101ICG-L11 (CMN1041) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Brand: | Innolux | Model Name: | N101ICG-L11 (CMN1041) |
|---|---|---|---|
| Screen Size: | 10.1 Inch | Resolution: | 1280(RGB)×800, WXGA, 149PPI |
| Display Size: | 216.96(W)×135.6(H) Mm | Physical Dimension: | 227.42(W)×147.69(H) ×4.85(D) Mm |
| Bezel Opening: | 216.96(W)×135.6(H) Mm | Brightness(cd/m²): | 350 Cd/m² (Typ.) |
| Contrast: | 800:1 (Typ.) (TM) | Apply To: | Tablet PC / Industrial |
| High Light: | Industrial 10.1 inch lcd panel,800 IPS 10.1 inch lcd panel,N101ICG-L11 lcd panel tft |
||
Product Description

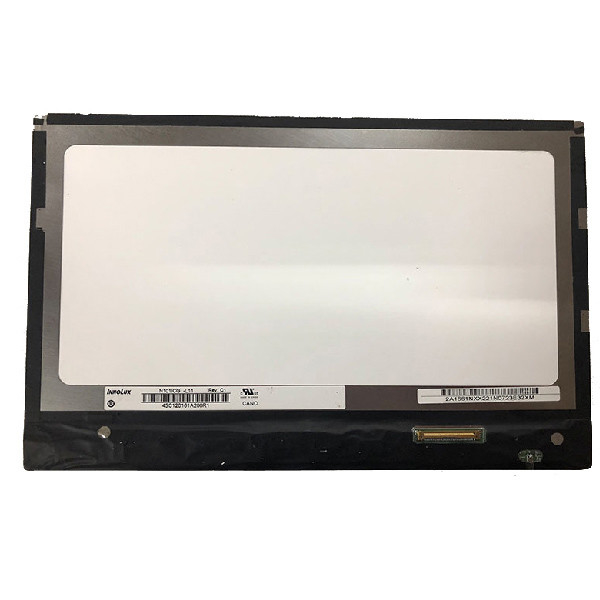

Industrial LCD Panel Display 1280*800 tft ips 10.1 inch N101ICG-L11 lcd screen display
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| Innolux LCD SCREEN N101ICG-L11 (CMN1041) | |
| Panel Brand | Innolux |
| Panel Model | N101ICG-L11 (CMN1041) |
| Panel Size | 10.1" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×800, WXGA, 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 216.96(W)×135.6(H) mm |
| Bezel Opening | 216.96(W)×135.6(H) mm |
| Outline Size | 227.42(W)×147.69(H) ×4.85(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/805(Typ.)(CR≥10) |
| Display Mode | AAS, Normally Black, Transmissive |
| Response Time | 14/11 (Typ.)(Tr/Td) |
| Display Colors | 262K 50% NTSC |
| Lamp Type | 3 strings WLED , 12K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 120/135g (Typ./Max.) |
| Signal Interface | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| Industrial LCD Panel Display 1280*800 tft ips 10.1 inch N101ICG-L11 lcd screen display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: How can I trace my order of N101ICG-L11 (CMN1041) ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of N101ICG-L11 (CMN1041) ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of N101ICG-L11 (CMN1041) ?
A: Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90 days warranty .
We are one of the professional and experienced suppliers of Industrial LCD Panel Display 1280*800 tft ips 10.1 inch N101ICG-L11 lcd screen display , offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
