LCD Screen Display Panel
>
LSA40AT9001 LCD Screen Display Panel 10.4 inch 60 PIN TFT LCD module

LSA40AT9001 LCD Screen Display Panel 10.4 inch 60 PIN TFT LCD module

Brand Name: Innolux
Model Number: LSA40AT9001
MOQ: 10pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
CHINA
Brand:
Innolux
Model Name:
LSA40AT9001
Screen Size:
10.4 Inch
Resolution:
800(RGB)×600, SVGA, 96PPI
Display Size:
211.2(W)×158.4(H) Mm
Physical Dimension:
228.4(W)×175.4(H) ×6.2(D) Mm
Bezel Opening:
214.2(W)×162.5(H) Mm
Brightness(cd/m²):
250 Cd/m² (Typ.)
Contrast:
500:1 (Typ.) (TM)
Apply To:
Digital Photo Frame / Portable DVD
Supply Ability:
100000 Unit/Units per Month
Product Description

LSA40AT9001 LCD Screen Display Panel 10.4 inch 60 PIN TFT LCD module



Product details :



TFT LCD Panel, LCD/LED backlight



A Grade , 100% New Original



In Stock

Innolux LCD SCREEN LSA40AT9001
Panel Brand Innolux
Panel Model LSA40AT9001
Panel Size 10.4"
Panel Type a-Si TFT-LCD , LCM
Resolution 800(RGB)×600, SVGA, 96PPI
Pixel Format RGB Vertical Stripe
Display Area 211.2(W)×158.4(H) mm
Bezel Opening 214.2(W)×162.5(H) mm
Outline Size 228.4(W)×175.4(H) ×6.2(D) mm
Surface Hard coating (3H)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/60 (Typ.)(CR≥10)
Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock
Response Time 10/15 (Typ.)(Tr/Td)
Display Colors 262K/16.2M 50% NTSC
Lamp Type 3S12P WLED , 20K hours , Without Driver
Frequency 60Hz
Touch Screen Without
Panel Weight 520/550g (Typ./Max.)
Signal Interface Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC
Input Voltage 3.3/10.5V (Typ.)(VCC/AVDD)
Environment Operating Temp.: -10 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

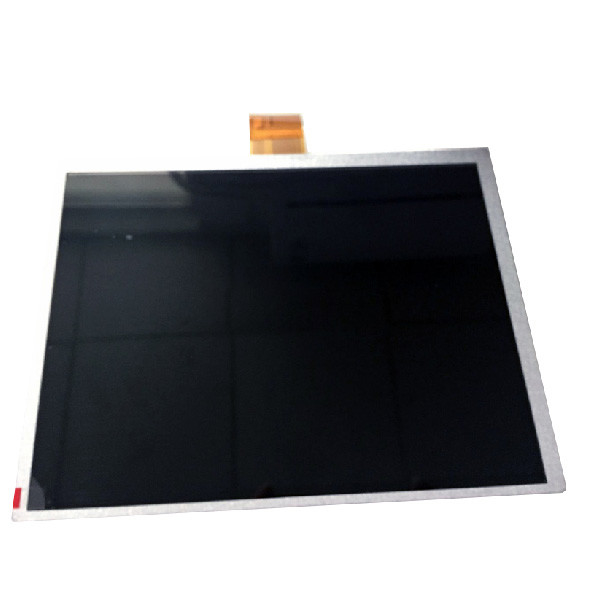

LSA40AT9001 LCD Screen Display Panel 10.4 inch 60 PIN TFT LCD module

Why Choose Us :



According to customers' various requests,


we can match all accessories which inclusive of driver board,


touch-screen, LED backlight & LVDS cables. TFT LCD,


LCD panel, LCD display,LCD screen, LCD monitor,


LCD module from 2.2 inch to 88 inch.


Quality promised, 100% original,fast delivery,


also enjoy one year guarantee !



Shipping and Package :

LSA40AT9001 LCD Screen Display Panel 10.4 inch 60 PIN TFT LCD module 0



1)All of our product will be testing before shipping . So you can be assured the quality of our products



2) All Panels are packed with new and firm carton, capable of long distance transportation.



3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT



4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.



FAQ :



Q: Can You declare my order of LSA40AT9001 at a very low value ?

A: Yes , we can . pls inform us before shipping .



Q: How long is the warranty of LSA40AT9001 ?

A: 90days warranty .



Q: If I order LSA40AT9001 now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.



Q: Do you accept sample orders for LSA40AT9001 ?

A: Of course!sample order is welcome !





We are one of the professional and experienced suppliers of LSA40AT9001 LCD Screen Display Panel 10.4 inch 60 PIN TFT LCD module , offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.



*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
