products details

Home > Products >

Industrial LCD Panel Display

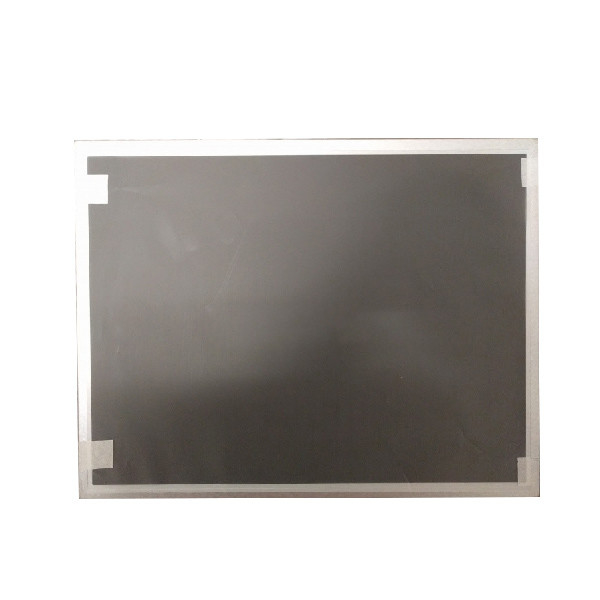

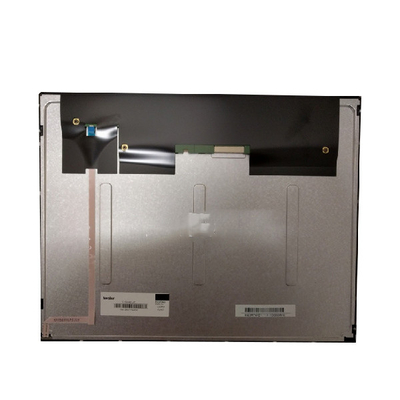

G150XNE-L01 touch screen LCD display TFT Module 15 inch 1024*768

All Category

Floor Standing Digital Signage

G150XNE-L01 touch screen LCD display TFT Module 15 inch 1024*768

Brand Name:	Innolux
Model Number:	G150XNE-L01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Brand:

Innolux

Model Name:

G150XNE-L01

Screen Size:

Resolution:

1024(RGB)×768, XGA, 85PPI

Display Size:

304.128(W)×228.096(H) Mm

Physical Dimension:

326.5(W)×253.5(H) ×9.6(D) Mm

Bezel Opening:

307.4(W)×231.3(H) Mm

Brightness(cd/m²):

500 Cd/m² (Typ.)

Contrast:

2500:1 (Typ.) (TM)

Apply To:

Industrial / Car Display

Supply Ability:

100000 Unit/Units per Month

Product Description

G150XNE-L01 touch screen LCD display TFT Module 15 inch 1024*768

Product details :

TFT LCD Panel, LCD/LED backlight

A Grade , 100% New Original

In Stock

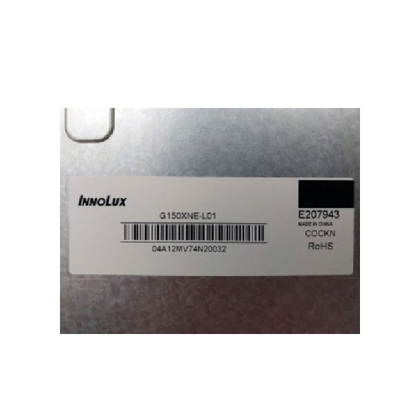

Innolux LCD SCREEN G150XNE-L01
Panel Brand	Innolux
Panel Model	G150XNE-L01
Panel Size	15.0"
Panel Type	a-Si TFT-LCD , LCM
Resolution	1024(RGB)×768, XGA, 85PPI
Pixel Format	RGB Vertical Stripe
Display Area	304.128(W)×228.096(H) mm
Bezel Opening	307.4(W)×231.3(H) mm
Outline Size	326.5(W)×253.5(H) ×9.6(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	500 cd/m² (Typ.)
Contrast Ratio	2500:1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	13/5 (Typ.)(Tr/Td)
Display Colors	262K/16.7M 72% NTSC
Lamp Type	WLED , 70K hours , With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	0.97/1.00Kgs (Typ./Max.)
Signal Interface	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 85 °C
G150XNE-L01 touch screen LCD display TFT Module 15 inch 1024*768

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

G150XNE-L01 touch screen LCD display TFT Module 15 inch 1024*768 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ :

Q: Do you accept sample orders for G150XNE-L01 ?

A: Of course!sample order is welcome !

Q: How long will I receive my goods of G150XNE-L01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can I pay my goods G150XNE-L01 by credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How do you ship my goods G150XNE-L01 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.

We are one of the professional and experienced suppliers of G150XNE-L01 touch screen LCD display TFT Module 15 inch 1024*768 , offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.

*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
