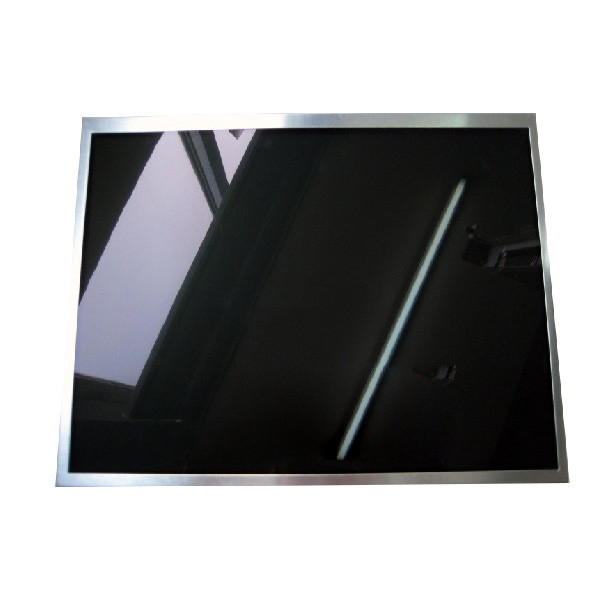

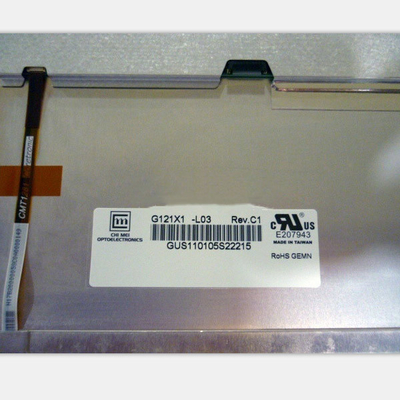

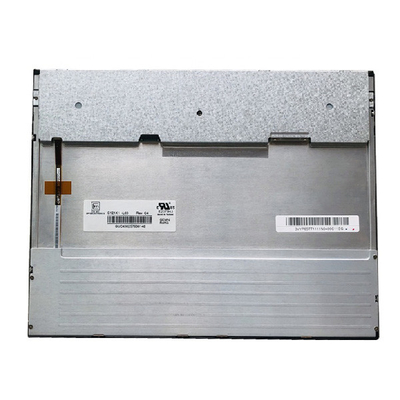

12.1 Inch G121X1-L03 1280*800 30 pins LCD Screen monitor
Product Details:
Place of Origin: | CHINA |
Brand Name: | Innolux |
Model Number: | G121X1-L03 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Brand: | Innolux | Model Name: | G121X1-L03 |
---|---|---|---|
Screen Size: | 12.1 Inch | Resolution: | 1024(RGB)×768, XGA, 105PPI |
Display Size: | 245.76(W)×184.32(H) Mm | Physical Dimension: | 260.5(W)×204(H) ×8.9(D) Mm |
Bezel Opening: | 249.0(W)×187.5(H) Mm | Brightness(cd/m²): | 600 Cd/m² (Typ.) |
Contrast: | 700:1 (Typ.) (TM) | Apply To: | Industrial / Car Display / Gaming |
Product Description
12.1 Inch G121X1-L03 1280*800 30 pins LCD Screen monitor
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
Innolux LCD SCREEN G121X1-L03 | |
Panel Brand | Innolux |
Panel Model | G121X1-L03 |
Panel Size | 12.1" |
Panel Type | a-Si TFT-LCD , LCM |
Resolution | 1024(RGB)×768, XGA, 105PPI |
Pixel Format | RGB Vertical Stripe |
Display Area | 245.76(W)×184.32(H) mm |
Bezel Opening | 249.0(W)×187.5(H) mm |
Outline Size | 260.5(W)×204(H) ×8.9(D) mm |
Surface | Glare (Haze 0%), Hard coating (3H) |
Brightness | 600 cd/m² (Typ.) |
Contrast Ratio | 700:1 (Typ.) (TM) |
Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive |
Response Time | 5/11 (Typ.)(Tr/Td) |
Display Colors | 262K/16.2M 63% NTSC |
Lamp Type | WLED , 50K hours , With LED Driver |
Frequency | 60Hz |
Touch Screen | Without |
Panel Weight | 510/540g (Typ./Max.) |
Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
Input Voltage | 3.3/5.0V (Typ.) |
Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 85 °C |
12.1 Inch G121X1-L03 1280*800 30 pins LCD Screen monitor |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q:Can you give me a discount if I need a large quantity of G121X1-L03 ?
A:Of course!If you make a large order, we will give you a discount.
Q:If I place order now,when will you ship the goods of G121X1-L03 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q:Do you accept sample orders of G121X1-L03 ?
A:Of course!sample order is welcome !
Q:Can You declare my order of G121X1-L03 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
We are one of the professional and experienced suppliers of 12.1 Inch G121X1-L03 1280*800 30 pins LCD Screen monitor , offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
