Industrial LCD Panel Display

G104X1-L03 10.4 inch 1024X768 LCD Panel for Industrial LCD Panel Display

All Category

Floor Standing Digital Signage

G104X1-L03 10.4 inch 1024X768 LCD Panel for Industrial LCD Panel Display

Brand Name:	Innolux
Model Number:	G104X1-L03
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Brand:

Innolux

Model Name:

G104X1-L03

Screen Size:

10.4 Inch

Resolution:

1024(RGB)×768, XGA, 123PPI

Display Size:

210.4(W)×157.8(H) Mm

Physical Dimension:

238.6(W)×175.8(H) ×7.97(D) Mm

Bezel Opening:

215.4(W)×161.8(H) Mm

Brightness(cd/m²):

350 Cd/m² (Typ.)

Contrast:

1000:1 (Typ.) (TM)

Apply To:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

G104X1-L03 10.4 inch 1024X768 LCD Panel for Industrial LCD Panel Display

Product details :

TFT LCD Panel, LCD/LED backlight

A Grade , 100% New Original

In Stock

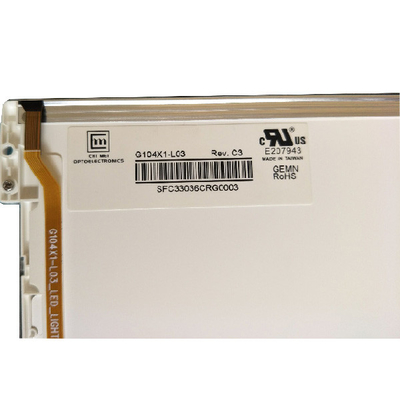

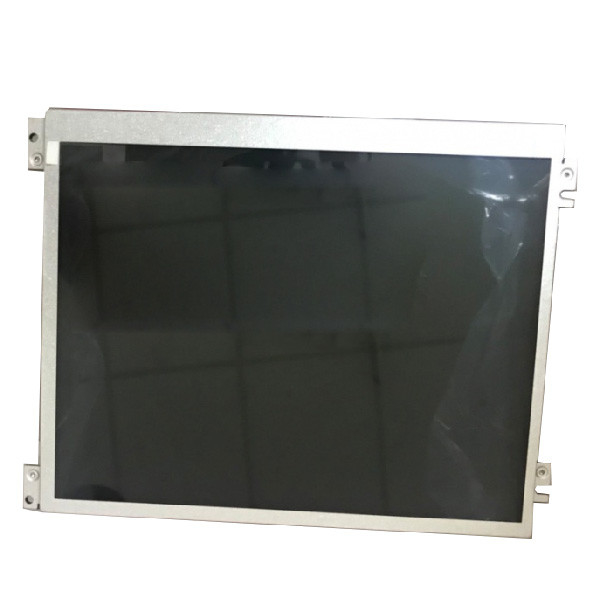

Innolux LCD SCREEN G104X1-L03
Panel Brand	Innolux
Panel Model	G104X1-L03
Panel Size	10.4"
Panel Type	a-Si TFT-LCD , LCM
Resolution	1024(RGB)×768, XGA, 123PPI
Pixel Format	RGB Vertical Stripe
Display Area	210.4(W)×157.8(H) mm
Bezel Opening	215.4(W)×161.8(H) mm
Outline Size	238.6(W)×175.8(H) ×7.97(D) mm
Surface	Antiglare,
Brightness	350 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	14/11 (Typ.)(Tr/Td)
Display Colors	262K/16.2M 53% NTSC
Lamp Type	WLED , 30K hours , With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	280g (Typ.)
Signal Interface	LVDS (1 ch, 6/8-bit) , 30 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 70 °C
G104X1-L03 10.4 inch 1024X768 LCD Panel for Industrial LCD Panel Display

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

G104X1-L03 10.4 inch 1024X768 LCD Panel for Industrial LCD Panel Display 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ :

Q: How can I trace my order of G104X1-L03 ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of G104X1-L03 ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of G104X1-L03 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of G104X1-L03 ?

A: Of course!If you make a large order, we will give you a discount.

We are one of the professional and experienced suppliers of G104X1-L03 10.4 inch 1024X768 LCD Panel for Industrial LCD Panel Display , offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.

*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
