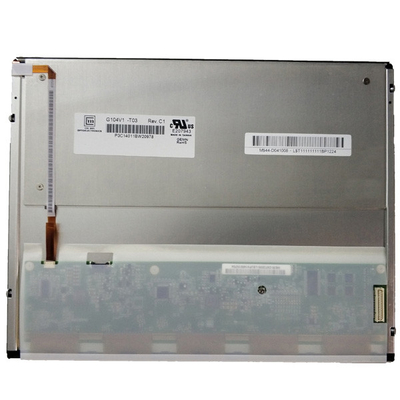

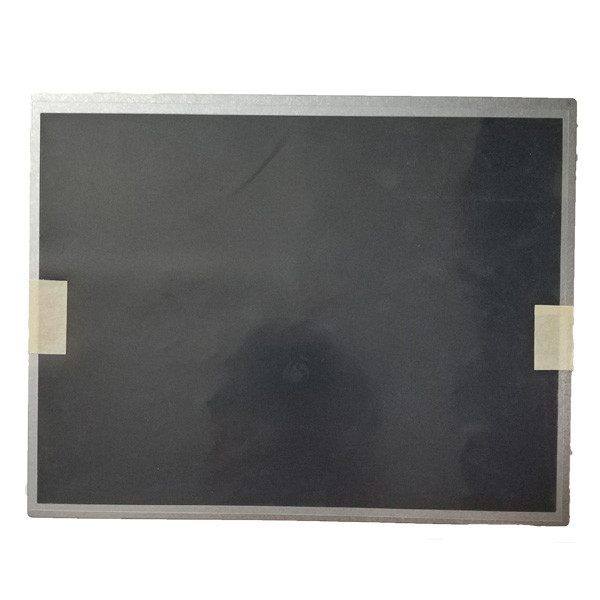

G104V1-T03 10.4 inch Industrial LCD Panel Display
Product Details:
Place of Origin: | CHINA |
Brand Name: | Innolux |
Model Number: | G104V1-T03 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Brand: | Innolux | Model Name: | G104V1-T03 |
---|---|---|---|
Screen Size: | 10.4 Inch | Resolution: | 640(RGB)×480, VGA, 76PPI |
Display Size: | 211.2(W)×158.4(H) Mm | Physical Dimension: | 225.5(W)×176.3(H) ×9.34(D) Mm |
Bezel Opening: | 215.4(W)×161.8(H) Mm | Brightness(cd/m²): | 500 Cd/m² (Typ.) |
Contrast: | 1500:1 (Typ.) (TM) | Apply To: | Industrial |
Product Description
G104V1-T03 10.4 inch Industrial LCD Panel Display
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
Innolux LCD SCREEN G104V1-T03 | |
Panel Brand | Innolux |
Panel Model | G104V1-T03 |
Panel Size | 10.4" |
Panel Type | a-Si TFT-LCD , LCM |
Resolution | 640(RGB)×480, VGA, 76PPI |
Pixel Format | RGB Vertical Stripe |
Display Area | 211.2(W)×158.4(H) mm |
Bezel Opening | 215.4(W)×161.8(H) mm |
Outline Size | 225.5(W)×176.3(H) ×9.34(D) mm |
Surface | Antiglare, Hard coating (3H) |
Brightness | 500 cd/m² (Typ.) |
Contrast Ratio | 1500:1 (Typ.) (TM) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive |
Response Time | 14/9 (Typ.)(Tr/Td) |
Display Colors | 262K 55% NTSC |
Lamp Type | WLED , 50K hours , With LED Driver |
Frequency | 60Hz |
Touch Screen | Without |
Panel Weight | 395±50g |
Signal Interface | CMOS/TTL (1 ch, 6-bit) , 31 pins Connector |
Input Voltage | 3.3/5.0V (Typ.)(VCC) |
Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
G104V1-T03 10.4 inch Industrial LCD Panel Display |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Do you accept sample orders for G104V1-T03 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of G104V1-T03 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for G104V1-T03 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of G104V1-T03 ?
A: we will give you tracking number then you can trace your order from website.
We are one of the professional and experienced suppliers of G104V1-T03 10.4 inch Industrial LCD Panel Display , offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
