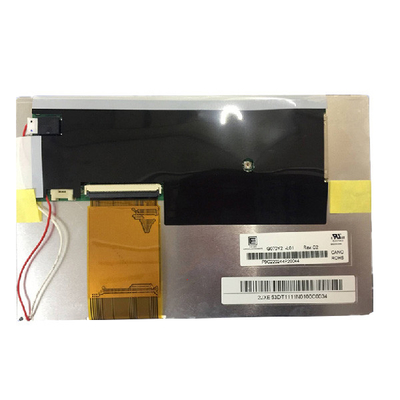

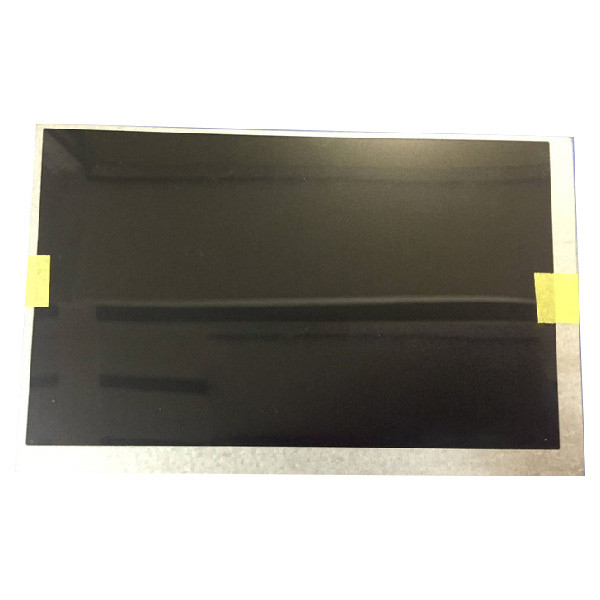

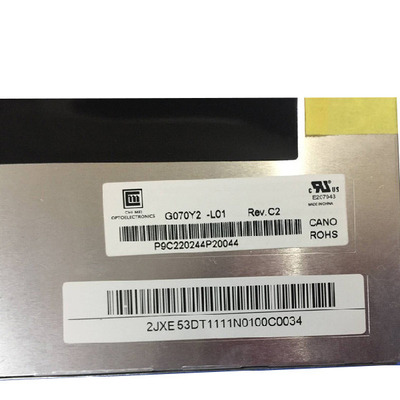

Industrial LCD Panel Display 7 inch tft lcd panel G070Y2-L01
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Innolux |
| Model Number: | G070Y2-L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | Innolux | Model Name: | G070Y2-L01 |
|---|---|---|---|
| Screen Size: | 7.0 " | Resolution: | 800(RGB)×480, WVGA, 133PPI |
| Display Area: | 152.4(W)×91.44(H) Mm | Outline Size: | 165(W)×104(H) ×9.83(D) Mm |
| Bezel Opening: | 154.6(W)×93.64(H) Mm | Brightness(cd/m²): | 500 Cd/m² (Typ.) |
| Contrast: | 600:1 (Typ.) (TM) | Used For: | Industrial / Car Display |
Product Description
Industrial LCD Panel Display 7 inch tft lcd panel G070Y2-L01
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| Innolux LCD SCREEN G070Y2-L01 | |
| Panel Brand | Innolux |
| Panel Model | G070Y2-L01 |
| Panel Size | 7.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×480, WVGA, 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 154.6(W)×93.64(H) mm |
| Outline Size | 165(W)×104(H) ×9.83(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 5/11 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.2M 72% NTSC |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 147/162g (Typ./Max.) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
| Industrial LCD Panel Display 7 inch tft lcd panel G070Y2-L01 | |
