Industrial LCD Panel Display

G057VGE-T01 5.7 inch 640*480 TFT LCD display WLED 33pin Industrial LCD Panel Display

All Category

Floor Standing Digital Signage

G057VGE-T01 5.7 inch 640*480 TFT LCD display WLED 33pin Industrial LCD Panel Display

Brand Name:	Innolux
Model Number:	G057VGE-T01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Manufacturer:

Innolux

Model Name:

G057VGE-T01

Screen Size:

5.7 "

Resolution:

640(RGB)×480, VGA, 141PPI

Display Area:

115.2(W)×86.4(H) Mm

Outline Size:

144(W)×104.6(H) ×12.8(D) Mm

Bezel Opening:

118.2(W)×89.4(H) Mm

Brightness(cd/m²):

450 Cd/m² (Typ.)

Contrast:

800:1 (Typ.) (TM)

Used For:

Industry

Supply Ability:

100000 Unit/Units per Month

Product Description

G057VGE-T01 5.7 inch 640*480 TFT LCD display WLED 33pin Industrial LCD Panel Display

Product details :

TFT LCD Panel, LCD/LED backlight

A Grade , 100% New Original

In Stock

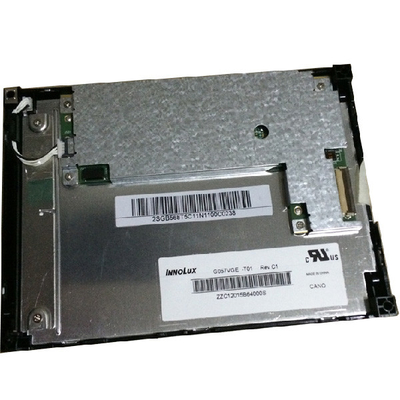

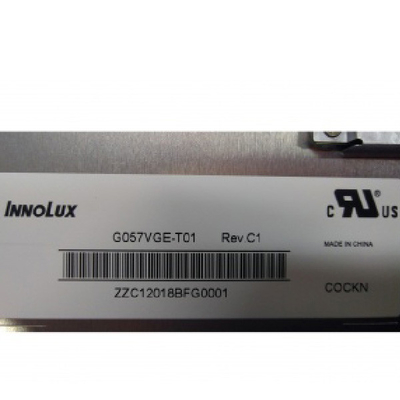

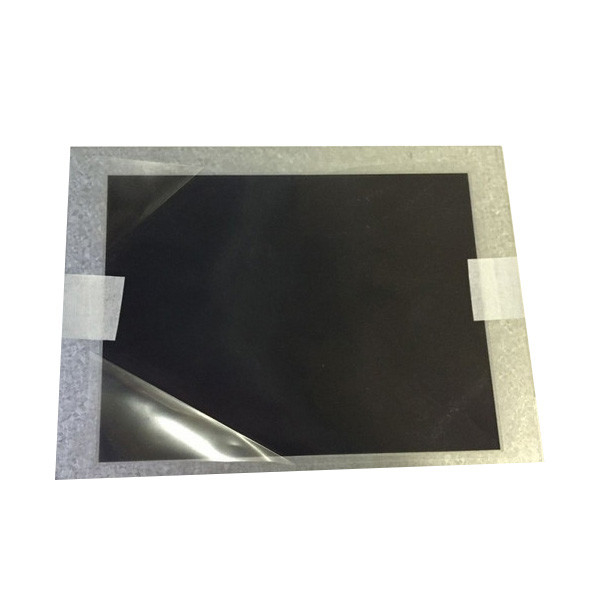

Innolux LCD SCREEN G057VGE-T01
Panel Brand	Innolux
Panel Model	G057VGE-T01
Panel Size	5.7"
Panel Type	a-Si TFT-LCD , LCM
Resolution	640(RGB)×480, VGA, 141PPI
Pixel Format	RGB Vertical Stripe
Display Area	115.2(W)×86.4(H) mm
Bezel Opening	118.2(W)×89.4(H) mm
Outline Size	144(W)×104.6(H) ×12.8(D) mm
Surface	Antiglare (Haze 25%)
Brightness	450 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
Viewing Angle	80/80/70/70 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	15/35 (Typ.)(Tr/Td)
Display Colors	262K 54% NTSC
Lamp Type	WLED , 50K hours , With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	155/170g (Typ./Max.)
Signal Interface	TTL (1 ch, 6-bit) , 33 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C
G057VGE-T01 5.7 inch 640*480 TFT LCD display WLED 33pin Industrial LCD Panel Display

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

G057VGE-T01 5.7 inch 640*480 TFT LCD display WLED 33pin Industrial LCD Panel Display 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ :

Q: Can You declare my order of G057VGE-T01 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How can I trace my order of G057VGE-T01 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can you give me a discount if I need a large quantity of G057VGE-T01 ?

A: Of course!If you make a large order, we will give you a discount.

We are one of the professional and experienced suppliers of G057VGE-T01 5.7 inch 640*480 TFT LCD display WLED 33pin Industrial LCD Panel Display , offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.

*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
