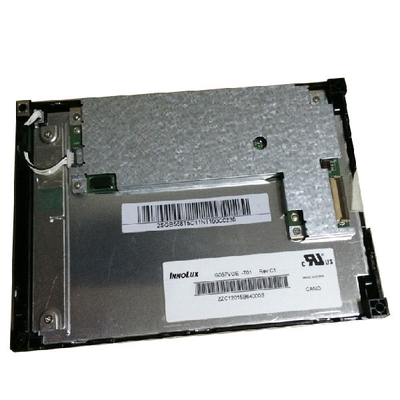

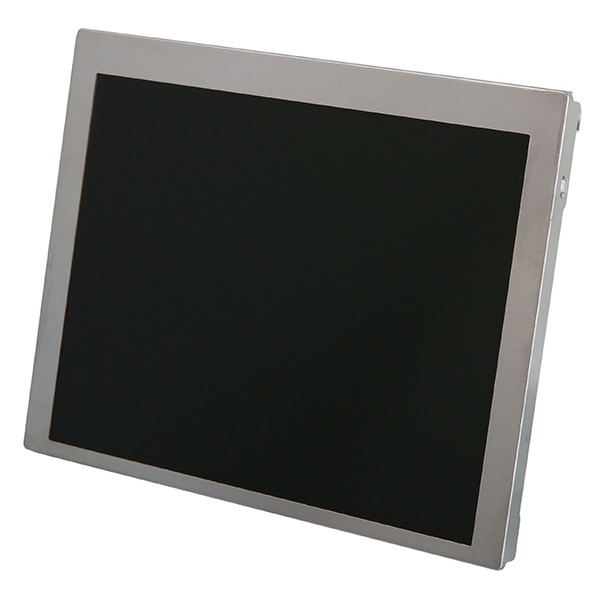

Innolux industrial 5.7 inch Industrial LCD Panel Display G057AGE-T01
Product Details:
Place of Origin: | CHINA |
Brand Name: | Innolux |
Model Number: | G057AGE-T01 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Manufacturer: | Innolux | Model Name: | G057AGE-T01 |
---|---|---|---|
Screen Size: | 5.7 Inch | Resolution: | 320(RGB)×240, QVGA, 70PPI |
Display Area: | 115.2(W)×86.4(H) Mm | Outline Size: | 144(W)×104.6(H) ×12.8(D) Mm |
Bezel Opening: | 118.2(W)×89.4(H) Mm | Brightness(cd/m²): | 500 Cd/m² (Typ.) |
Contrast: | 800:1 (Typ.) (TM) | Used For: | Industry |
Product Description
Innolux industrial 5.7 inch Industrial LCD Panel Display G057AGE-T01
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
Innolux LCD SCREEN G057AGE-T01 | |
Panel Brand | Innolux |
Panel Model | G057AGE-T01 |
Panel Size | 5.7" |
Panel Type | a-Si TFT-LCD , LCM |
Resolution | 320(RGB)×240, QVGA, 70PPI |
Pixel Format | RGB Vertical Stripe |
Display Area | 115.2(W)×86.4(H) mm |
Bezel Opening | 118.2(W)×89.4(H) mm |
Outline Size | 144(W)×104.6(H) ×12.8(D) mm |
Surface | Antiglare, |
Brightness | 500 cd/m² (Typ.) |
Contrast Ratio | 800:1 (Typ.) (TM) |
Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive |
Response Time | 15/35 (Typ.)(Tr/Td) |
Display Colors | 262K 54% NTSC |
Lamp Type | WLED , 50K hours , With LED Driver |
Frequency | 60Hz |
Touch Screen | Without |
Panel Weight | 155/170g (Typ./Max.) |
Signal Interface | TTL (1 ch, 6-bit) , 33 pins Connector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
Innolux industrial 5.7 inch Industrial LCD Panel Display G057AGE-T01 |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
