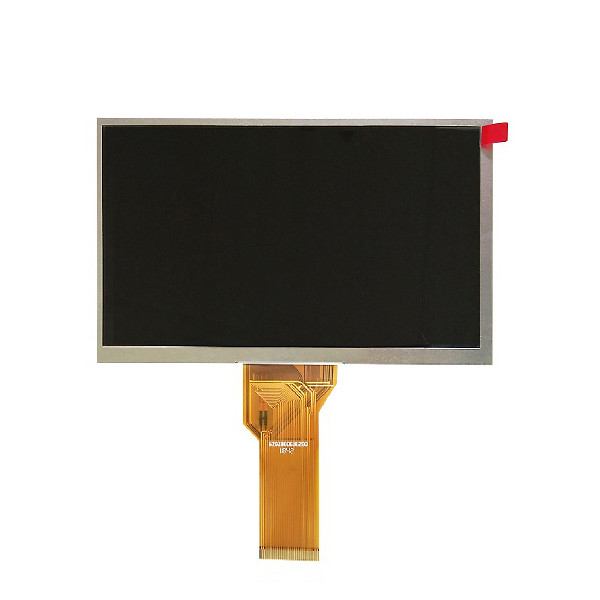

50 Pin LCD Screen Display Panel 7 Inch Tft 800x480 IPS AT070TN94
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Innolux |
| Model Number: | AT070TN94 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | Innolux | Model Name: | AT070TN94 |
|---|---|---|---|
| Screen Size: | 7.0 “ | Resolution: | 800(RGB)×480, WVGA, 134PPI |
| Display Area: | 154.08(W)×85.92(H) Mm | Outline Size: | 164.9(W)×100(H) ×6(D) Mm |
| Bezel Opening: | 156.7(W)×89.1(H) Mm | Brightness(cd/m²): | 400 Cd/m² (Typ.) |
| Contrast: | 500:1 (Typ.) (TM) | Used For: | Car Display |
| High Light: | 50 Pin LCD Screen Display Panel,7 Inch LCD Screen Display Panel,480 IPS 7 inch tft lcd touch screen |
||
Product Description
INNOLUX 50 Pin LCD Screen Display Panel 7 Inch Tft 800*480 AT070TN94
Product details :
| Innolux LCD SCREEN AT070TN94 | |
| Panel Brand | Innolux |
| Panel Model | AT070TN94 |
| Panel Size | 7.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×480, WVGA, 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 154.08(W)×85.92(H) mm |
| Bezel Opening | 156.7(W)×89.1(H) mm |
| Outline Size | 164.9(W)×100(H) ×6(D) mm |
| Surface | Antiglare, |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 25 (Typ.)(Tr+Tf) |
| Display Colors | 262K/16.7M 50% NTSC |
| Lamp Type | 3S9P WLED , 20K hours , Without Driver |
| Touch Screen | Without |
| Panel Weight | 154g (Typ.) |
| Signal Interface | Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC |
| Input Voltage | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| INNOLUX 50 Pin LCD Screen Display Panel 7 Inch Tft 800*480 AT070TN94 | |
