1280×1024 IPS SXGA 19 Inch LCD Panel MV190E0M-N10
|Place of Origin:||CHINA|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 pcs|
|Packaging Details:||Original packaging/conventional packaging box|
|Delivery Time:||7 Days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||100000 Unit/Units per Month|
|Screen Size:||19.0 Inch||Resolution:||1280(RGB)×1024, SXGA, 86PPI|
|Display Size:||374.784(W)×299.827(H) Mm||Physical Dimension:||396(W)×324(H) ×10.4(D) Mm|
|Bezel Opening:||378.8(W)×303.0(H) Mm||Brightness(cd/m²):||250 Cd/m² (Typ.)|
|Contrast:||1000:1 (Typ.) (TM)||Used For:||Computer Monitor|
1024 IPS 19 inch lcd panel,
1280 IPS 19 inch lcd panel,
MV190E0M-N10 lcd panel 19 inch

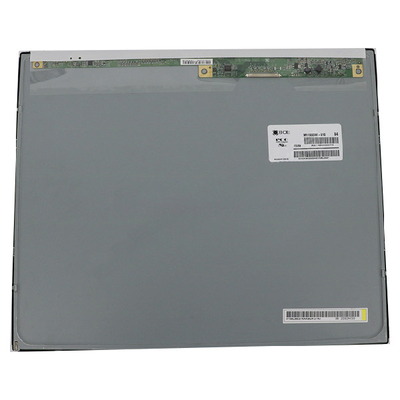

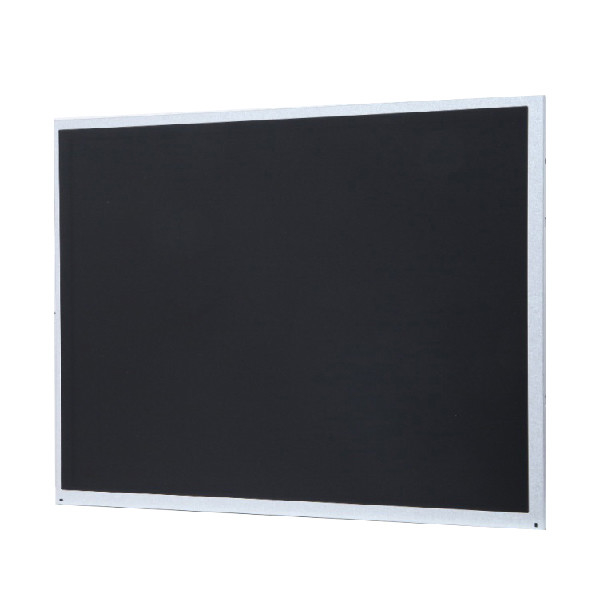

Original 19 inch MV190E0M-N10 LCD Screen Display Panel
Product details :

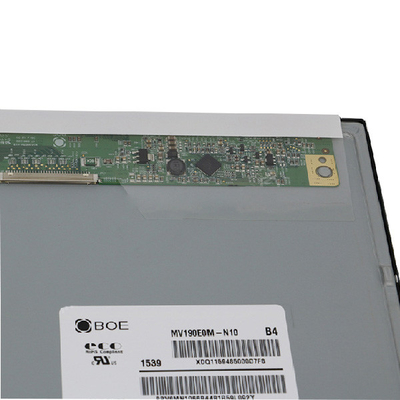

|BOE LCD SCREEN MV190E0M-N10|
|Panel Type||a-Si TFT-LCD , LCM|
|Resolution||1280(RGB)×1024, SXGA, 86PPI|
|Pixel Format||RGB Vertical Stripe|
|Display Area||374.784(W)×299.827(H) mm|
|Bezel Opening||378.8(W)×303.0(H) mm|
|Outline Size||396(W)×324(H) ×10.4(D) mm|
|Surface||Antiglare (Haze 25%), Hard coating (3H)|
|Brightness||250 cd/m² (Typ.)|
|Contrast Ratio||1000:1 (Typ.) (TM)|
|Viewing Angle||89/89/89/89 (Typ.)(CR≥10)|
|Display Mode||ADS, Normally Black, Transmissive|
|Best View on||-|
|Response Time||8/8 (Typ.)(Tr/Td); 14 (Typ.)(G to G)|
|Display Colors||16.7M 72% NTSC|
|Lamp Type||2 strings WLED , 30K hours , Without Driver|
|Panel Weight||1.69Kgs (Typ.)|
|Signal Interface||LVDS (2 ch, 8-bit) , 30 pins Connector|
|Input Voltage||5.0V (Typ.)|
|Environment||Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C|
|Original 19 inch MV190E0M-N10 LCD Screen Display Panel|
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
Q: Can You declare my order of MV190E0M-N10 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods MV190E0M-N10 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90 days warranty .
Q: Can you give me a discount if I need a large quantity of MV190E0M-N10 ?
A: Of course!If you make a large order, we will give you a discount.
We are one of the professional and experienced suppliers of Original 19 inch MV190E0M-N10 LCD Screen Display Panel , offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
