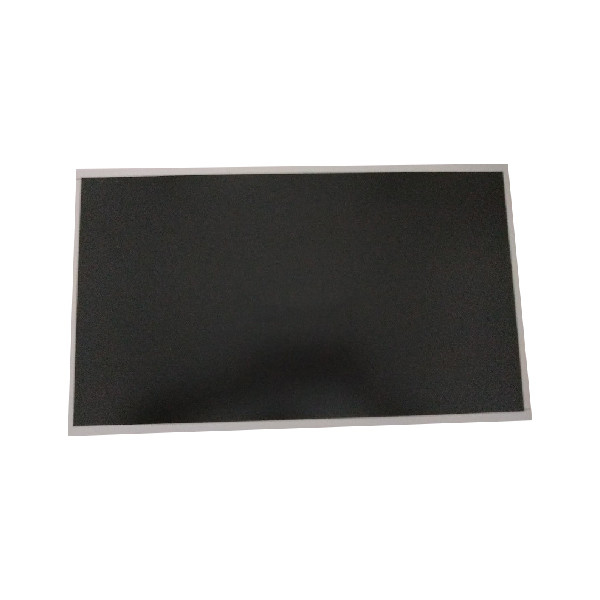

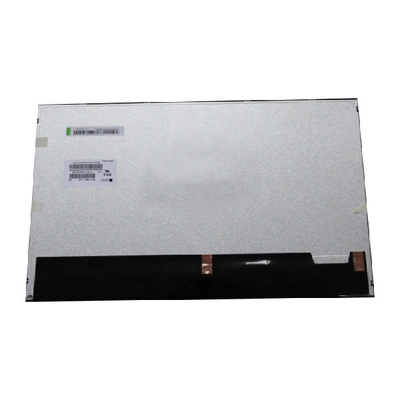

HR215WU1-120 21.5 Inch LCD LVDS Display Panel 60Hz
|Place of Origin:||CHINA|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 pcs|
|Packaging Details:||Original packaging/conventional packaging box|
|Delivery Time:||7 Days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||100000 Unit/Units per Month|
|Screen Size:||21.5 Inch||Resolution:||1920(RGB)×1080, FHD, 102PPI|
|Display Size:||476.64(W)×268.11(H) Mm||Physical Dimension:||495.6(W)×292.2(H) ×11.3(D) Mm|
|Bezel Opening:||479.8(W)×271.3(H) Mm||Brightness(cd/m²):||250 Cd/m² (Typ.)|
|Contrast:||1000:1 (Typ.) (TM)||Used For:||Computer Monitor|
HR215WU1-120 lvds display panel,
21.5'' lvds display panel,
60Hz lvds lcd panel
HR215WU1-120 21.5 inch LVDS LCD Screen Display Panel
Product details :

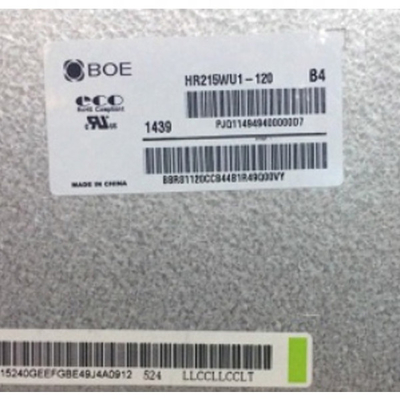

|BOE LCD SCREEN HR215WU1-120|
|Panel Type||a-Si TFT-LCD , LCM|
|Resolution||1920(RGB)×1080, FHD, 102PPI|
|Pixel Format||RGB Vertical Stripe|
|Display Area||476.64(W)×268.11(H) mm|
|Bezel Opening||479.8(W)×271.3(H) mm|
|Outline Size||495.6(W)×292.2(H) ×11.3(D) mm|
|Surface||Antiglare , Hard coating (3H)|
|Brightness||250 cd/m² (Typ.)|
|Contrast Ratio||1000:1 (Typ.) (TM)|
|Viewing Angle||89/89/89/89 (Typ.)(CR≥10)|
|Display Mode||ADS, Normally Black, Transmissive|
|Response Time||14 (Typ.)(Tr+Td)|
|Display Colors||16.7M 72% NTSC|
|Lamp Type||17S4P WLED , 30K hours , Without Driver|
|Panel Weight||1.79Kgs (Typ.)|
|Signal Interface||LVDS (2 ch, 8-bit) , 30 pins Connector|
|Input Voltage||5.0V (Typ.)|
|Environment||Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C|
|HR215WU1-120 21.5 inch LVDS LCD Screen Display Panel|
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
Q: Can I pay my goods HR215WU1-120 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods HR215WU1-120 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: Do you accept sample orders for HR215WU1-120 ?
A: Of course!sample order is welcome !
Q: Can You declare my order of HR215WU1-120 at a very low value ?
A: Yes , we can . pls inform us before shipping .
We are one of the professional and experienced suppliers of HR215WU1-120 21.5 inch LVDS LCD Screen Display Panel , offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
