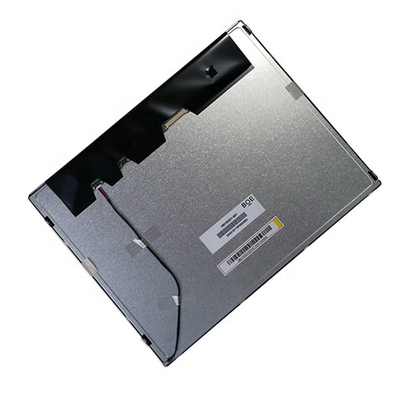

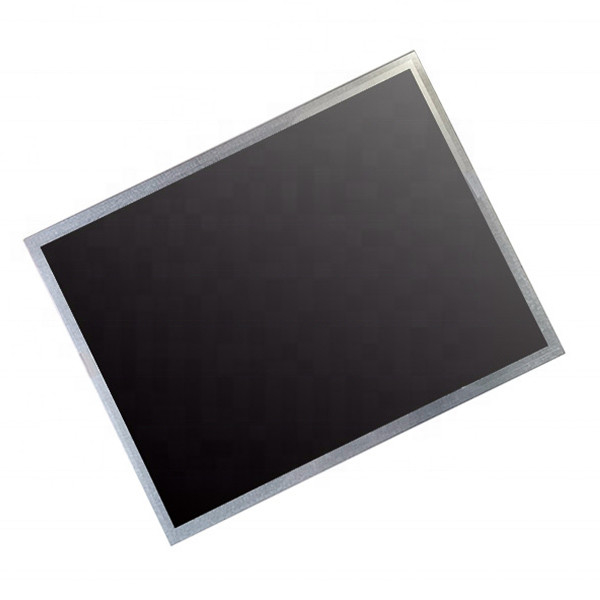

BOE Industrial 1024x768 15 inch Display HM150X01-N01 20 pins LVDS TFT LCD Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | BOE |
| Model Number: | HM150X01-N01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | BOE | Model Name: | HM150X01-N01 |
|---|---|---|---|
| Screen Size: | 15.0 Inch | Resolution: | 1024(RGB)×768, XGA, 85PPI |
| Display Size: | 304.128(W)×228.096(H) Mm | Physical Dimension: | 326.5(W)×253.5(H) ×10(D) Mm |
| Bezel Opening: | 307.3(W)×231.3(H) Mm | Brightness(cd/m²): | 350 Cd/m² (Typ.) |
| Contrast: | 700:1 (Typ.) (TM) | Used For: | Industrial/Medical Imaging |
Product Description
BOE Industrial 1024x768 15 inch Display HM150X01-N01 20 pins LVDS TFT LCD Screen
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| BOE LCD SCREEN HM150X01-N01 | |
| Panel Brand | BOE |
| Panel Model | HM150X01-N01 |
| Panel Size | 15" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768, XGA, 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.3(W)×231.3(H) mm |
| Outline Size | 326.5(W)×253.5(H) ×10(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8 (Typ.)(Tr+Td) |
| Display Colors | 262K/16.2M 60% NTSC |
| Lamp Type | 9S3P WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 850g (Typ.) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 70 °C |
| BOE Industrial 1024x768 15 inch Display HM150X01-N01 20 pins LVDS TFT LCD Screen | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Do you accept sample orders of HM150X01-N01 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods HM150X01-N01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can You declare my order of HM150X01-N01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of HM150X01-N01 ?
A: Of course!If you make a large order, we will give you a discount.
We are one of the professional and experienced suppliers of BOE Industrial 1024x768 15 inch Display HM150X01-N01 20 pins LVDS TFT LCD Screen , offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
