LCD Screen Display Panel

BP101WX1-206 10.1 Inch LCD Screen Display Panel 60Hz For Lenovo Touch Screen Replacement

All Category

Floor Standing Digital Signage

BP101WX1-206 10.1 Inch LCD Screen Display Panel 60Hz For Lenovo Touch Screen Replacement

Brand Name:	BOE
Model Number:	BP101WX1-206
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Manufacturer:

Model Name:

BP101WX1-206

Screen Size:

10.1 Inches

Resolution:

1280(RGB)×800, WXGA, 149PPI

Display Size:

216.96(W)×135.6(H) Mm

Physical Dimension:

228.6(W)×149.2(H) ×4.59(D) Mm

Bezel Opening:

220.46(W)×139.25(H) Mm

Brightness(cd/m²):

330 Cd/m² (Typ.)

Contrast:

600 : 1 (Typ.) (TM)

Used For:

Tablet

Supply Ability:

100000 Unit/Units per Month

Highlight:

BP101WX1-206 LCD Screen Display Panel

10.1'' LCD Screen Display Panel

60Hz 10.1 inch lcd panel

Product Description

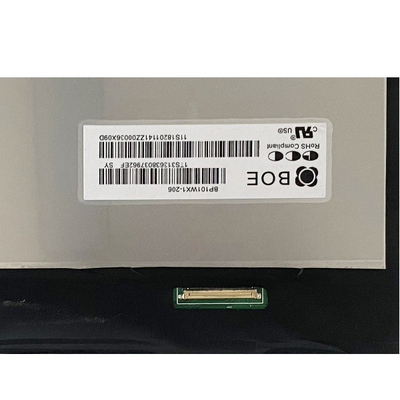

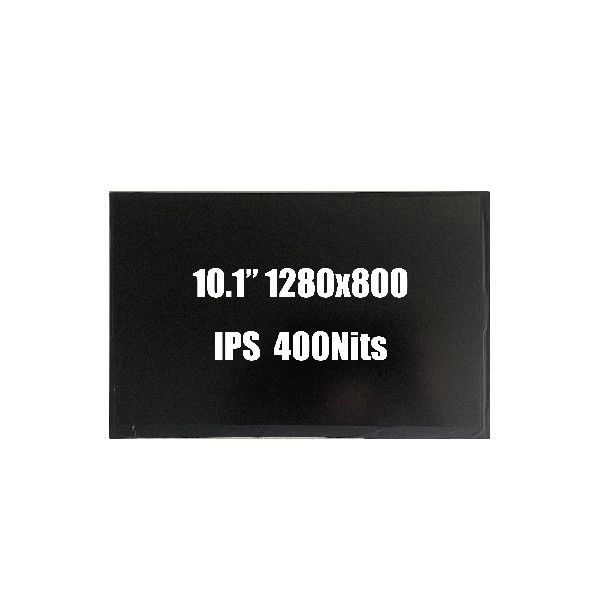

BP101WX1-206 LCD Screen Display Panel for Lenovo Touch Screen Replacement

Product details :

TFT LCD Panel, LCD/LED backlight

A Grade , 100% New Original

In Stock

BOE LCD SCREEN BP101WX1-206
Panel Brand	BOE
Panel Model	BP101WX1-206
Panel Size	10.1 inch
Panel Type	a-Si TFT-LCD , LCM
Resolution	1280(RGB)×800, WXGA, 149PPI
Pixel Format	RGB Vertical Stripe
Display Area	216.96(W)×135.6(H) mm
Bezel Opening	220.46(W)×139.25(H) mm
Outline Size	228.6(W)×149.2(H) ×4.59(D) mm
Surface	Glare (Haze 0%), Hard coating (3H), Antireflection
Brightness	330 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Display Mode	ADS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Display Colors	16.7M 50% NTSC
Lamp Type	WLED , 15K hours , With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	150g (Max.)
Signal Interface	LVDS (1 ch, 8-bit) , 20 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
BP101WX1-206 LCD Screen Display Panel for Lenovo Touch Screen Replacement

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

BP101WX1-206 10.1 Inch LCD Screen Display Panel 60Hz For Lenovo Touch Screen Replacement 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ :

Q: Can You declare my order of BP101WX1-206 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long will I receive my goods BP101WX1-206 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can you give me a discount if I need a large quantity of BP101WX1-206 ?

A: Of course!If you make a large order, we will give you a discount.

Q: If I place order now,when will you ship the goods of BP101WX1-206 ?

A: The order will be shipped within 2-3 working days after received your payment.

We are one of the professional and experienced suppliers of BP101WX1-206 LCD Screen Display Panel for Lenovo Touch Screen Replacement, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.

*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
