10.4 inch TFT LCD Screen BA104S01-200 for Industrial LCD Panel Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | BOE |
| Model Number: | BA104S01-200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | BOE | Model Name: | BA104S01-200 |
|---|---|---|---|
| Screen Size: | 10.4 Inches | Resolution: | 800(RGB)×600, SVGA, 96PPI |
| Display Size: | 211.2(W)×158.4(H) Mm | Physical Dimension: | 236(W)×176.9(H) ×5.9(D) Mm |
| Bezel Opening: | 215.0(W)×162.0(H) Mm | Brightness(cd/m²): | 300 Cd/m² (Typ.) |
| Contrast: | 800 : 1 (Typ.) (TM) | Used For: | Industrial/Medical Imaging |
Product Description

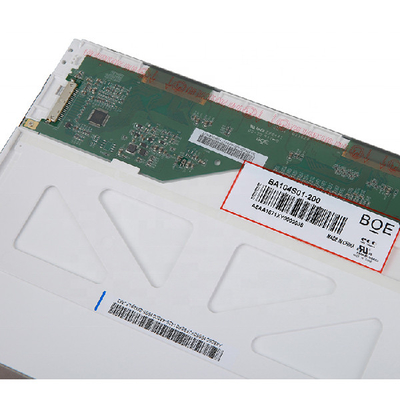

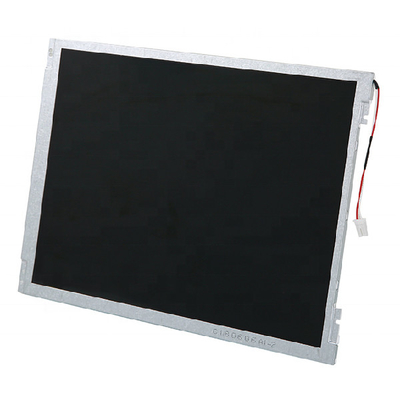

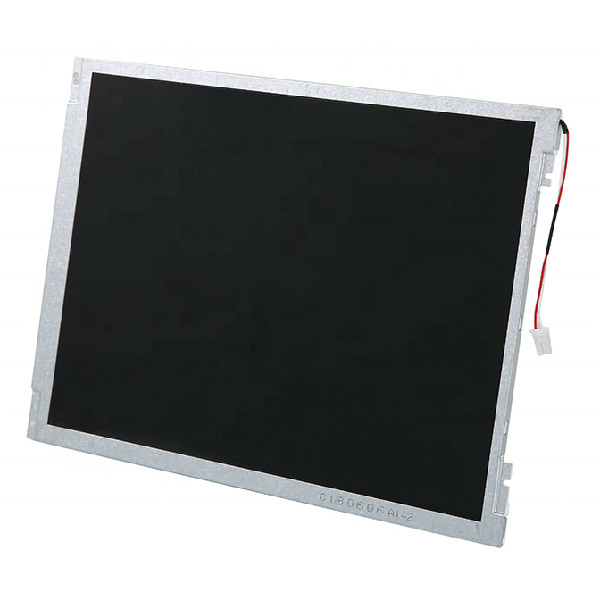

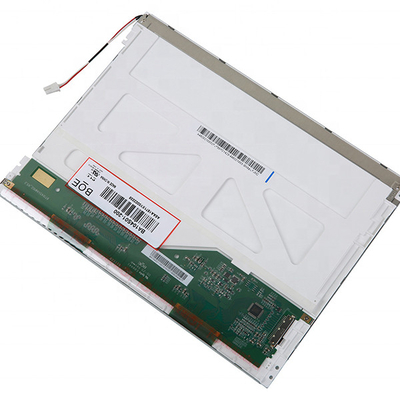

10.4 inch TFT LCD Screen BA104S01-200 for Industrial LCD Panel Display
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| BOE LCD SCREEN BA104S01-200 | |
| Panel Brand | BOE |
| Panel Model | BA104S01-200 |
| Panel Size | 10.4 inch |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×600, SVGA, 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 215.0(W)×162.0(H) mm |
| Outline Size | 236(W)×176.9(H) ×5.9(D) mm |
| Surface | Clear |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally White, Transmissive |
| Best View on | 12 o'clock |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 262K/16.2M 50% NTSC |
| Lamp Type | 6S4P WLED , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 290g (Typ.) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| 10.4 inch TFT LCD Screen BA104S01-200 for Industrial LCD Panel Display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Can you give me a discount if I need a large quantity of BA104S01-200 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of BA104S01-200 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of BA104S01-200 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90 days warranty .
We are one of the professional and experienced suppliers of 10.4 inch TFT LCD Screen BA104S01-200 for Industrial LCD Panel Display, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
