15'' Embedded Open Frame LCD Monitor Capacitive Touch Screen 1024x768 IPS
Product Details:
| Place of Origin: | China |
| Brand Name: | YONGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 Unit/Units per Month |
|
Detail Information |
|||
| Series: | For Business | Display Ratio: | 15 Inch |
|---|---|---|---|
| Aspect Ratio: | 4:3 | Interface Type: | D-SUB, DVI, Usb |
| Resolution: | 1024*768 | Touchscreen Type: | 10 Points Capacitive Touch |
| View Angle: | 80/80/80/80 (R/L/U/D) | Material: | High Strength Cold Rolled Steel |
| High Light: | 15'' Open Frame LCD Monitor,Embedded Open Frame LCD Monitor,768 IPS capacitive touch screen monitor |
||
Product Description

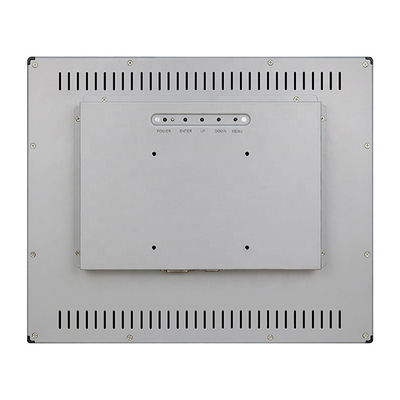

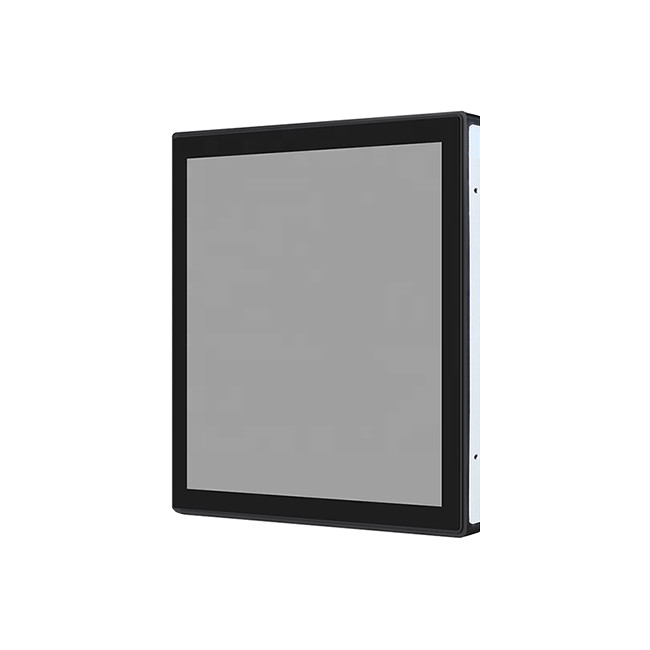

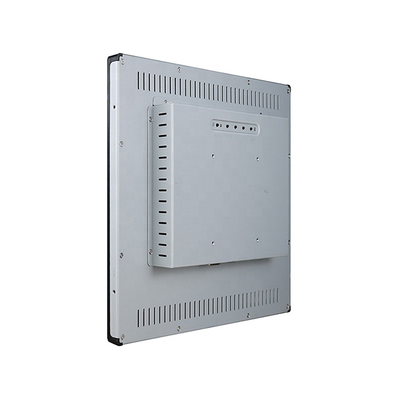

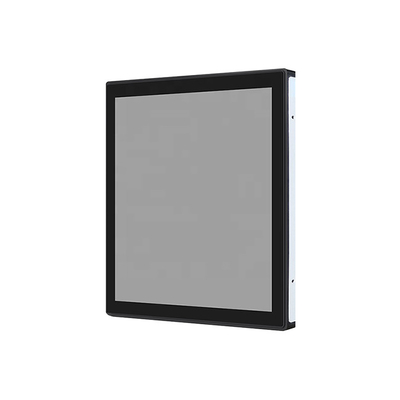

15 inch embedded monitor with capacitive touchscreen for Open Frame LCD Monitor
Feature:
1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof and dustproof .
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel , high sensitive and fast-response.
4. High performance mainboard, 7x24 continuous operation.
5.Support wall mounting,embedded mounting,desk stand mouting etc.
Product details :
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+ |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (4 or 5 wires restive touch, IR touch optional) |

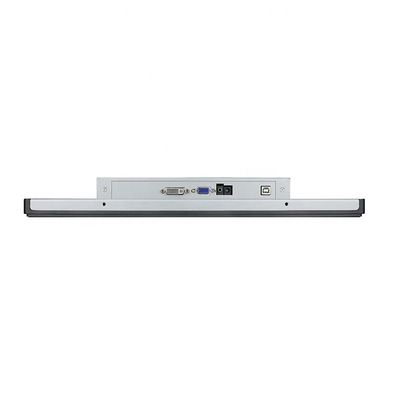

| Signal Ports | |
| VGA | 1×VGA |
| DVI | 1×DVI |
| HDMI | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V , 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 80% , storage :5% to 90% |
| Packing Details | |
| Net weight | 2.5kg |
| Gross weight | 3kg |
| Product Dimension | 35.115×27.515×5.18cm |
| Packing size | 47*44*18cm |
| Accessories | Power adapter, VGA cable, USB touch cable,embedded screws,user manual, warranty card |
| Other | |
| Mounting | VESA mounting |
| embedded mounting screws | |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 3 years warranty, one year free warranty |
| Certificates | CE, FCC, RoHS |
Drawing:
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Why choose YONGS?
A: 1. Professional Industrial open frame monitor manufacture for years with great experience .
2. Own factory , you could share direct factory price .
3. Quality guaranteed by our QC.
4. Low price , but in high quality .
5. OEM/ODM supported
Q: What's the time of delivery ?
A: It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample order ,
7-15 working days for mass production after receipt of payments .
Q: What paying methods do you accept ?
A: T/T and WestUion .
Q: How is your warranty policy for goods ?
A: We focous on our after-sale service , and all our products share 12 months' warranty .
