IP65 19 Inch Open Frame LCD Monitor waterproof 400 nits
All Category

LCD Screen Display Panel

Industrial LCD Panel Display

LCD Touch Panel Display

LCD Laptop Screen

Stretched Bar LCD

Medical Mobile Workstation

LCD Screen Accessories

Sunlight Readable Monitor

Open Frame LCD Monitor

LCD Video Wall

Floor Standing Digital Signage

Digital Signage And Displays

Medical LCD Panel

Portable Monitor

Stretched Bar LCD Display

Multi Touch Screen Panel
Contact Us
Darian
Contact Now
  • name
  • name
  • name
  • name

IP65 19 Inch Open Frame LCD Monitor waterproof 400 nits

Brand Name: YONGS
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
China
Series:
For Business
Display Ratio:
19 Inch
Aspect Ratio:
16:9
Type:
Resistive
Resolution:
1440*900
Brightness (cd/m²):
400nits
View Angle:
80/80/80/80(R/L/U/D)
I/O Interface:
VGA+DVI
Supply Ability:
1000 Unit/Units per Month
Highlight:

IP65 Open Frame LCD Monitor

,

19'' Open Frame LCD Monitor

,

400 Nits 19 inch open frame monitor

Product Description

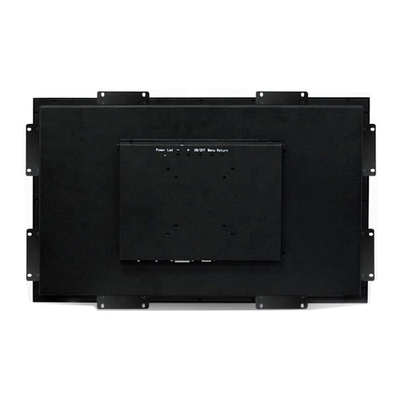

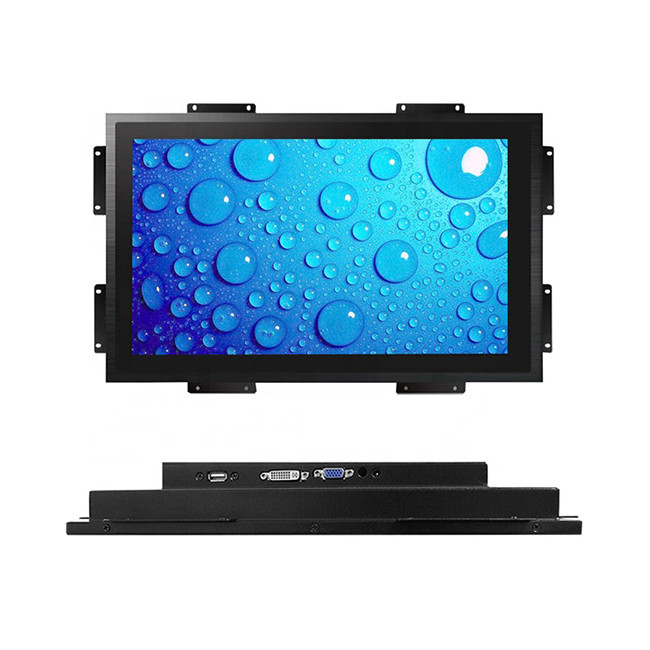

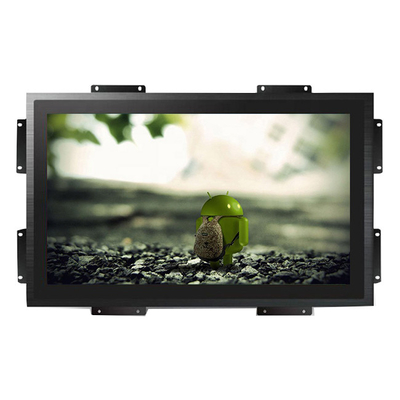

10mm thickness IP65 waterproof front panel 19 inch industrial touch screen Open Frame LCD Monitor



Feature:

1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof and dustproof .
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel , high sensitive and fast-response.
4. High performance mainboard, 7x24 continuous operation.
5. Support wall mounting,embedded mounting,desk stand mouting etc.



Product details :



LCD panel
Panel size 19"
Resolution 1440*900
Aspect ratio 16:9
Support Color 16.7M colors
Brightness (cd/m²) 400+
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options (4 or 5 wires restive touch, IR touch optional)
Signal Ports
VGA 1×VGA
DVI 1×DVI
HDMI optional
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect.
Power Supply
External Power Supply AC 100 - 240V , 50-60Hz
Working voltage DC 12V
Power consumption ≤35W
Enclosure
Material Aluminum Alloy
Color Black, white, Silver , color can be customized
VESA mounting 75×75mm/100×100mm
IP grade front panel IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity operating: 10% to 80% , storage :5% to 90%
Packing Details
Net weight 4kg
Gross weight 4.5kg
Product Dimension 49.7×34.3×5.15cm
Packing size 53*47*18cm
Accessories Power adapter, VGA cable, USB touch cable,embedded screws,user manual,
warranty card
Other
Mounting open frame
embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 3 years warranty, one year free warranty
Certificates CE, FCC, RoHS

IP65 19 Inch Open Frame LCD Monitor waterproof 400 nits 0



Why Choose Us :



According to customers' various requests,


we can match all accessories which inclusive of driver board,


touch-screen, LED backlight & LVDS cables. TFT LCD,


LCD panel, LCD display,LCD screen, LCD monitor,


LCD module from 2.2 inch to 88 inch.


Quality promised, 100% original,fast delivery,


also enjoy one year guarantee !



Shipping and Package :

IP65 19 Inch Open Frame LCD Monitor waterproof 400 nits 1



1)All of our product will be testing before shipping . So you can be assured the quality of our products



2) All Panels are packed with new and firm carton, capable of long distance transportation.



3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT



4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.



FAQ :



Q: Why choose YONGS?

A: 1. Professional Industrial open frame monitor manufacture for years with great experience .

2. Own factory , you could share direct factory price .

3. Quality guaranteed by our QC.

4. Low price , but in high quality .

5. OEM/ODM supported





Q: What's the time of delivery ?

A: It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample order ,

7-15 working days for mass production after receipt of payments .





Q: What paying methods do you accept ?

A: T/T and WestUion .





Q: How is your warranty policy for goods ?

A: We focous on our after-sale service , and all our products share 12 months' warranty .
