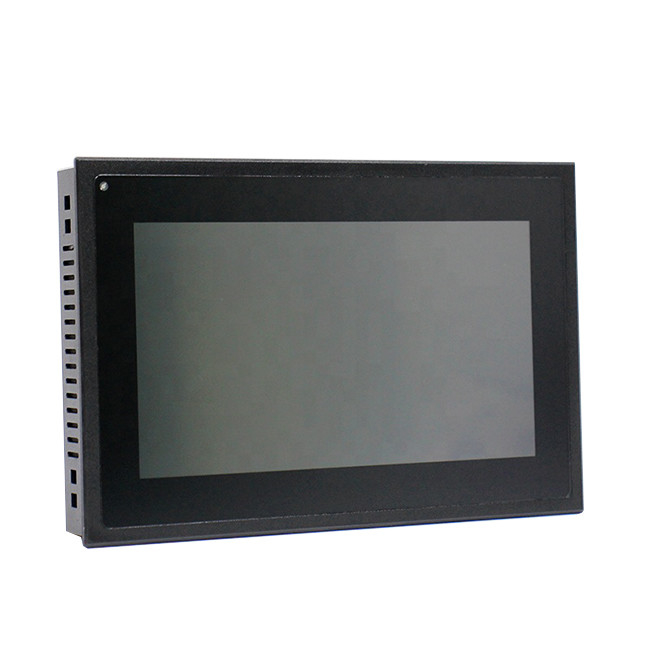

7 Inch Waterproof Sunlight Readable Monitor 1024x600 IPS
Product Details:
| Place of Origin: | China |
| Brand Name: | YONGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 Unit/Units per Month |
|
Detail Information |
|||
| Type: | Capacitive | Color: | Black |
|---|---|---|---|
| Panel Size: | 7 Inch | Resolution: | 1024*600 |
| View Angle: | LED 80/80/80/80 (R/L/U/D) | I/O Interface: | HD-MI+USB + VGA |
| Display Type: | 16:9 Ratio | Material: | High Strength Cold Rolled Steel |
| High Light: | 7'' Sunlight Readable Monitor,Waterproof Sunlight Readable Monitor,600 IPS touch screen lcd display |
||
Product Description
High bright 1000nit lcd display 7 inch Sunlight Readable Monitor waterproof touch screen work with raspberry pi
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Multi-points PCAP touch panel , high sensitive and fast-response
4. High performance mainboard, 7x24 continuous operation.
5. Adopt HDMI 1.4 Digital decoding scheme, strong compatibility
6.1000 nits high brightness,sunlight readable.
7.Front panel IP65 waterproof.
| LCD panel | |
| Panel size | 7" |
| Resolution | 1024*600 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits,sunlight readable |
| Contrast ratio | 400:1 |
| View angle | 85°/85°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (4 wires resistive touch, IR touch optional) |
| Singal Ports | |
| VGA | 1×VGA |
| HDMI | 1×HDMI |
| DVI | optional |
| AV | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤10W |
| Enclosure | |
| Appearance | Flat panel , demountable open frame for mounting |
| Material | aluminium alloy bezel+High strength cold rolled steel back case |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75mm |
| IP Grade | front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 90% , storage :5% to 90% |
| Packing Details | |
| Net weight | 1.85kg |
| Gross weight | 2.5kg |
| Product Dimension | 19.1×12.8×3.4 cm |
| Packing size | 37×28×10 cm |
| Accessories | Power adapter, HDMI /VGAcable, USB touch cable |
| Other | |
| Mounting | Embedded screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 3 years warranty, one year free warranty |
| Certificates | CE, FCC, RoHS |
Applications:
Mainly Used in Closed-Circuit Surveillance Systems,
Car Video, Car navigation system,PC Operating Systems,
Vehicle Navigation Systems Supporting Display,
Can Also be Applied for Industrial Automation,
Industrial control system
Medical Machine Equipments,
Electric Power,
Petrification,
POS, ATM
Instrumentation Display Systems.
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Why choose YONGS?
A: 1. Professional Touchscreen monitor manufacture for years with great experience .
2. Own factory , you could share direct factory price .
3. Quality guaranteed by our QC.
4. Low price , but in high quality .
5. OEM/ODM supported
Q: What's the time of delivery ?
A: It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample order , 15-20 working days for mass production after receipt of payments .
Q: What paying methods do you accept ?
A: T/T and WestUion .
Q: How is your warranty policy for goods ?
A: We focous on our after-sale service , and all our products share 12 months' warranty .
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
