LD550EUN-UHB1 LCD Video Wall Screen 55'' 1920×1080 IPS
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LD550EUN-UHB1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LD550EUN-UHB1 | Screen Size: | 55.0 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 [FHD] 40PPI | Active Area(mm): | 1209.6 × 680.4 Mm (H×V) |
| Outline(mm): | 1227.4 × 698.2 × 32.2 Mm (H×V×D) | Bezel Area(mm): | 1215.6 × 686.4 Mm (H×V) |
| Luminance: | 500 (Typ.) | Contrast Ratio: | 1300: 1 (Typ.) [Transmission] |
| High Light: | 1080 IPS lcd video wall screen,55'' lcd video wall screen,1920 IPS digital screen wall |
||
Product Description

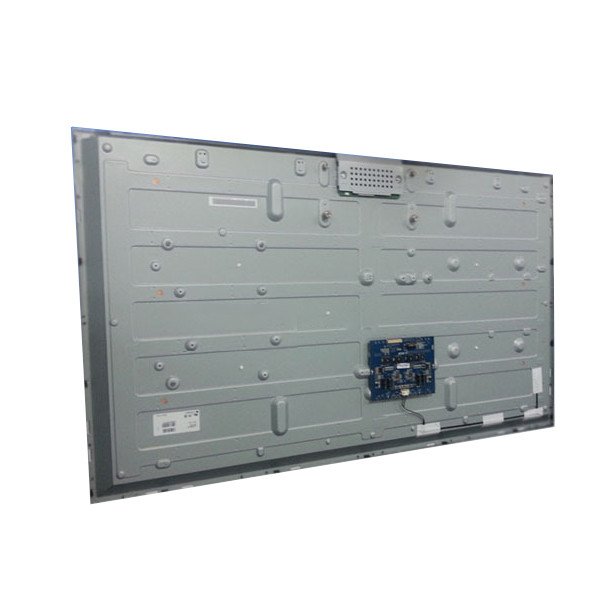

55.0 inch LCD Video Wall LCD panel LD550EUN-UHB1
Product details :
| LG Display LCD SCREEN LD550EUN-UHB1 | |
| manufacturer | LG Display |
| Model Name | LD550EUN-UHB1 |
| screen size | 55 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1920(RGB)×1080 [FHD] 40PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 1209.6 × 680.4 mm (H×V) |
| physical dimension | 1227.4 × 698.2 × 32.2 mm (H×V×D) |
| Visual size | 1215.6 × 686.4 mm (H×V) |
| surface treatment | Matte (Haze 10%), Hard coating (3H) |
| Brightness | 500cd/m² (Typ.) |
| Contrast | 1300:1 (Typ.) (TM) |
| Best angle | Full view |
| Optical mode | IPS, normally black display, transmissive |
| Viewing angle | 89/89/89/89 (Min.)(CR≥10) |
| Responding time | 8 (Typ.)(G to G) ms |
| Number of color | 16.7M/1.07B, 72% NTSC |
| Backlight type | WLED, 60K hours, with LED driver |
| Stitching | 17.8 mm (active to active seam) |
| Apply to | Digital signage / multi-screen |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS(2 ch, 8/10-bit), connector, 51 pins |
| Supply voltage | 12.0V (Typ.) |
| Maximum rating | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
| 55.0 inch LCD Video Wall LCD panel LD550EUN-UHB1 | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: Can I pay my order of LD550EUN-UHB1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders of LD550EUN-UHB1 ?
A: Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of LD550EUN-UHB1 ?
A: The order will be shipped within 2-3 working days after received your payment.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
