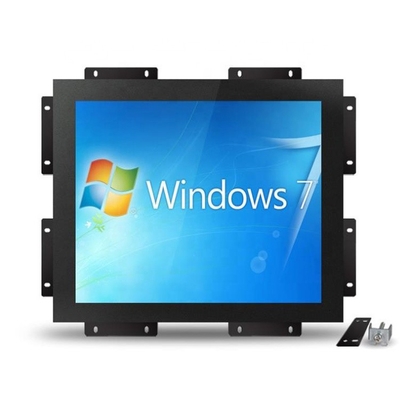

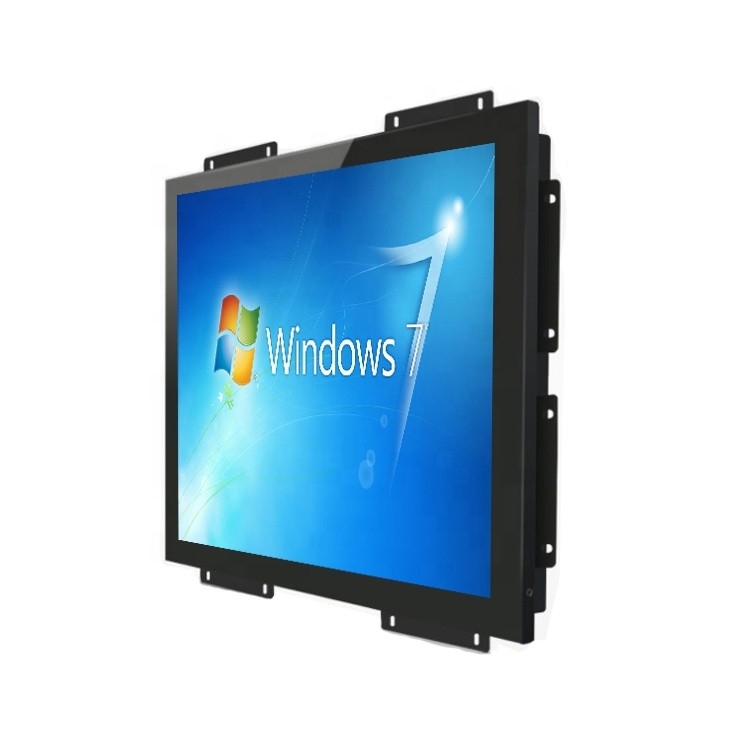

Embedded 15 Inch Industrial Open Frame Monitor 1024×768 IPS
Product Details:
| Place of Origin: | China |
| Brand Name: | YONGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 Unit/Units per Month |
|
Detail Information |
|||
| Application: | Industrial | Display Ratio: | 15" |
|---|---|---|---|
| Response Time: | 5ms | Brightness: | 400cd/m |
| Interface Type: | D-SUB, DVI, Support HDMI Input, RJ45 Touch Interface | Resolution: | 1024 X 768 |
| View Angle: | H170/V160 | Touchscreen Interface: | RJ45 |
| High Light: | 768 IPS Embedded 15 inch industrial open frame monitor,15 inch industrial open frame monitor,1024 IPS 15 inch industrial touch screen monitor |
||
Product Description
Embedded installation 15inch industrial Open Frame LCD Monitor for medical equipments
Feature:
Industrial grade LED panel
Black and white Metal casing option
Resistive /capacitive touchscreen option
VGA/HDMI/DVI/RJ45 interface
Can work in harsh environments
Support DC12V-DC24V wide voltage input
Suport work temperatures -20° to 70°
Embedded/panel mount/card buckle/VESA holes installation
Effective prevention of external magnetic interference
Multi-language,Support Windows/Linux OS
Anti-surge design, the voltage rises 280V instantly
GB2423 standard Anti-vibration design
Be used in transportation,industrial, offshore and other working environments
Available size: 12"/15"/15.6"/17"/19"/21.5"/22" option
Product details :
| LCD panel | Panel size | 15inch |
| Resolution | 1024×768 | |
| Aspect ratio | 4:3 | |
| Brightness | 400cd/m2 | |
| Contrast ratio | 1000:1 | |
| Display color | 16.7M | |
| View angle | H170; V160 | |
| Pixel pitch | 0.264mm | |
| Response time | 5ms | |
| Backlight | LED backlight | |
| Life | >50000h | |
| Touchscreen Option |
Touchscreen | 10points Capacitive touchscreen ( 5-wire resistive touchscreen option) |
| Touch number | >50 million | |
| Touch way | Pressure sensing | |
| Touchscreen interface | RJ45 interface | |
| Other | Power supply | DC12-24V/4A, AC100-240V/50-60Hz, |
| Power Consumption | <48W | |
| Work temperature | -10℃-60℃ | |
| Environment humidity | 10%-90%(No condensation) | |
| Language | Multi-language | |
| Dimension | 359.5×284×55.5mm | |
| Casing | Metal casing | |

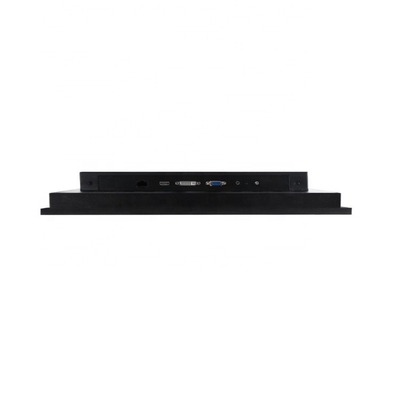

| Interface | 1xVGA,1xDVI, 1xHDMI,1xAudio I/O,1xRJ45(for touchscreen),1xDC power | |

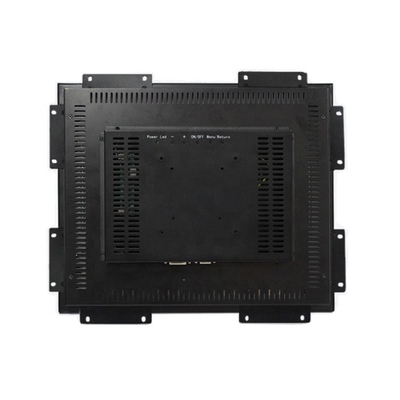

| Installation | Embedded/Panel mount/VESA holes/Wall-mounted/desktop | |
| Accessories | Manual,Adapter, Power cord,VGA cable,Buckles,Embedded irons |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Why choose YONGS?
A: 1. Professional Industrial open frame monitor manufacture for years with great experience .
2. Own factory , you could share direct factory price .
3. Quality guaranteed by our QC.
4. Low price , but in high quality .
5. OEM/ODM supported
Q: What's the time of delivery ?
A: It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample order ,
7-15 working days for mass production after receipt of payments .
Q: What paying methods do you accept ?
A: T/T and WestUion .
Q: How is your warranty policy for goods ?
A: We focous on our after-sale service , and all our products share 12 months' warranty .
