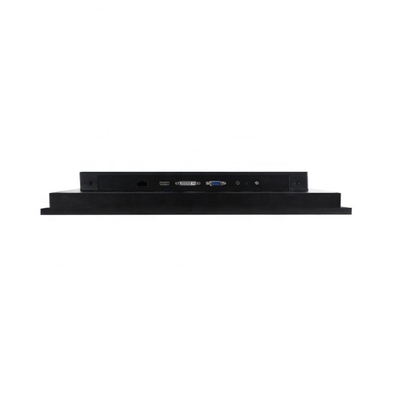

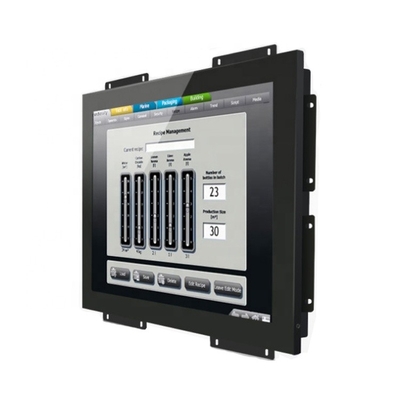

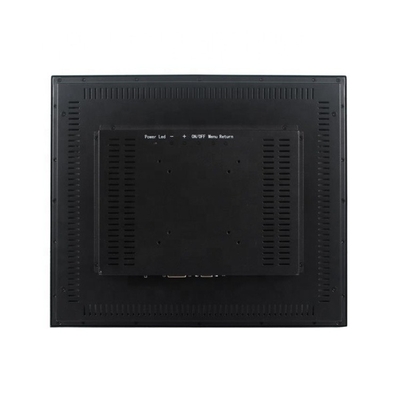

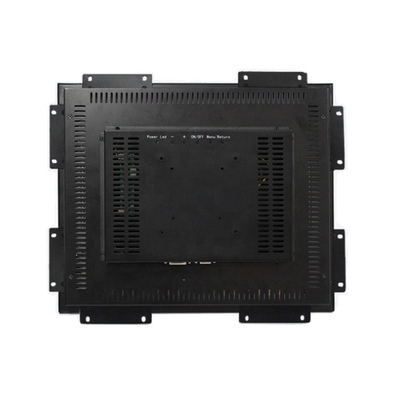

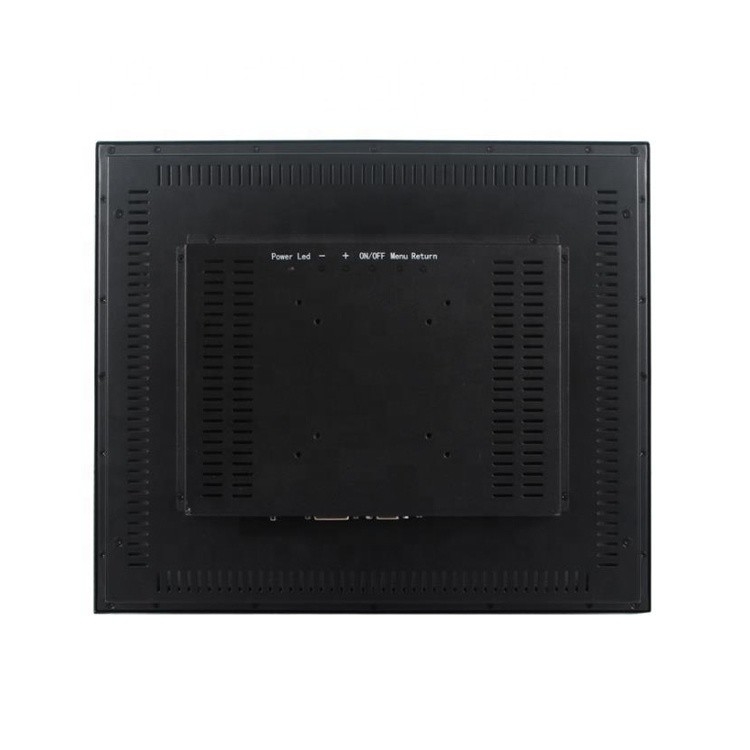

17'' Industrial Open Frame LCD Monitor 1280×1024 IPS

Brand Name: YONGS
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
China
Application:
Industrial
Display Ratio:
17"
Vertical Viewing Angle:
160°
Horizontal Viewing Angleinterface:
170°
Response Time:
5ms
Brightness:
400cd/m
Interface Type:
DVI, Support HDMI Input, VGA, Usb
Color:
Black, Black/White Option
Supply Ability:
1000 Unit/Units per Month
Highlight:

17'' Open Frame LCD Monitor

,

1024 IPS Open Frame LCD Monitor

,

1280 IPS industrial lcd touch screen monitor

Product Description

Metal casing 17 inch embedded industrial touch screen monitor for Information kiosk



Feature:

Industrial grade LED panel
Black and white Metal casing option
Resistive /capacitive touchscreen option
VGA/HDMI/DVI/RJ45 interface
Can work in harsh environments
Support DC12V-DC24V wide voltage input
Suport work temperatures -20° to 70°
Embedded/panel mount/card buckle/VESA holes installation
Effective prevention of external magnetic interference
Multi-language,Support Windows/Linux OS
Anti-surge design, the voltage rises 280V instantly
GB2423 standard Anti-vibration design

Be used in transportation,industrial, offshore and other working environments



Available size: 12"/15"/15.6"/17"/19"/21.5"/22" option



Product details :



LCD panel Panel size 17inch
Resolution 1280×1024
Aspect ratio 4:3
Brightness 400cd/m2
Contrast ratio 1000:1
Display color 16.7M
View angle H170; V160
Pixel pitch 0.264mm
Response time 5ms
Backlight LED backlight
Life >50000h
Touchscreen
Option		 Touchscreen 10points Capacitive touchscreen ( 5-wire resistive touchscreen option)
Touch number >50 million
Touch way Pressure sensing
Touchscreen interface RJ45 interface
Other Power supply DC12-24V/4A, AC100-240V/50-60Hz,
Power Consumption <48W
Work temperature -20℃-70℃
Environment humidity 10%-90%(No condensation)
Language Multi-language
Dimension 391.5×326.7×55.5mm
Casing Whole aluminum alloy casing
Interface 1xVGA,1xDVI, 1xHDMI,1xAudio I/O,1xRJ45(for touchscreen),1xDC power
Installation Embedded/Panel mount/VESA holes/Wall-mounted/desktop
Accessories Manual,Adapter, Power cord,VGA cable,Buckles,Embedded irons





Why Choose Us :



According to customers' various requests,


we can match all accessories which inclusive of driver board,


touch-screen, LED backlight & LVDS cables. TFT LCD,


LCD panel, LCD display,LCD screen, LCD monitor,


LCD module from 2.2 inch to 88 inch.


Quality promised, 100% original,fast delivery,


also enjoy one year guarantee !



Shipping and Package :

17'' Industrial Open Frame LCD Monitor 1280×1024 IPS 0



1)All of our product will be testing before shipping . So you can be assured the quality of our products



2) All Panels are packed with new and firm carton, capable of long distance transportation.



3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT



4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.



FAQ :



Q: Why choose YONGS?

A: 1. Professional Industrial open frame monitor manufacture for years with great experience .

2. Own factory , you could share direct factory price .

3. Quality guaranteed by our QC.

4. Low price , but in high quality .

5. OEM/ODM supported





Q: What's the time of delivery ?

A: It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample order ,

7-15 working days for mass production after receipt of payments .





Q: What paying methods do you accept ?

A: T/T and WestUion .





Q: How is your warranty policy for goods ?

A: We focous on our after-sale service , and all our products share 12 months' warranty .
