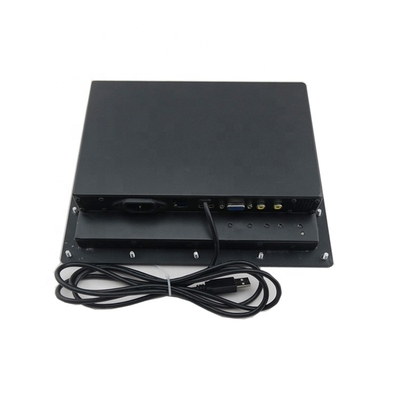

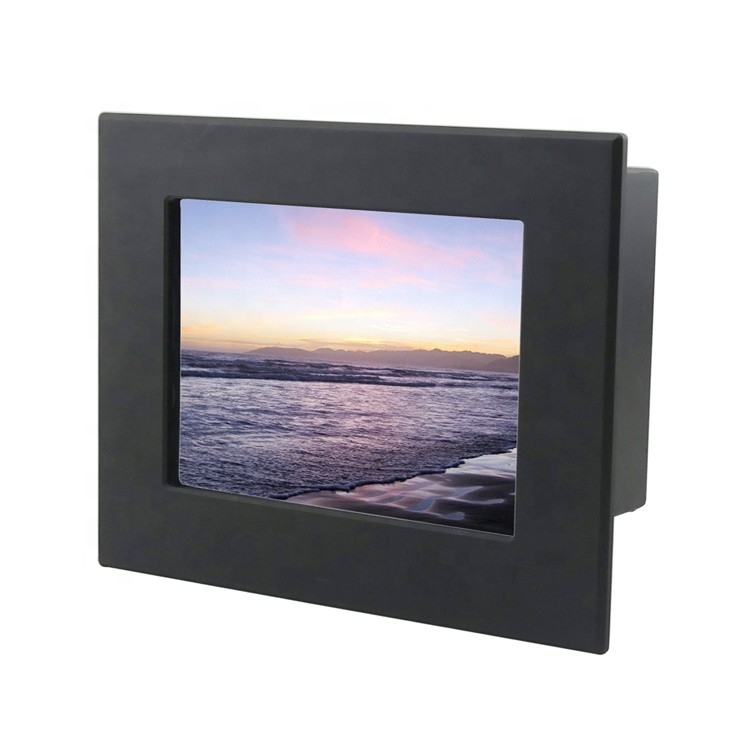

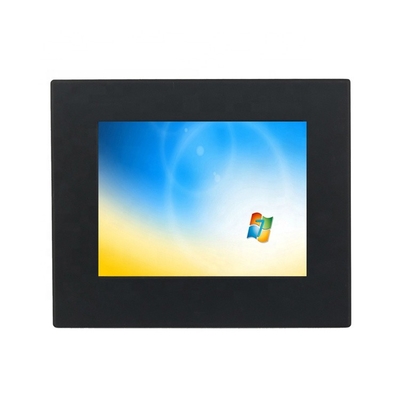

Panel Mount 8.4'' Sunlight Readable Computer Monitor IP65
Product Details:
| Place of Origin: | China |
| Model Number: | H2105 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 Unit/Units per Month |
|
Detail Information |
|||
| Brand Name: | Neutral | Aspect Ratio: | 4:3 |
|---|---|---|---|
| Interface: | Support VGA/HDMI Input | Front Panel: | IP65 Front Panel |
| Casing: | Aluminum Structure | Touchscreen: | Capacitive /resistive Touchscreem |
| Input Voltage: | 100~240V AC, 50/60Hz | Backlight: | LED Backlight |
| High Light: | Panel Mount sunlight readable computer monitor,8.4'' sunlight readable computer monitor,IP65 industrial lcd monitor |
||
Product Description
Panel mount 8.4 inch industrial lcd monitor with 1000nits Sunlight Readable Monitor
2. Gasket sealed front panel.
3. IP65 front panel.
4. LED backlit, 1000nits brightness, sunlight readable.
5. Vandal-proof projected capacitive touch screen.
6. USB touch controller, support Win7 and Linux.
7. HDMI, VGA and composite video inputs.
8. 100-240V AC power input.
9. Powder coated frame.
| Model No. | YONGS-0840 | |
| LCD panel | Size/Aspect ratio | 8.4''/4:3 |
| Pixel numbers | 800(H)*600(V) | |
| Brightness | 1000 cd/m2 | |
| Contrast Ratio | 600:1 | |
| Viewing Angle | 160° (H)/140° (V) | |
| Colors | 16.2 M | |
| Input terminals | PC signal | VGA, HDMI, Composite VIdeo*2 |
| Power plug | AC power connector | |
| OSD Control | Menu, Auto, Up, Down, Power | |
| Operating condition | Temperature | -10°C to 50°C (Operating) |
| -20°C to 70°C (Storage ) | ||
| Humidity | 10% RH to 90% RH (Operating) | |
| 10% RH to 90% RH (Storage) | ||
| Touchscreen | Vandal-proof PCAP (>92% light transmission) | |
| Interface: USB | ||
| Power | Input Voltage | 100-240V AC |
| Operation | 30 watt | |
| Stand-by | ‹5 watt | |
| Weight | N.W./G.W. | 1.5Kgs/2.8Kgs |
| External Dimension | 419.1*346.71*56 mm | |
| Mount | Panel Mount | |
| Optional | Input: VGA+DVI,VGA+DVI+AV | |
| Touch screen(Resistive,Capacitive) | ||
| PC Mainboard | ||
| Speakers | ||
| Protect glass(Screen protected,double coating) | ||
Applications:
Industrial automation, industrial control systems, outdoor kiosk
Car Video, Car navigation system,PC Operating Systems,
Vehicle Navigation Systems Supporting Display,
Medical Machine Equipments,
Electric Power,
Petrification,
ATM machine
Instrumentation Display Systems.
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Why choose YONGS?
A: 1. Professional Touchscreen monitor manufacture for years with great experience .
2. Own factory , you could share direct factory price .
3. Quality guaranteed by our QC.
4. Low price , but in high quality .
5. OEM/ODM supported
Q: What's the time of delivery ?
A: It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample order , 15-20 working days for mass production after receipt of payments .
Q: What paying methods do you accept ?
A: T/T and WestUion .
Q: How is your warranty policy for goods ?
A: We focous on our after-sale service , and all our products share 12 months' warranty .
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
