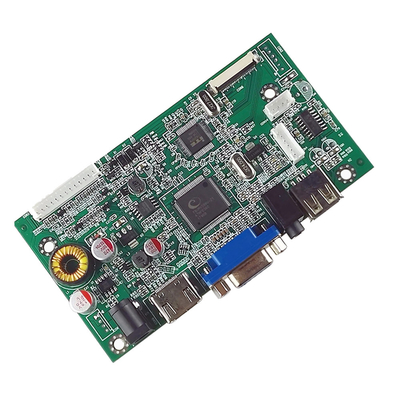

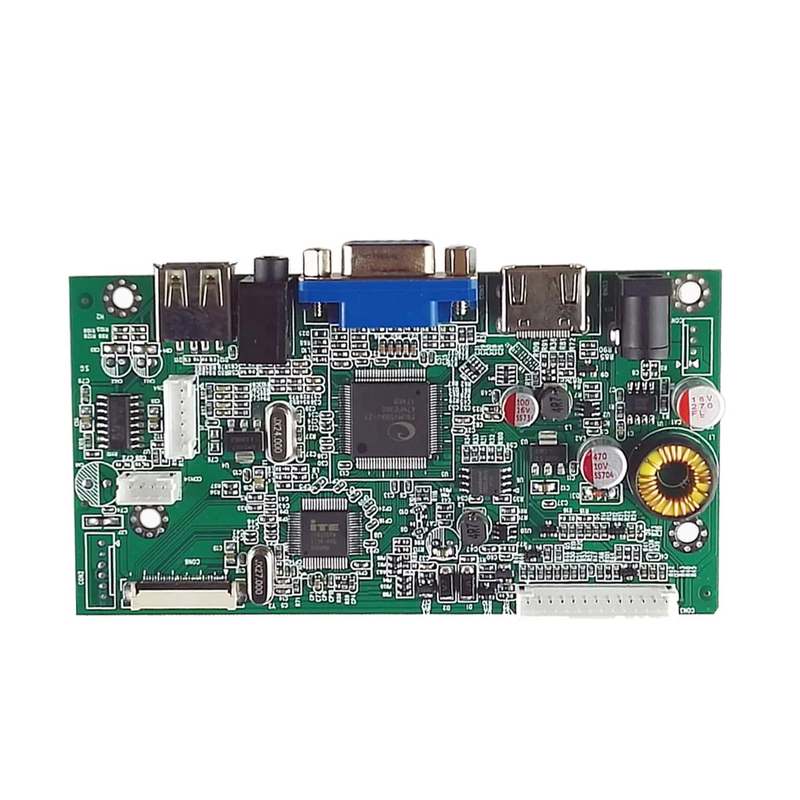

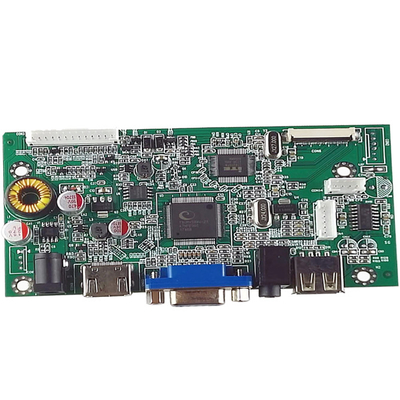

1920x1080 IPS LCD Screen Accessories With VGA AV USB EDP Screen Driver Board
Product Details:
| Place of Origin: | China |
| Brand Name: | YONGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 10000 Unit/Units per Month |
|
Detail Information |
|||
| Product Name: | EDP Screen Driver Board | Display Size: | 10 - 32 Inch |
|---|---|---|---|
| Resolution: | 1920x1080 | Application: | Industrial Application |
| Interface: | EDP | Type: | LCD Monitor Motherboard |
| Screen Voltage: | 3.3V/5V/12V | EDP Output: | Connector |
| High Light: | 1080 IPS LCD Screen Accessories,1920 IPS LCD Screen Accessories,edp screen driver board |
||
Product Description
HD 1080P monitor motherboard TFT LCD EDP screen display driver board with VGA AV USB
Product details :
| Features | parameter |
| HDMI | Resolution: Max 1920x1200 |
| VGA | Resolution: Max 1920x1200 |
| AV(CVBS) | 1.0vp-p |
| Video system | NTSC/PAL/SECAM |
| Audio input | |
| AV audio | L/R Input; 0.2 ~ 2.0 V RMS |
| THD | 1.5~2% |
| S/N | 80 dB |
| Speaker | |
| Frequency Response | Frequency Response 100Hz~15KHz @±3dB (1KHz reference signal) |
| Max output | 2x2.5W(4Ω) |
| Power supply | |
| Working voltage | 11.25~13.25V |
| Panel voltage select | 3.3V/5V/12V |
| Standby consumption | 0.5W ; 10-40mA |
| Other | |
| Key function | Power / Menu / Source / UP / Down / Left / Right |
| Language | English German French Italian Spanish Russian Arabic |
| Storage temerature | -40~85°C |

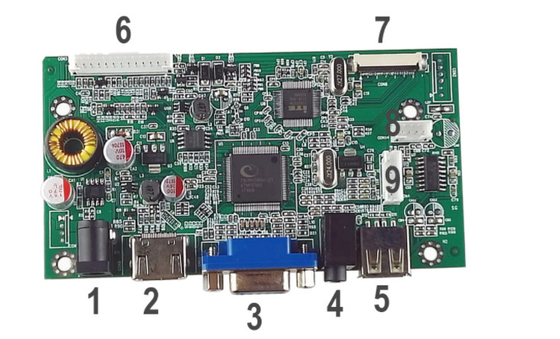

Interface description
| No | Description | No | Description |
| 1 | DC12V input | 2 | HDMI input |
| 3 | VGA input | 4 | audio |
| 5 | USB | 6 | keyboard |
| 7 | EDP LCD Connector | 8 | speaker |
| 9 | 2CH AV input |
