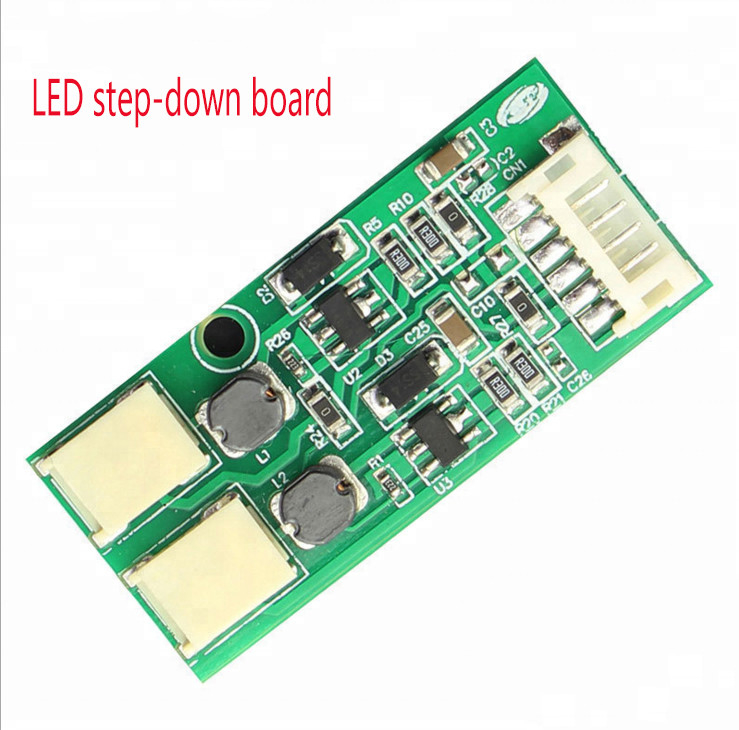

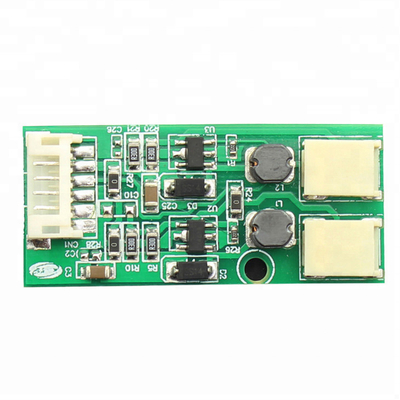

LED Universal Constant Current Board
Product details :
||The voltage requires that the LCD screen backlight is below 20-55v, and the specific output power depends on the screen (automatically match the output power).
||-20 ~ +70℃
||7-24 inch LCD monitor (port matching is normal)
|Light bar interface:
||1 PH2.0-4PIN connector
|1 PH2.0 -2PIN connector
||Only one power cord is provided, and no output cord is provided.
|[General LED constant current board modification instructions]
|1. Connect the power, ground and switch signals required by the booster board to the general LED booster board.

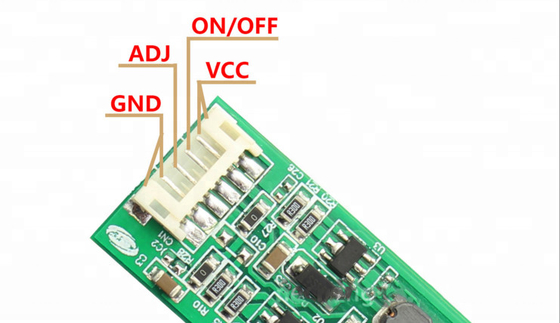

|VCC power supply, ON switch signal, ADJ brightness control, GND ground
|Tip: The same connection method as the LCD high-voltage board
|2. Use a multimeter to measure how many wires are connected to the power supply of the LED light bar, and how many wires are needed; how many negative wires and how many wires are respectively. Regardless of the number of lines, only the positive and negative poles are divided. Those who understand the technology should not have to weigh it, and they can understand the definition by looking at the light bar.
|Example: 10P interface is defined as 3- 4+ 3-
|Tip: The power supply of the LED light bars is the same, and they are all connected together. The number of light bars represents the number of series circuits.
|Example: 3- 4+ 3- (6 series circuits)
||6P*2, 7P*1, 10P*2, 12P*2
|LED Universal Constant Current Board
