10 To 22 Inch LCD Screen Accessories PCBA Circuit Board
Product Details:
Place of Origin: | China |
Brand Name: | YONGS |
Payment & Shipping Terms:
Minimum Order Quantity: | 2 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | Western Union, T/T |
Supply Ability: | 10000 Unit/Units per Month |
Detail Information |
|||
Model: | Golden -2232v | High Voltage Board: | LCD High Voltage Board 10-28v |
---|---|---|---|
Selling Units: | Single Item | Single Package Size: | 12X3X1.16 Cm |
High Light: | 22'' LCD Screen Accessories,pcba LCD Screen Accessories,10'' pcba circuit board |
Product Description

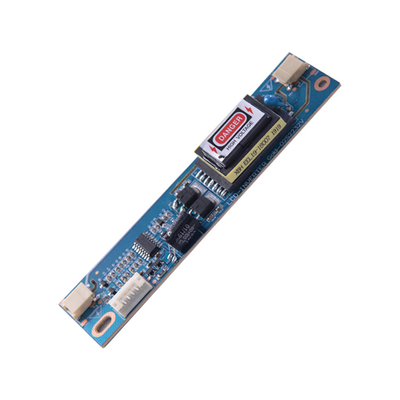

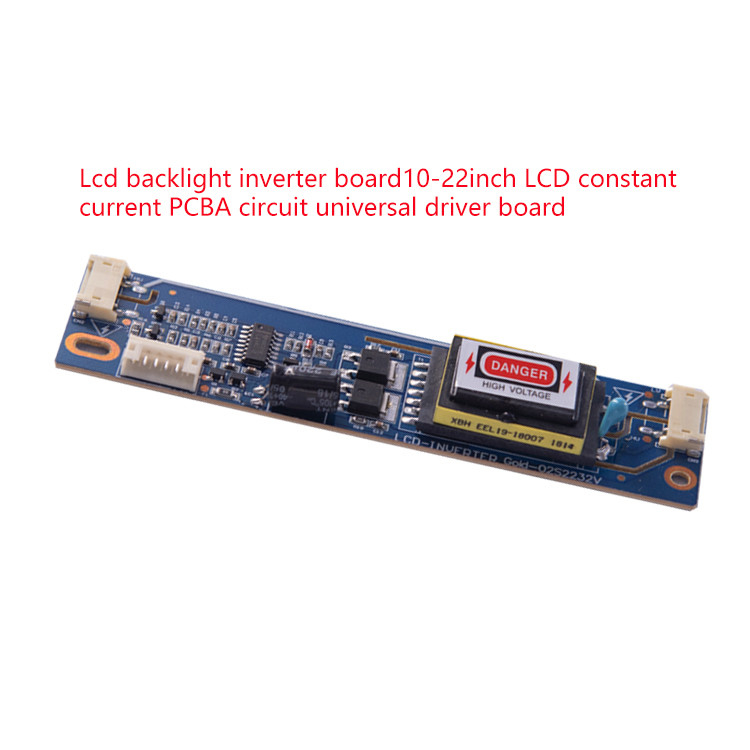

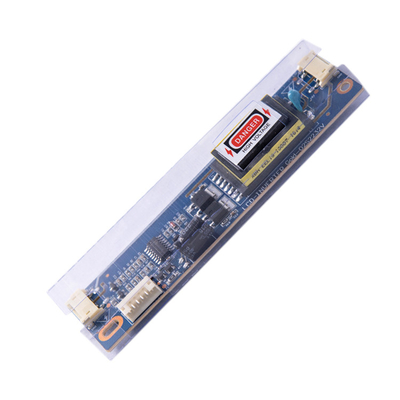

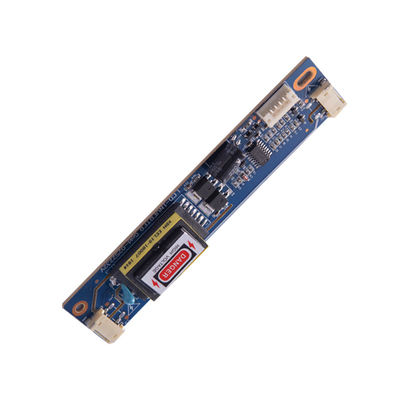

10-22 Inch LCD Constant Current PCBA Circuit Driver Board
Product details :
1. Connect the power, ground, and switch signals required by the boost board to the universal LCD high voltage board. | |
VCC supply, ON switch signal, ADJ brightness control, GND ground | |
Tip: The same connection method as the Led constant current plate | |
size: | 120mm*30mm |
Input voltage: | 10v-28v |
power: | Support 10-22inch display |
Interface definition: | VCC VCC ON ADJ GND GND |
Handsel input interface electronic cable | |
the universal LCD high voltage board must pay attention to the interface definition (positive and negative) points, positive input power supply, do not reverse or wrong. |
Warm reminder: LED connection must pay attention to the interface definition only the positive and negative points, the positive input power supply must not be reversed or connected wrong.
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
