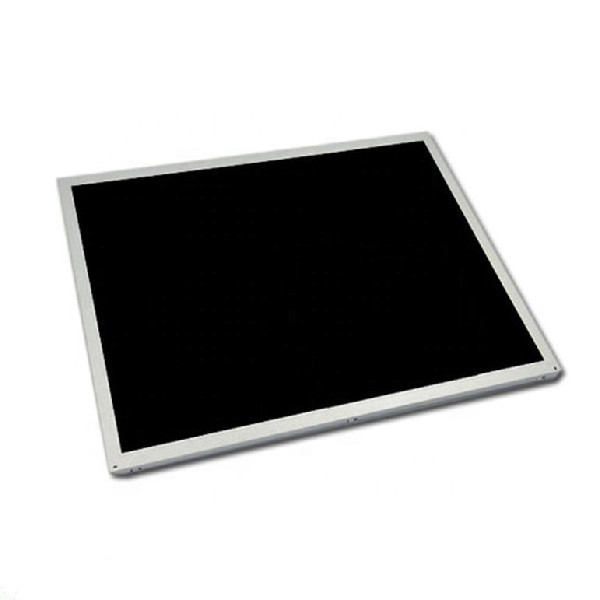

15.6 Inch LCD Touch Panel Display G156HAB02.4 1920x1080 IPS
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G156HAB02.4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G156HAB02.4 |
|---|---|---|---|
| Screen Size: | 15.6 Inches | Resolution: | 1920(RGB)×1080 (FHD) 141PPI |
| Display Size: | 344.16 × 193.59 (H×V) Mm | Physical Dimension: | 361 × 227 × 8 (H×V×D) Mm |
| Brightness(cd/m²): | 400 Cd/m² (Typ.) | Contrast: | 800 : 1 (Typ.) (TM) |
| Touchscreen: | On-Cell Touch | Used For: | Industry |
| High Light: | 15.6'' LCD Touch Panel Display,G156HAB02.4 LCD Touch Panel Display,1080 IPS 15.6 inch lcd screen |
||
Product Description
LCD panel G156HAB02.4 1920*1080 15.6 INCH LCD Touch Panel Display
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| AUO LCD SCREEN G156HAB02.4 | |
| manufacturer | AUO |
| Model Name | G156HAB02.4 |
| screen size | 15.6 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080 (FHD) 141PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 344.16 × 193.59 (H×V) mm |
| physical dimension | 361 × 227 × 8 (H×V×D) mm |
| surface treatment | Hard coating (5H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast | 800: 1 (Typ.) (transmission) |
| Best angle | Full view |
| Optical mode | AHVA, normally black display, transmissive |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| Responding time | 25 (Typ.)(Tr+Td) ms |
| Number of color | 16.2M, 45% NTSC |
| Backlight type | WLED, 50K hours, with LED driver |
| Panel weight | 860g (Max.) |
| Apply to | industry |
| Refresh rate | 60Hz |
| Touch function | On-Cell Touch |
| signal system | eDP (2 Lanes), eDP1.2, connector, 40 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
| LCD panel G156HAB02.4 1920*1080 15.6 INCH LCD Touch Panel Display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Can You declare my order of G156HAB02.4 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods G156HAB02.4 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of G156HAB02.4 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of G156HAB02.4 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
We are one of the professional and experienced suppliers of LCD panel G156HAB02.4 1920*1080 15.6 INCH LCD Touch Panel Display, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
