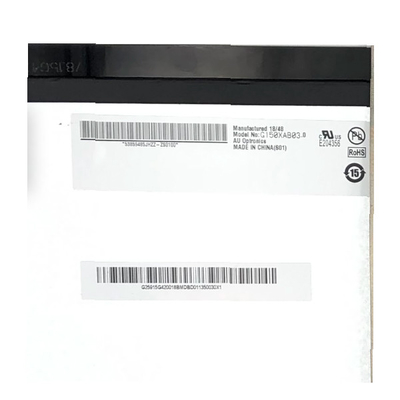

G150XAB03.0 15'' LCD Touch Panel Display 1024×768 IPS
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G150XAB03.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G150XAB03.0 |
|---|---|---|---|
| Screen Size: | 15.0 Inches | Resolution: | 1024(RGB)×768 XGA 85PPI |
| Display Size: | 304.128(Horizontal)×228.096(Vertical) Mm | Physical Dimension: | 320.12(Horizontal)×258.4(Vertical) ×8.3(Thick) Mm |
| Brightness(cd/m²): | 400 Cd/m² (Typ.) | Contrast: | 1000 : 1 (Typ.) (TM) |
| Touchscreen: | On-Cell Touch | Used For: | Industry |
| High Light: | G150XAB03.0 LCD Touch Panel Display,G150XAB03.0 15'' LCD Touch Panel Display,G150XAB03.0 768 IPS 15 lcd panel |
||
Product Description
15.0 inch LCD panel G150XAB03.0 LCD Touch Panel Display
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| AUO LCD SCREEN G150XAB03.0 | |
| manufacturer | AUO |
| Model Name | G150XAB03.0 |
| screen size | 15.0 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 1024(RGB)×768 XGA 85PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 304.128(Horizontal)×228.096(Vertical) mm |
| physical dimension | 320.12(Horizontal)×258.4(Vertical) ×8.3(Thick) mm |
| surface treatment | Mirror (Haze 0%) |
| Brightness | 400cd/m² (Typ.) |
| Contrast | 1000:1 (Typ.) (TM) |
| Best angle | Full view |
| Optical mode | AHVA, normally black display, transmissive |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| Responding time | 25 (Typ.)(Tr+Td) ms |
| Number of color | 16.2M, 60% NTSC |
| Backlight type | WLED , 50K hours , With LED Driver |
| Panel weight | 980g (Max.) |
| Apply to | industry |
| Refresh rate | 60Hz |
| Touch function | On-Cell Touch |
| signal system | 40 pins eDP (1 Lane), connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Working temperature: -20 ~ 70 °C; Storage temperature: -20 ~ 70 °C |
| 15.0 inch LCD panel G150XAB03.0 LCD Touch Panel Display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Can you give me a discount if I need a large quantity of G150XAB03.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods G150XAB03.0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can You declare my order of G150XAB03.0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of G150XAB03.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
We are one of the professional and experienced suppliers of 15.0 inch LCD panel G150XAB03.0 LCD Touch Panel Display, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
