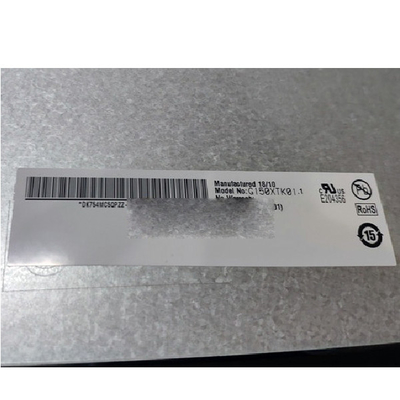

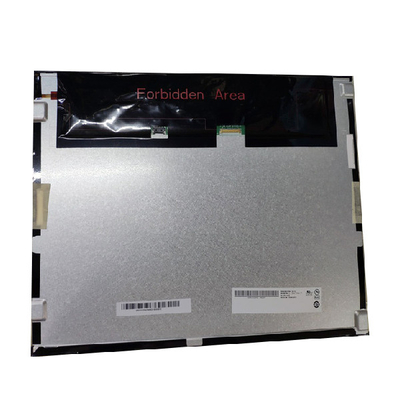

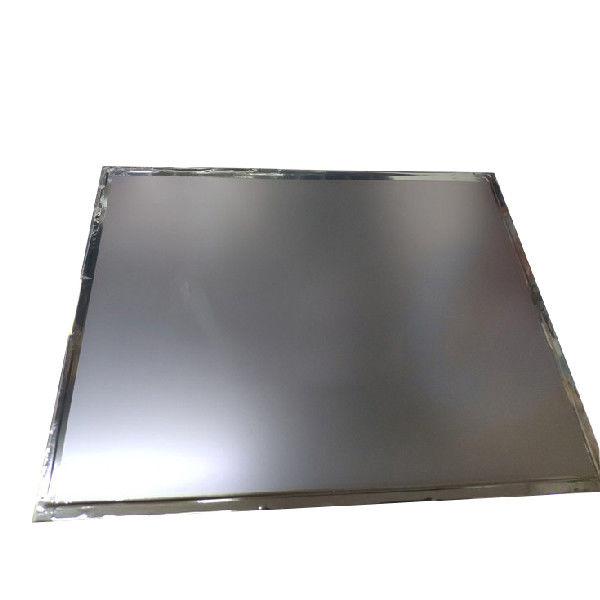

15 Inch TFT LCD Touch Panel Display G150XTK01.1 1024x768 IPS
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G150XTK01.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G150XTK01.1 |
|---|---|---|---|
| Screen Size: | 15.0 Inch | Resolution: | 1024(RGB)×768, XGA, 85PPI |
| Display Size: | 304.128(W)×228.096(H) Mm | Physical Dimension: | 326.5(width)×253.5(height) ×10(thickness) Mm |
| Visual Size: | 307.4(W)×231.3(H) Mm | Brightness(cd/m²): | 350cd/m² (Typ.) |
| Contrast: | 700:1 (Typ.) (TM) | Touchscreen: | On-Cell Touch |
| High Light: | 15'' tft lcd touch screen display,G150XTK01.1 tft lcd touch screen display,768 IPS 15 inch lcd display panel |
||
Product Description
Lcd Monitors 15 inch G150XTK01.1 1024x768 TFT LCD Touch Panel Display
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| AUO LCD SCREEN G150XTK01.1 | |
| manufacturer | AUO |
| Model Name | G150XTK01.1 |
| screen size | 15.0 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768, XGA, 85PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 304.128(W)×228.096(H) mm |
| physical dimension | 326.5(width)×253.5(height) ×10(thickness) mm |
| Visual size | 307.4(W)×231.3(H) mm |
| surface treatment | Matte |
| Brightness | 350cd/m² (Typ.) |
| Contrast | 700:1 (Typ.) (TM) |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 80/80/70/80 (Typ.)(CR≥10) |
| Responding time | 5.7/2.3 (Typ.)(Tr/Td) ms |
| Number of color | 16.2M, 60% NTSC |
| Backlight type | WLED, 70K hours, with LED driver |
| Panel weight | TBD |
| Apply to | industry |
| Refresh rate | 60Hz |
| Touch function | On-Cell Touch |
| signal system | eDP (1 Lane), eDP1.2, 30 pins, connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Working: -30 ~ 85 °C; Storage: -30 ~ 85 °C |
| Lcd Monitors 15 inch G150XTK01.1 1024x768 TFT LCD Touch Panel Display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Can you give me a discount if I need a large quantity of G150XTK01.1?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of G150XTK01.1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: If I place order now,when will you ship the goods of G150XTK01.1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How to make payment of G150XTK01.1 ?
A: We accept T/T , Paypal , western union .
We are one of the professional and experienced suppliers of Lcd Monitors 15 inch G150XTK01.1 1024x768 TFT LCD Touch Panel Display, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
