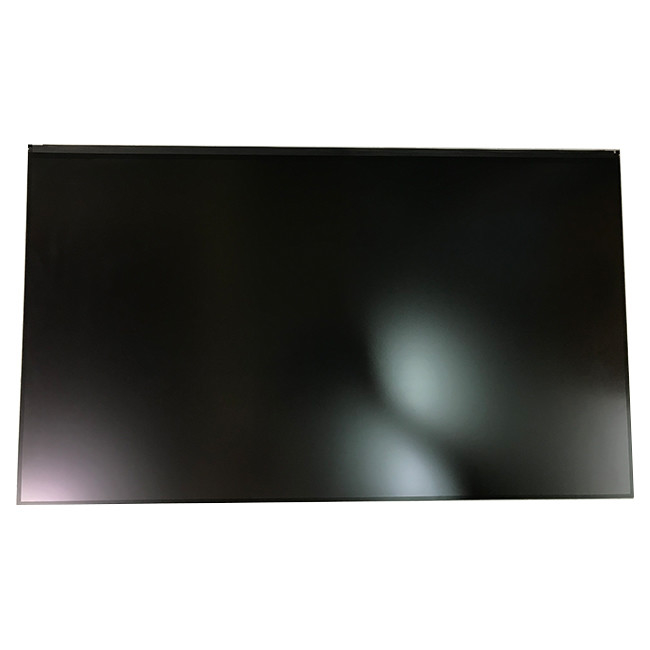

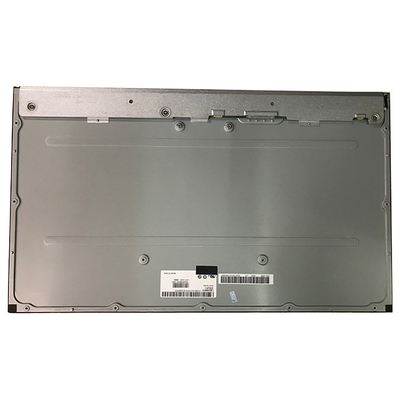

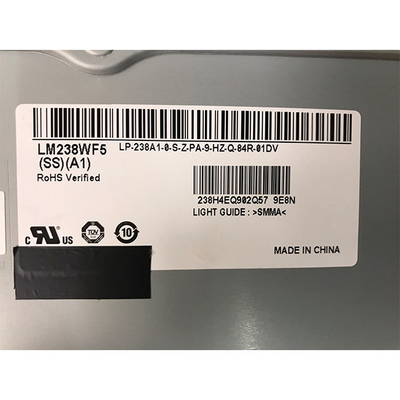

LM238WF5-SSA1 LG 23.8'' LCD Touch Panel Display 60Hz
Product Details:
Place of Origin: | CHINA |
Brand Name: | LG Display |
Model Number: | LM238WF5-SSA1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Manufacturer: | LG Display | Model Name: | LM238WF5-SSA1 |
---|---|---|---|
Screen Size: | 23.8 Inches | Resolution: | 1920(RGB)×1080 [FHD] 92PPI |
Display Size: | 527.04 × 296.46 Mm (H×V) | Physical Dimension: | 535.24 × 313.18 × 12.76 Mm (H×V×D) |
Brightness(cd/m²): | 250 (Typ.) | Contrast: | 1000: 1 (Typ.) [Transmission] |
Touchscreen: | In-Cell Touch | Used For: | Computer Monitor |
High Light: | LM238WF5-SSA1 LCD Touch Panel Display,23.8'' LCD Touch Panel Display,60Hz display tft lcd |
Product Description
LM238WF5-SSA1 LG 23.8 inch LCD Touch Panel Display
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
LG Display LCD SCREEN LM238WF5-SSA1 | |
Manufacturer | LG Display |
Model Name | LM238WF5-SSA1 |
Screen Size | 23.8" |
Screen type | LCM, a-Si TFT-LCD |
Resolution | 1920(RGB)×1080 [FHD] 92PPI |
Pixel configuration | RGB vertical bar |
Display size | 527.04 × 296.46 mm (H×V) |
physical dimension | 535.24 × 313.18 × 12.76 mm (H×V×D) |
Surface treatment | Matte, Hard coating (3H) |
Brightness (cd/m2) | 250 (Typ.) |
Contrast | 1000: 1 (Typ.) [Transmission] |
Best angle | Full view |
Optical mode | IPS, normally black display, transmissive |
Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
responding speed | 14 (Typ.)(G to G) ms |
Number of colors | 16.7M, 72% NTSC |
Backlight type | WLED, 30K hours, no driver |
Screen weight | 1.92/2.01Kgs (Typ./Max.) |
Refresh rate | 60Hz |
signal system | LVDS (2 ch, 8-bit), connector, 30 pins |
Supply voltag | 5.0V (Typ.) |
Maximum rating | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
LM238WF5-SSA1 LG 23.8 inch LCD Touch Panel Display |
