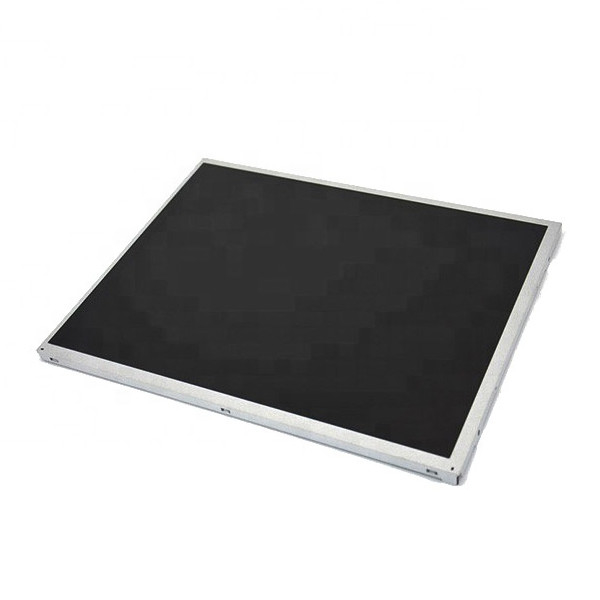

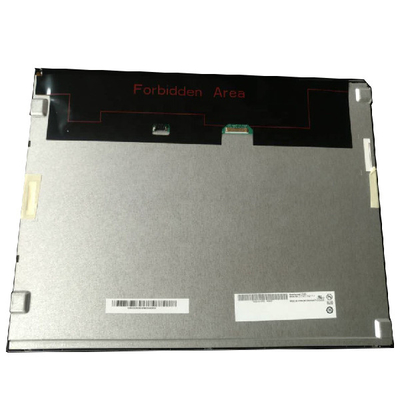

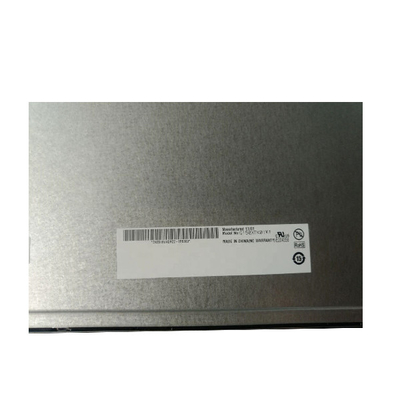

G150XTK01.0 1024x768 iPS TFT 15 Inch LCD Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G150XTK01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G150XTK01.0 |
|---|---|---|---|
| Screen Size: | 15.0 Inches | Resolution: | 1024(RGB)×768, XGA, 85PPI |
| Display Size: | 304.128(W)×228.096(H) Mm | Bezel Opening: | 314.2(W)×237.7(H) Mm |
| Physical Dimension: | 326.5(W)×253.5(H) ×10(D) Mm | Brightness(cd/m²): | 390 Cd/m² (Typ.) |
| Contrast: | 700 : 1 (Min.) (TM) | Weight: | 1.15Kgs (Max.) |
| Touchscreen: | On-Cell Touch | Used For: | Laptop |
| High Light: | TFT 15 Inch LCD Display,768 IPS G150XTK01.0 15 inch lcd display,768 IPS 15 inch lcd panel |
||
Product Description
Lcd Monitors 15 inch G150XTK01.0 1024x768 TFT LCD Touch Panel Display
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| AUO LCD SCREEN G150XTK01.0 | |
| Panel Brand | AUO |
| Panel Model | G150XTK01.0 |
| Panel Size | 15.0 inch |
| Panel Type | LCM , a-Si TFT-LCD |
| Resolution | 1024(RGB)×768, XGA, 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 314.2(W)×237.7(H) mm |
| Outline Size | 326.5(W)×253.5(H) ×10(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 390 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 5.7/2.3 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.2M 60% NTSC |
| Lamp Type | WLED , 70K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | On-Cell Touch |
| Weight | 1.15Kgs (Max.) |
| Application | Industrial |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
|
Lcd Monitors 15 inch G150XTK01.0 1024x768 TFT LCD Touch Panel Display |
|
