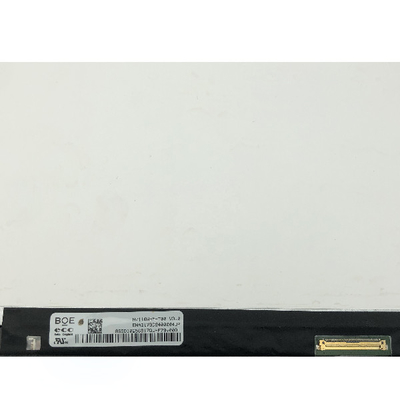

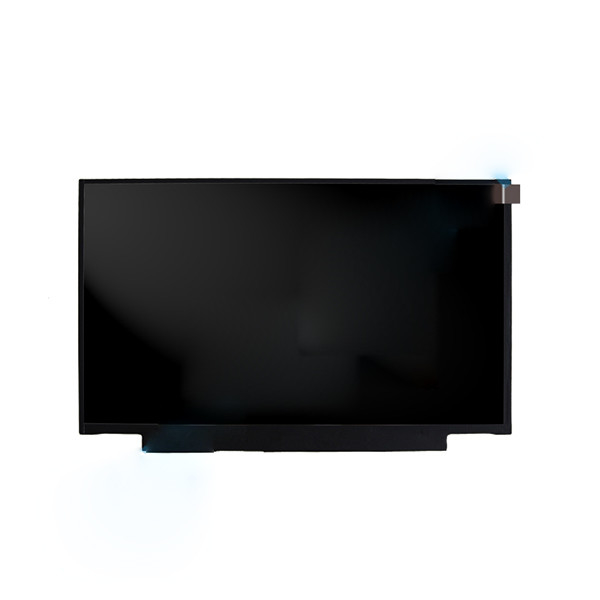

NV116WHM-T00 Laptop LCD Touch Panel Display 11.6'' For Lenovo
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | BOE |
| Model Number: | NV116WHM-T00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Payment Terms: | T/T, Western Union |
|
Detail Information |
|||
| Manufacturer: | BOE | Model Name: | NV116WHM-T00 (BOE0770) |
|---|---|---|---|
| Screen Size: | 11.6 Inches | Resolution: | 1366(RGB)×768 (WXGA) 135PPI |
| Display Size: | 256.125 × 144 (H×V) | Physical Dimension: | 268 × 168 × 3.2 (H×V×D) |
| Brightness(cd/m²): | 250 Cd/m² (Typ.) | Contrast: | 1200 : 1 (Min.) (TM) |
| Touchscreen: | On-Cell Touch | Used For: | Laptop |
| High Light: | Laptop LCD Touch Panel Display,NV116WHM-T00 LCD Touch Panel Display,11.6'' laptop screen digitizer |
||
Product Description
NV116WHM-T00 Laptop LCD Touch Panel Display LCD Module LCD Digitizer Assembly for Lenovo
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| BOE LCD SCREEN NV116WHM-T00 (BOE0770) | |
| Manufacturer | BOE |
| Model Name | NV116WHM-T00 (BOE0770) |
| Screen Size | 11.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768 (WXGA) 135PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 256.125 × 144 (H×V) |
| Outline(mm) | 268 × 168 × 3.2 (H×V×D) |
| Treatment | Glare (Haze 0%) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1200 : 1 (Min.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 262K 51% NTSC |
| Backlight | 8S3P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | On-Cell Touch |
| Signal Type | eDP (1 Lane) , Connector 40 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| NV116WHM-T00 Laptop LCD Touch Panel Display LCD Module LCD Digitizer Assembly for Lenovo | |
