BOE LCD Touch Panel Display NT156FHM-T00 15.6 Inch 1920x1080 IPS TN
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | BOE |
| Model Number: | NT156FHM-T00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Payment Terms: | T/T, Western Union |
|
Detail Information |
|||
| Manufacturer: | BOE | Model Name: | NT156FHM-T00 (BOE06ED) |
|---|---|---|---|
| Screen Size: | 15.6 Inches | Resolution: | 1920(RGB)×1080 (FHD) 141PPI |
| Display Size: | 344.16 × 193.59 (H×V) | Physical Dimension: | 359.5 × 223.8 × 3.2 (H×V×D) |
| Brightness(cd/m²): | 220 (Typ.) | Contrast: | 500:1 (Typ.) (transmission) |
| Touchscreen: | On-Cell Touch | Used For: | Laptop |
| High Light: | NT156FHM-T00 LCD Touch Panel Display,BOE LCD Touch Panel Display,1080 IPS laptop screen panel |
||
Product Description
NT156FHM-T00 for BOE 15.6 inch 1920*1080 TN LCD Touch Panel Display
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| BOE LCD SCREEN NT156FHM-T00 (BOE06ED) | |
| Manufacturer | BOE |
| Model Name | NT156FHM-T00 (BOE06ED) |
| Screen Size | 15.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm) | 359.5 × 223.8 × 3.2 (H×V×D) |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Min.) (TM) |
| Viewing Angle | 45/45/15/40 (Typ.)(CR≥10) |
| Response | 12 (Typ.)(G to G) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | 9S4P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | On-Cell Touch |

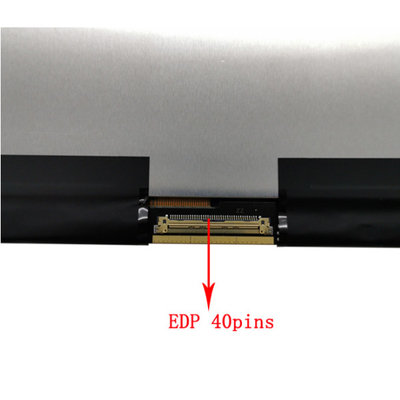

| Signal Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| NT156FHM-T00 for BOE 15.6 inch 1920*1080 TN LCD Touch Panel Display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Do you accept sample orders of NT156FHM-T00 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of NT156FHM-T00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of NT156FHM-T00 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of NT156FHM-T00 ?
A: we will give you tracking number then you can trace your order from website.
We are one of the professional and experienced suppliers of NT156FHM-T00 for BOE 15.6 inch 1920*1080 TN LCD Touch Panel Display, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
